1982 Yamaha XT550 (XT550J) Cylinder Head Diagram

← All diagrams

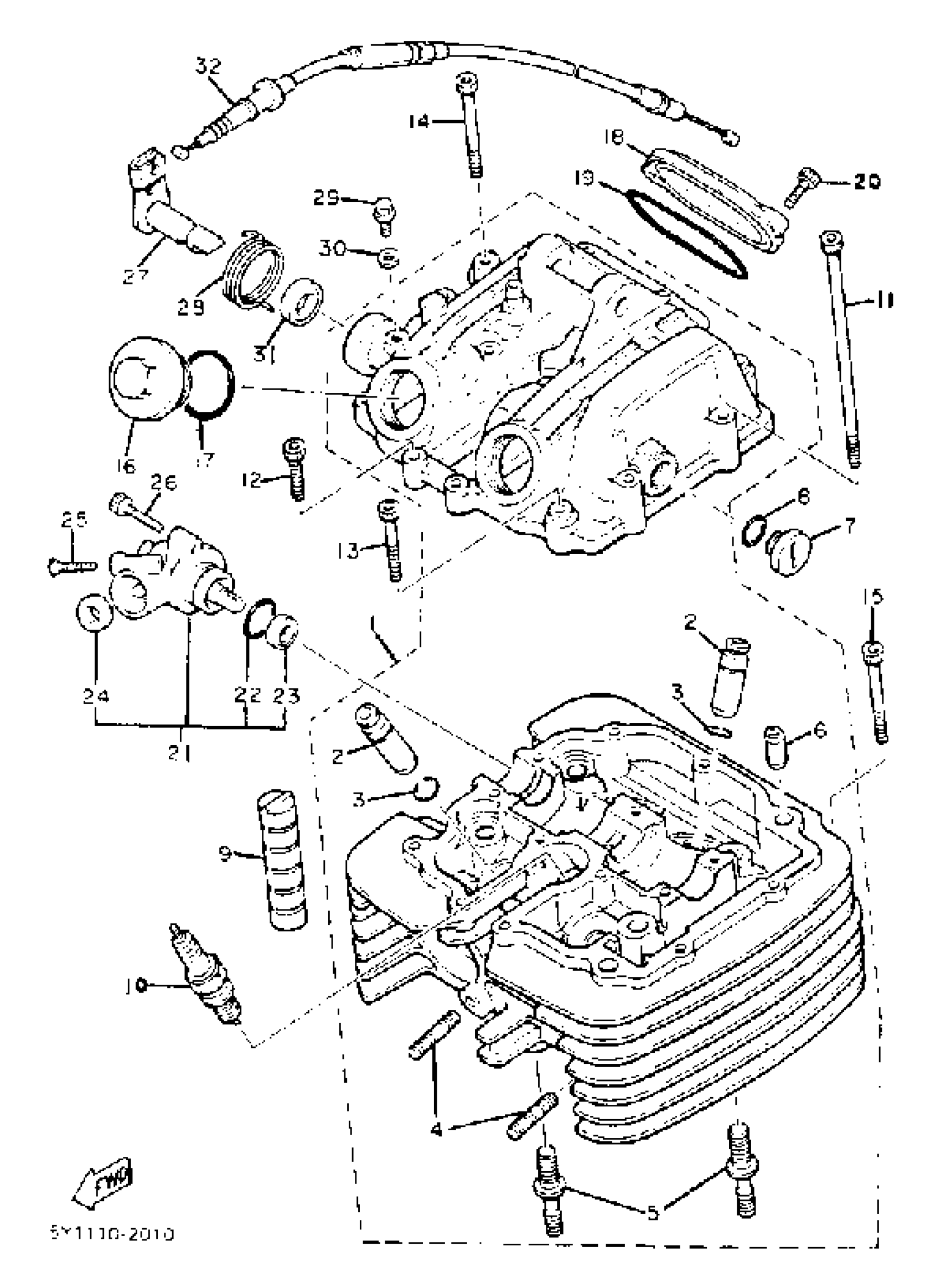

Find the part on the Cylinder Head diagram for your 1982 Yamaha XT550 (XT550J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT550 (XT550J) Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD ASSEMBLY

5Y1-11101-03-00

1
Out of stock

2

GUIDE, INTAKE VALVE

4H7-11133-11-00

1

$65.20

In stock

3

CIRCLIP (1L9)

93440-12052-00

1

$1.75

In stock

4

BOLT, STUD(1JK)

90116-06475-00

1

$6.85

In stock

5

. BOLT, STUD

90116-10378-00

1
Out of stock

6

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

7

—

$16.62

In stock

8

O-RING (2H9)

93210-14369-00

1

$5.80

In stock

9

ABSORBER

583-11127-00-00

1

$6.72

In stock

10

D7EA NGK SPLUG 10PK

D7E-A0000-00-00

1

$4.20

In stock

11

BOLT, SOCKET

91317-06125-00

1

$16.22

In stock

12

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

13

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

14

BOLT,SOCKET

91317-06055-00

1

$3.57

In stock

15

BOLT,SOCKET

91317-06050-00

1

$3.37

In stock

16

PLUG, VIEWER

1H2-11186-00-00

—

$37.15

In stock

17

O-RING (341)

93210-32172-00

—

$5.78

In stock

18

COVER, CYLINDER HEAD SIDE 3

5Y1-11187-00-00

—
Out of stock

19

O-RING (4X7)

93210-62446-00

—

$10.23

In stock

20

BOLT,SOCKET

91317-06018-00

—

$6.17

In stock

21

GEAR UNIT ASSY, TACHO. DRIVE

3YF-17800-00-00

1
Out of stock

22

O-RING (5Y1)

93210-19522-00

—

$5.86

In stock

23

OIL SEAL (5Y1)

93102-11262-00

—
Out of stock

24

OIL SEAL (5Y1)

93102-07261-00

—
Out of stock

25

SCREW, FLAT

98707-06030-00

—

$6.08

In stock

26

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

27

CAM, DECOMPRESSION

1JK-12288-00-00

1
Out of stock

28

SPRING, TORSION (5Y1)

90508-18551-00

—
Out of stock

29

BOLT (583 TACHOMETER)

90109-06418-00

—
Out of stock

30

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

31

SEAL, OIL (30X)

93102-12321-00

—

$10.14

In stock

32

CABLE, DECOMP.

5Y1-12292-00-00

—

$58.43

In stock
