1982 Yamaha XT550 (XT550J) Carburetor Diagram

← All diagrams

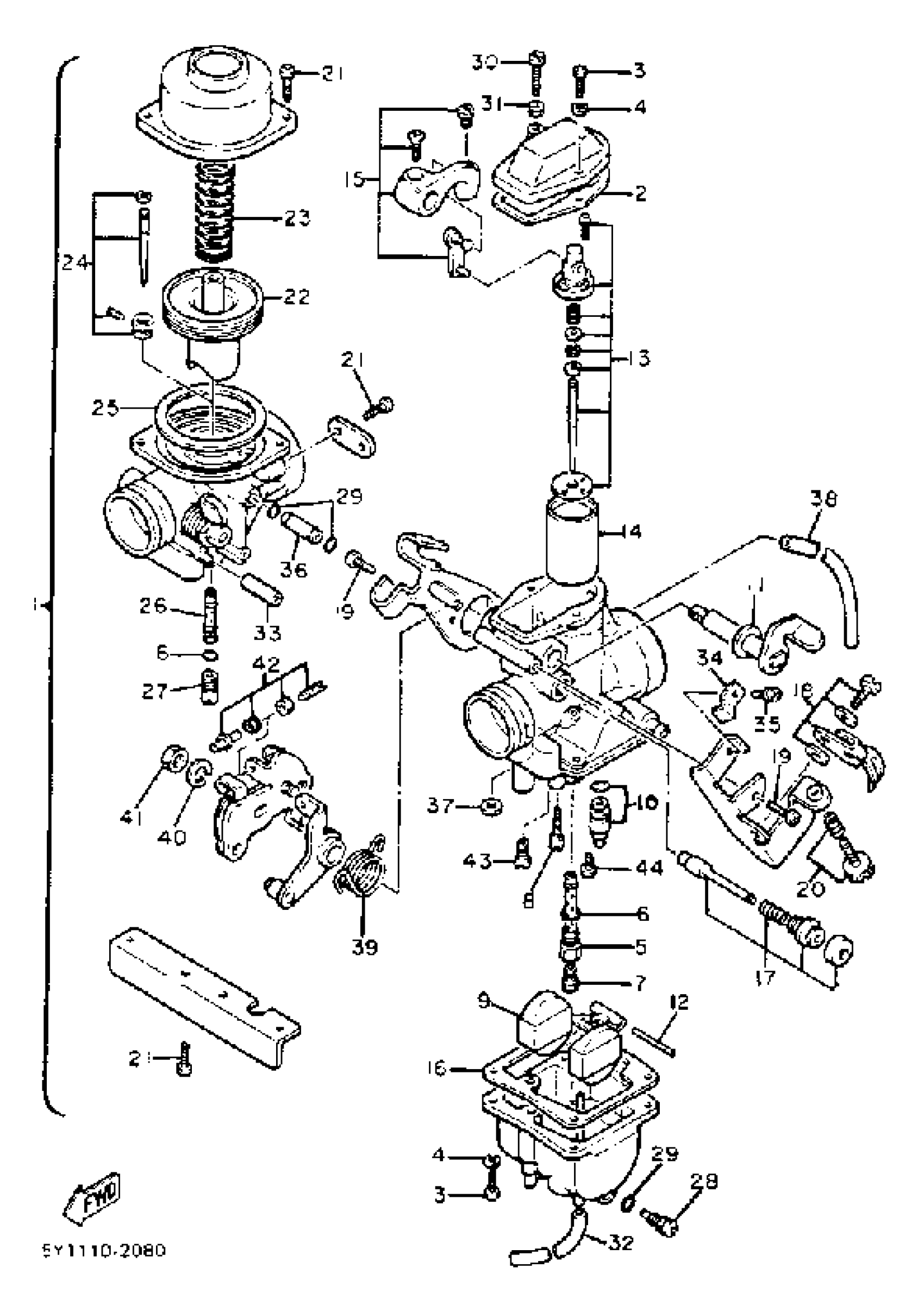

Find the part on the Carburetor diagram for your 1982 Yamaha XT550 (XT550J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT550 (XT550J) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASY 1

5Y1-14301-04-00

1
Out of stock

2

GASKET

5Y1-14198-00-00

1

$6.62

In stock

3

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

4

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

5

. NOZZLE, MAIN

5Y1-14341-26-00

1
Out of stock

6

GASKET

360-24512-00-00

1

$8.52

In stock

7

JET, MAIN (# 130)

288-14343-65-00

1

$9.78

In stock

8

. JET, PILOT #42 (#042)

396-14342-22-00

1
Out of stock

9

FLOAT

5Y1-14385-00-00

1
Out of stock

10

NEEDLE VALVE SET

1JK-14107-01-00

1
Out of stock

11

. WASHER, PLAIN

5Y1-14357-00-00

1
Out of stock

12

. PIN, FLOAT

6E5-14386-01-00

1

$5.34

In stock

13

. NEEDLE SET

5Y1-1490J-10-00

1
Out of stock

14

VALVE, THROTTLE 1

(5Y1-14312-45-00)

1
Out of stock

15

. CABLE CONNECT SET

5Y1-14203-00-00

1
Out of stock

16

GASKET, FLOAT CHAMBER

5Y1-14384-00-00

—

$21.11

In stock

17

. STARTER SET

5Y1-1410A-00-00

1
Out of stock

18

. LEVER CMPLT 2

5Y1-14209-00-00

1
Out of stock

19

SCREW, PAN HEAD (E56)

98580-04010-00

—

$6.17

In stock

20

. THROTTLE SCREW SET

5Y1-14103-00-00

1
Out of stock

21

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

22

. VALVE ASSEMBLY

5Y1-14340-00-00

1
Out of stock

23

. SPRING

5Y1-14286-00-00

1
Out of stock

24

. NEEDLE SET

5Y1-1490J-00-00

1
Out of stock

25

GASKET

5Y1-14398-00-00

—
Out of stock

26

. NOZZLE, MAIN

5Y1-14355-00-00

1
Out of stock

27

. SCREW

5Y1-14567-00-00

1
Out of stock

28

PLUG, SCREW

5Y1-14115-00-00

—

$35.05

In stock

29

O-RING

5Y1-14397-00-00

—
Out of stock

30

. SCREW, PAN HEAD

98580-04020-00

1

$5.34

In stock

31

NUT(6L4)

95380-04700-00

—

$5.62

In stock

32

PIPE

5Y1-14396-00-00

—

$3.89

In stock

33

PIPE

5Y1-14349-00-00

—
Out of stock

34

. STOPPER

5Y1-14377-00-00

1
Out of stock

35

SCREW

677-24444-09-00

1
Out of stock

36

. PIPE 1

5Y1-14348-00-00

1
Out of stock

37

GASKET

5Y1-14536-00-00

—

$5.05

In stock

38

PIPE

5Y1-14197-00-00

—

$5.98

In stock

39

. SPRING, THRTL VALVE

5Y1-14131-00-00

1
Out of stock

40

. WASHER, SPRING

5Y1-14356-00-00

1
Out of stock

41

. NUT

5Y1-14358-00-00

1
Out of stock

42

. STOP SCREW SET

5Y1-1490K-00-00

1
Out of stock

43

JET, MAIN #124

(396-14343-62-00)

1
Out of stock

44

SCREW, BIND(6L2)

98980-04006-00

1

$4.89

In stock
