1982 Yamaha XT550 (XT550J) Cylinder Diagram

← All diagrams

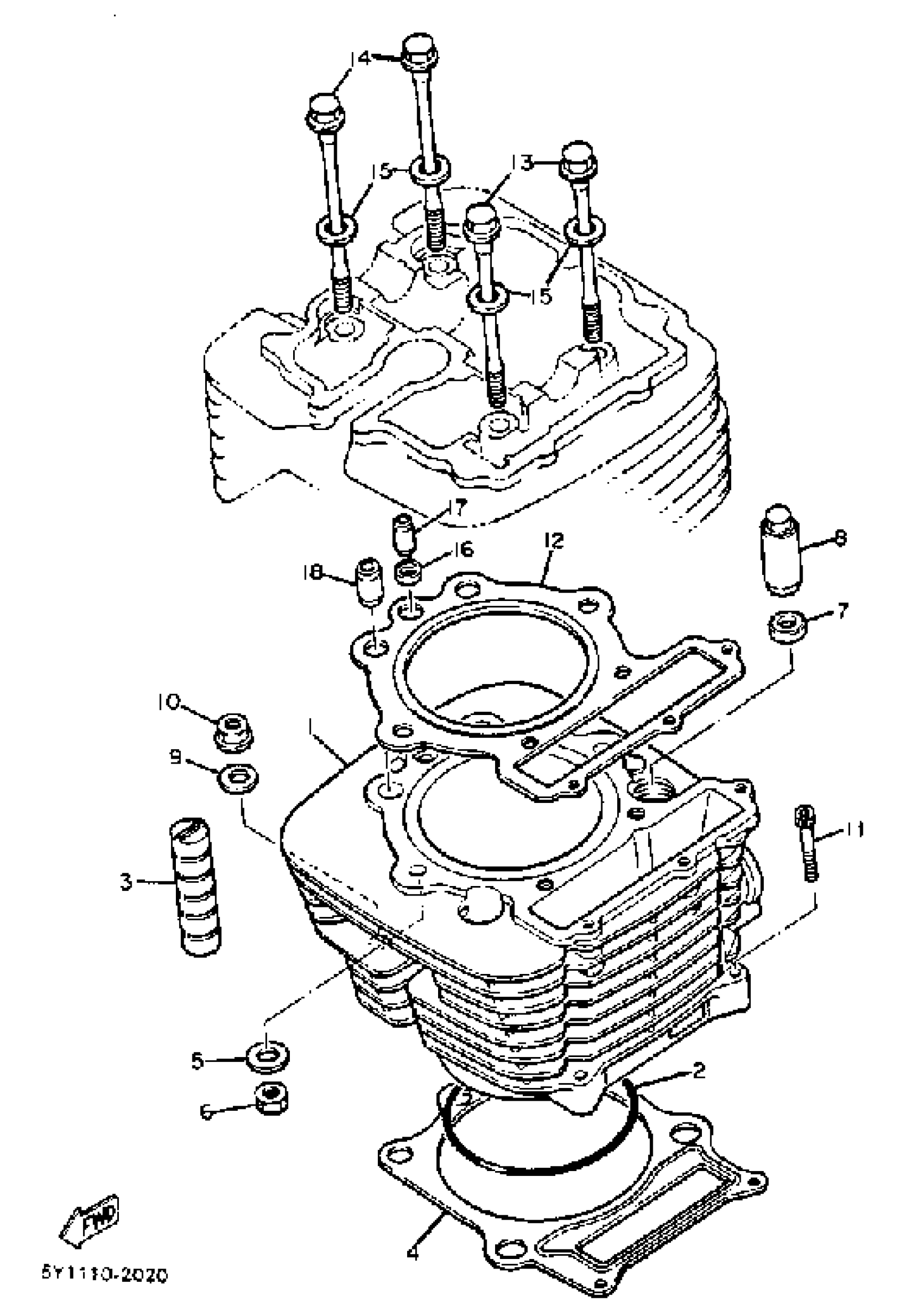

Find the part on the Cylinder diagram for your 1982 Yamaha XT550 (XT550J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT550 (XT550J) Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER

5Y1-11310-00-00

1
Out of stock

2

O-RING (5Y1)

93210-97524-00

1

$14.69

In stock

3

ABSORBER

583-11127-00-00

1

$6.72

In stock

4

GASKET, CYLINDER

1VJ-11351-00-00

—

$24.63

In stock

5

WASHER, PLATE (33N)

90201-094G1-00

1

$6.98

In stock

6

NUT(6L2)

95333-08600-00

1

$3.20

In stock

7

WASHER, PLATE (583)

90201-10590-00

1

$4.95

In stock

8

NUT

90179-10021-00

1

$21.54

In stock

9

WASHER, PLATE 3711117500

90201-10124-00

1

$6.58

In stock

10

NUT (2Y5)

90179-10279-00

1

$6.09

In stock

11

1

$3.82

In stock

12

GASKET, CYLINDER HEAD 1

5Y1-11181-00-00

1
Out of stock

13

BOLT, WASHER BASED

90105-08464-00

1
Out of stock

14

BOLT,WASHER BASED

90105-08465-00

1
Out of stock

15

WASHER, PLATE

90201-080L7-00

1

$3.42

In stock

16

GASKET (5Y1)

90430-08178-00

—

$4.83

In stock

17

PIN, DOWEL(3XW)

91808-16023-00

—

$5.48

In stock

18

PIN, DOWEL(3VD)

99530-10114-00

—

$2.23

In stock
