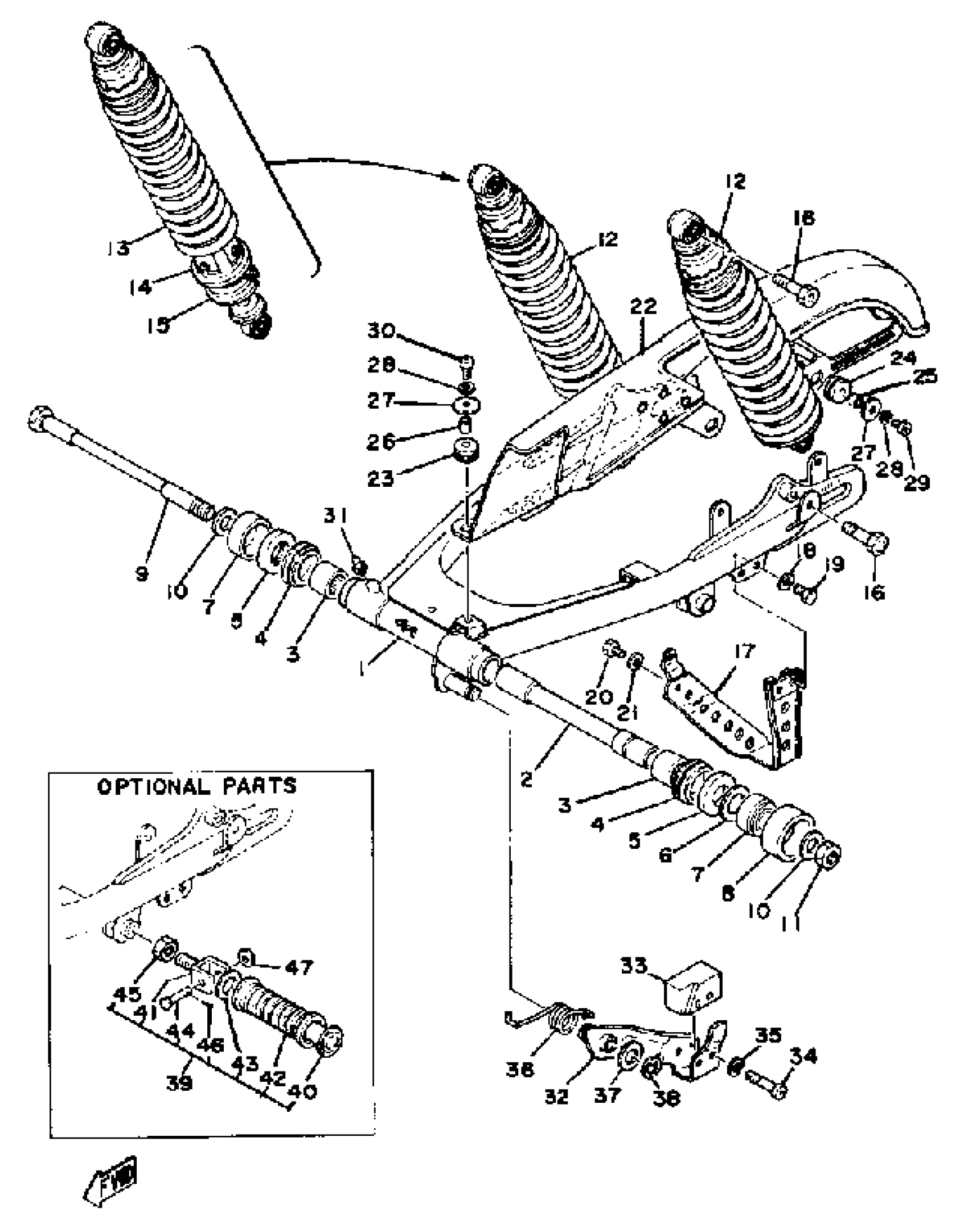

Yamaha XT500E (XT500) 1978 SWING ARM - REAR SHOCKS Diagram

#

Description
Price

1

REAR ARM

(1U6-22110-00-33)

Unavailable

2

BUSH 2

483-22124-00-00

Unavailable

3

BRG,CYL-CAL ROLLER 28.5G NT

93317-22208-00

$37.78

4

OIL SEAL (35X41.5X8-483)

93108-35004-00

$11.73

5

BEARING, THRUST

93342-22205-00

$57.05

6

WASHER, PLATE

90201-22284-04

Unavailable

7

COVER, THRUST 2

2K8-22129-00-00

$31.11

8

SEAL, GUARD

431-22151-03-00

$20.90

9

SHAFT, PIVOT

583-22141-01-00

Unavailable

10

WASHER (517 CLUTCH)

90208-16019-00

$5.75

11

NUT, U (6TD)

95617-16100-00

$20.39

12

SHOCK ABSORBER ASSY, REAR

3H7-22210-00-00

$480.92

13

SPRING

(1T1-22212-00-00)

Unavailable

14

. COVER

1T1-22211-00-00

Unavailable

15

. GUIDE, SPRING 1

583-22214-00-00

Unavailable

16

BOLT (583 REAR CUSHION)

90109-10420-00

Unavailable

17

GUARD, CHAIN

1U6-22318-00-33

Unavailable

18

WASHER, SPRING

92995-06100-00

$2.95

19

BOLT, HEXAGON

97017-06020-00

Unavailable

20

BOLT(JA9)

90101-08691-00

Unavailable

21

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

22

CASE, CHAIN

1U6-22311-00-00

Unavailable

23

GROMMET

90480-12529-00

$1.63

24

GROMMET (1U6)

90480-08216-00

Unavailable

25

SPACER

90560-05001-00

$2.58

26

COLLAR (3L6)

90387-06761-00

Unavailable

27

WASHER, PLATE

90201-06747-00

Unavailable

28

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

29

SCREW, PAN HEAD(6B0)

97885-05016-00

$4.09

30

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

31

NIPPLE, GREASE

93700-06M03-00

$7.40

32

ARM, TENSIONER

1T1-22179-02-00

Unavailable

33

TENSIONER

1T1-22178-01-00

Unavailable

34

SCREW, PAN

98507-05040-00

Unavailable

35

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

36

SPRING, TORSION

90508-32333-00

Unavailable

37

WASHER, PLAIN (434)

90201-14411-00

Unavailable

38

CIRCLIP (137)

93430-10015-00

Unavailable

39

REAR FOOTREST ASSY

120-27430-02-00

Unavailable

40

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

41

. BRACKET 1

120-27432-02-00

Unavailable

42

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

43

WASHER, PLATE (888)

90201-20279-00

Unavailable

44

PIN, CLEVIS

(90240-06052-00)

Unavailable

45

NUT, HEXAGON SMALL

95317-12700-00

Unavailable

46

PIN, COTTER

91490-16020-00

$5.74

47

WASHER, PLATE

90201-06049-00

$3.14
