- XT500E (XT500) 1978
FRONT WHEEL

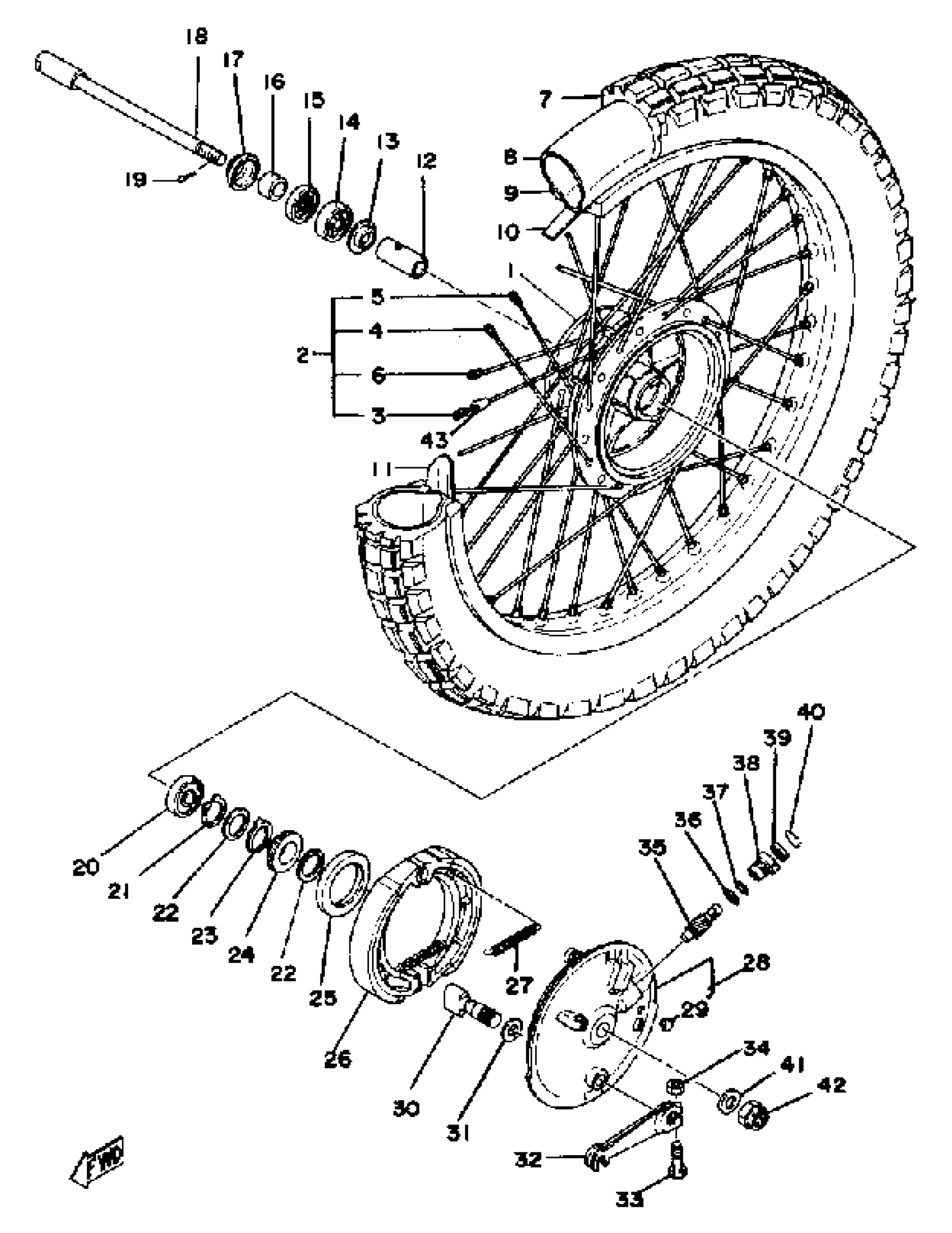

1978 Yamaha XT500 (XT500E) Front Wheel Diagram
Find the part on the Front Wheel diagram for your 1978 Yamaha XT500 (XT500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
HUB, FRONT
1E6-25111-00-98
2
SPOKE SET, FRONT
1E6-25104-01-00
3
SPOKE SET, INNER 1
(1E6-25196-91-00)
4
SPOKE SET, OUTER 1
(1E6-25197-91-00)
5
SPOKE SET, INNER 2
(1E6-25179-91-00)
6
SPOKE SET, OUTER 2
(1E6-25189-91-00)
7
300X21 BS TW5A
(94130-21350-00)
9
RIM 1.60X21
94416-21326-00
10
BAND, RIM
(94327-21024-00)
12
SPACER(1EE)
90560-15293-00
13
FLANGE, SPACER
146-25116-00-00
16
COLLAR
90387-15529-00
18
AXLE, WHEEL
583-25181-00-00
24
GEAR, DRIVE
308-25135-00-00
26
BRAKE SHOE SET-2PCS
431-W2536-00-00
28
BRAKE SHOE PLATE ASSEMBLY
(1E6-25016-10-98)
30
CAMSHAFT
1E6-25151-00-00
35
GEAR, METER
308-25138-00-00
40
RING, STOP
102-25137-00-00
