1978 Yamaha XT500 (XT500E) Crankcase Diagram

← All diagrams

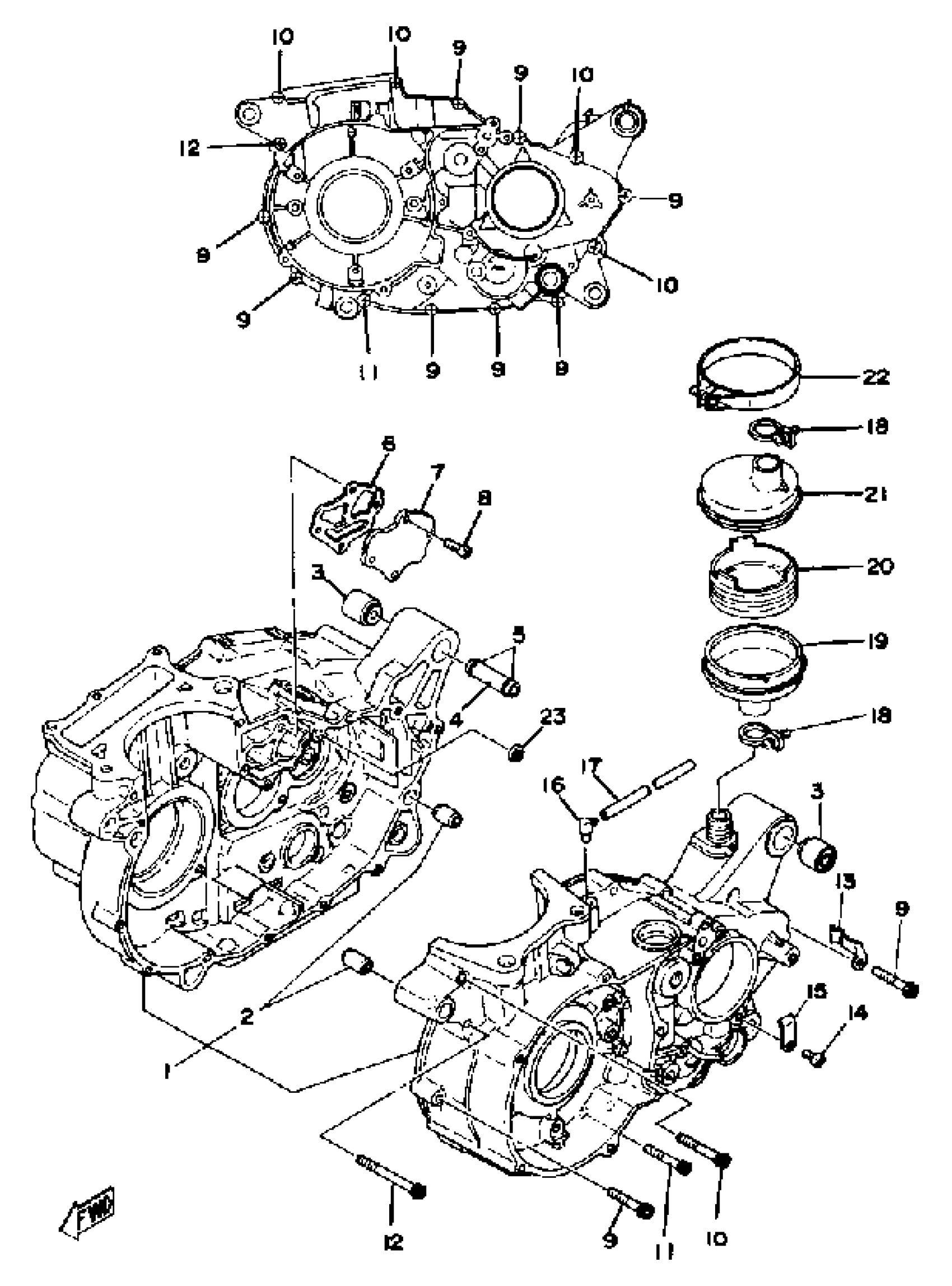

Find the part on the Crankcase diagram for your 1978 Yamaha XT500 (XT500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha XT500 (XT500E) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY (583-15100-00)

583-15100-03-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

DAMPER, ENG MOUNT 1

583-15316-00-00

1
Out of stock

4

SPACER, ENG MOUNT

583-15317-01-00

1
Out of stock

5

O-RING (1J7)

93210-11313-00

1

$6.80

In stock

6

GASKET 2

3HT-15466-00-00

1
Out of stock

7

COVER, OIL PUMP 2

583-15426-10-00

—
Out of stock

8

SCREW, PAN HEAD(6E5)

97880-06018-00

1

$4.19

In stock

9

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

10

BOLT,SOCKET

91317-06045-00

1
Out of stock

11

BOLT,SOCKET

91317-06055-00

1

$3.57

In stock

12

BOLT, SOCKET

91317-06065-00

1
Out of stock

13

CLAMP(51Y)

90465-08277-00

—
Out of stock

14

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

15

CLAMP

(90465-05075-00)

1
Out of stock

16

BREATHER

583-15371-00-00

—
Out of stock

17

HOSE (L1050)

90445-072G8-00

—

$23.46

In stock

18

CLAMP, HOSE (583)

90460-22083-00

—
Out of stock

19

BREATHER 2

583-15347-00-00

—

$16.35

In stock

20

SEPARATOR, OIL

3HT-15358-00-00

—

$11.34

In stock

21

BREATHER 1

583-15346-00-00

—

$10.71

In stock

22

CLAMP, HOSE (90460-71017)

90460-71129-00

1
Out of stock

23

GASKET (583 CRANKCASE)

90430-09121-00

—
Out of stock
