1978 Yamaha XT500 (XT500E) Camshaft - Chain Diagram

← All diagrams

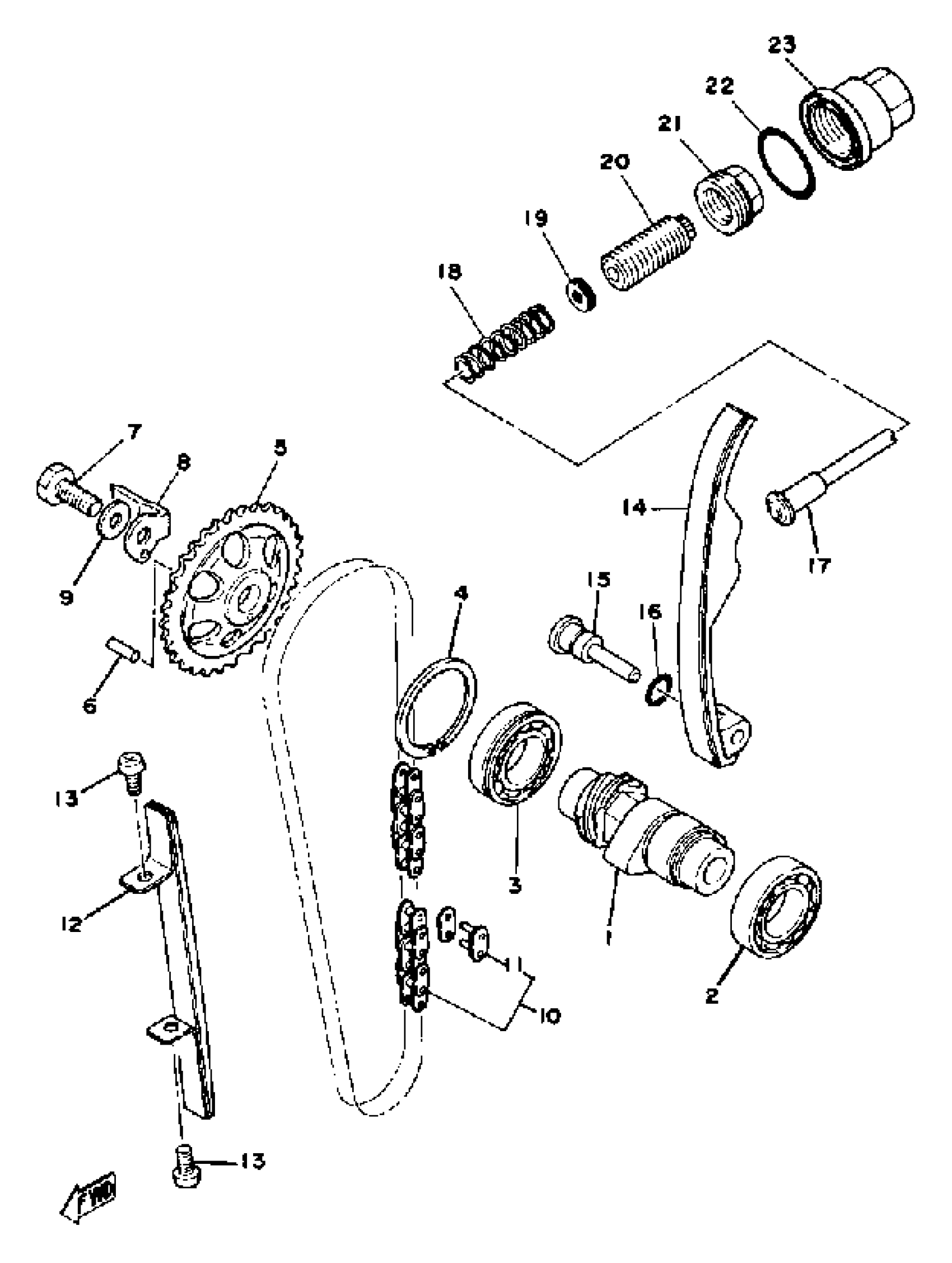

Find the part on the Camshaft - Chain diagram for your 1978 Yamaha XT500 (XT500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha XT500 (XT500E) Camshaft - Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAMSHAFT 1

583-12171-02-00

—
Out of stock

2

BEARING(1FF)

93306-00519-00

1

$31.24

In stock

3

BEARING(1FF)

93306-00519-00

1

$31.24

In stock

4

CIRCLIP (583 CAM SHAFT)

93440-47044-00

1
Out of stock

5

SPROCKET, CAM CHAIN DRIVEN

583-12176-00-00

1
Out of stock

6

PIN, DOWEL (409)

93604-16092-00

1

$1.94

In stock

7

BOLT (583)

90101-10303-00

1

$6.25

In stock

8

PLATE

1T1-12279-00-00

1
Out of stock

9

WASHER, PLATE (3L6)

90201-10774-00

1

$6.25

In stock

10

CHAIN, CAM SHAFT (583)

94500-02106-00

1
Out of stock

11

JOINT, CHAIN (583)

94600-02001-00

1
Out of stock

12

GUIDE, STOPPER 1

583-12231-01-00

1
Out of stock

13

SCREW, PAN

98507-06014-00

1

$6.18

In stock

14

GUIDE, STOPPER 2

341-12241-04-00

1
Out of stock

15

GUIDE, STOPPER 2

341-12241-04-00

1
Out of stock

16

O-RING (256)

93210-12152-00

—

$6.72

In stock

17

ROD, CHAIN TENSIONER

583-12217-00-00

—
Out of stock

18

SPRING COMPRESSION341122160200

90501-14095-00

—
Out of stock

19

DAMPER, CHAIN TENSIONER ROD

2H0-12232-00-00

—
Out of stock

20

SCREW (34F)

90149-18191-00

—
Out of stock

21

NUT (583 CHAIN TENSIONER)

90179-18199-00

—
Out of stock

22

O-RING (341)

93210-32172-00

—

$5.78

In stock

23

CAP, CHAIN TENSIONER

583-12212-00-00

—

$31.03

In stock
