1978 Yamaha XT500 (XT500E) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1978 Yamaha XT500 (XT500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

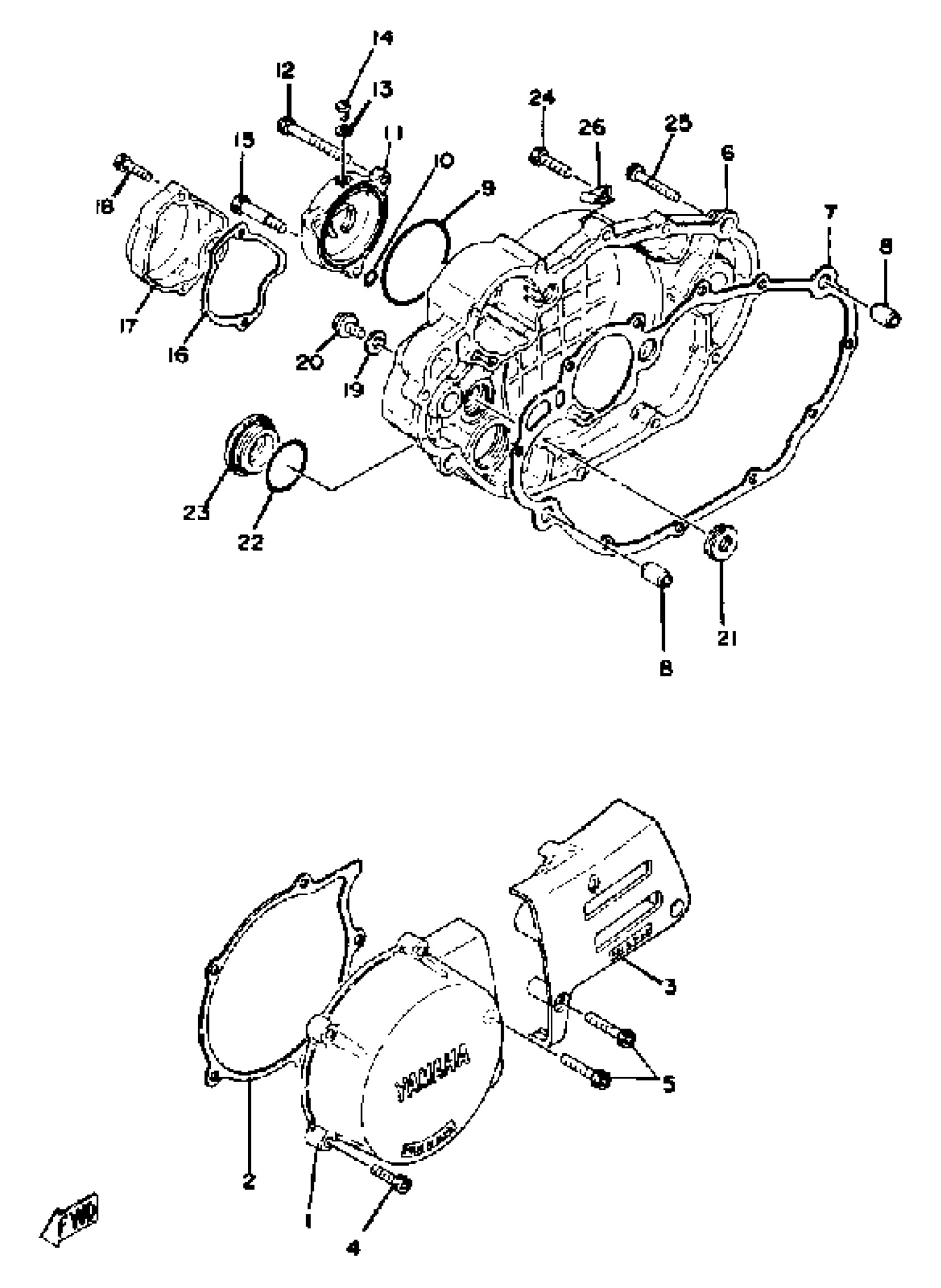

1978 Yamaha XT500 (XT500E) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L

583-15411-00-00

1
Out of stock

2

GASKET, CRANKCASE COVER 1

3HT-15451-00-00

1

$21.80

In stock

3

COVER, CRANKCASE R

583-15421-00-00

1
Out of stock

4

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

5

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

6

COVER, CRANKCASE 3 (583-15431-02-98)

583-W1542-00-00

1
Out of stock

7

CRANKCASE COVER 3 GASKET

3HT-15462-R1-00

1
Out of stock

8

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

9

O-RING (583 OIL CLEANER)

93210-64297-00

1
Out of stock

10

O-RING

93210-07438-00

1

$6.17

In stock

11

COVER, OIL ELEMENT

583-13447-01-00

1

$24.32

In stock

12

BOLT,SOCKET

91317-06060-00

1
Out of stock

13

GASKET

90430-05126-00

1
Out of stock

14

SCREW (583)

90149-05110-00

1

$6.88

In stock

15

BOLT (583 OIL DRAIN)

90109-06419-00

1

$6.17

In stock

16

GASKET

3HT-15457-00-00

—

$24.05

In stock

17

COVER, CAP

583-15417-00-00

1
Out of stock

18

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

19

GASKET (5R6)

90430-10171-00

—

$3.17

In stock

20

—

$8.44

In stock

21

OIL SEAL (14X25X5.5-583)

93101-14089-00

—

$10.51

In stock

22

O-RING (5H0)

93210-34474-00

—

$5.02

In stock

23

COVER, GENERATOR R

583-15425-00-00

1
Out of stock

24

—

$3.82

In stock

25

BOLT,SOCKET

91317-06040-00

—

$3.45

In stock

26

CLAMP

90465-08076-00

1
Out of stock
