1981 Yamaha XT250H_1981 Front Fork Diagram

← All diagrams

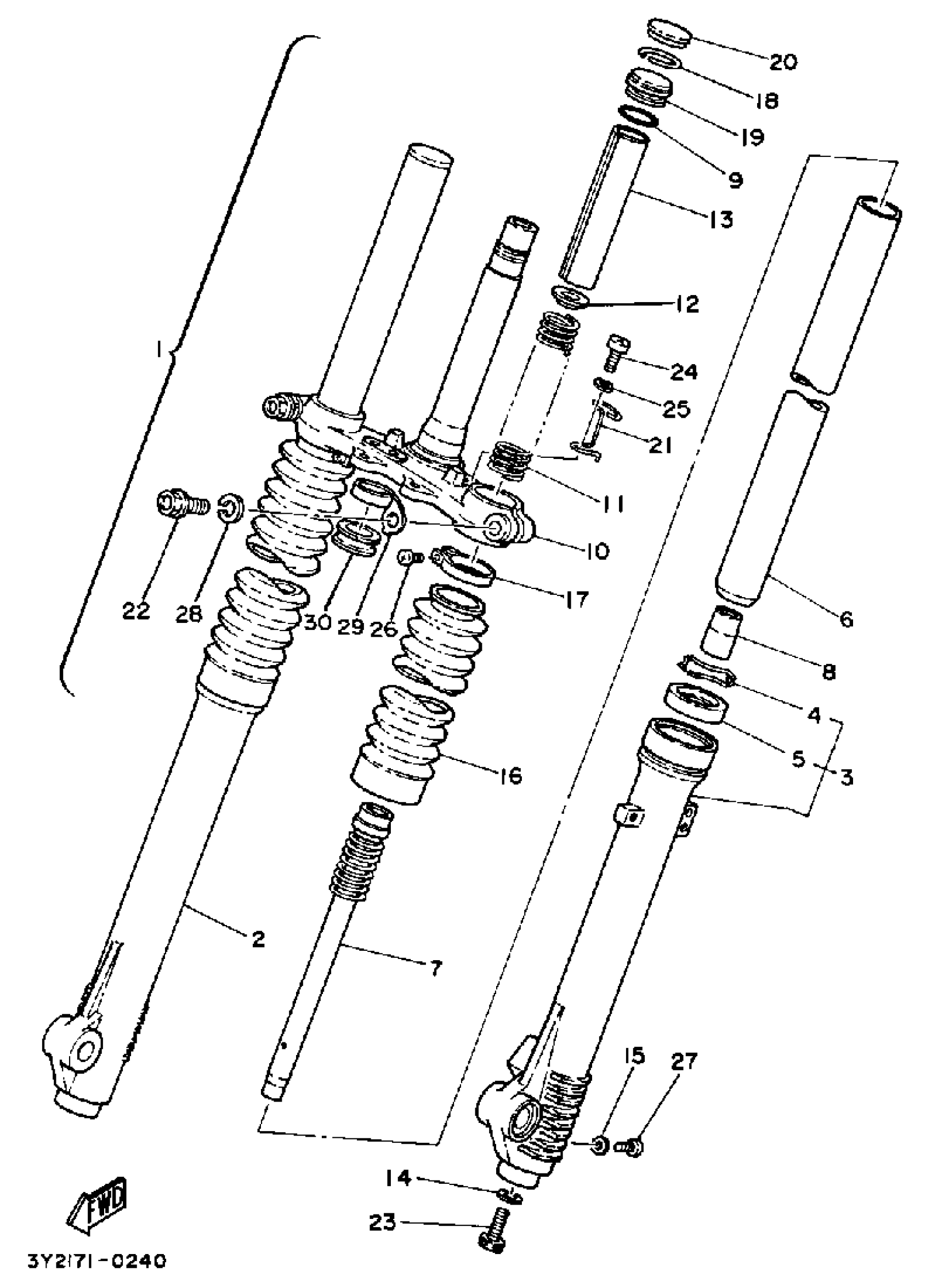

Find the part on the Front Fork diagram for your 1981 Yamaha XT250H_1981, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT250H_1981 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

3Y1-23100-00-00

1
Out of stock

2

. TUBE, OUTER 2

3Y1-23136-00-98

1
Out of stock

3

. TUBE, OUTER 1

3Y1-23126-00-98

1
Out of stock

4

RING, SNAP

4A1-23156-00-00

1

$4.74

In stock

5

OIL SEAL

1T3-23145-00-00

1

$14.25

In stock

6

. INNER TUBE 1

3Y1-23110-00-00

1
Out of stock

7

. CYLINDER, FRONT FORK

3Y1-23170-00-00

1
Out of stock

8

TAPER SPINDLE

1W1-23173-L0-00

1

$15.98

In stock

9

O-RING

3J2-23114-00-00

1

$7.51

In stock

10

. CAP, FRONT FORK

3Y1-23168-00-00

1
Out of stock

10

. NO LONGER AVAILABLE

3Y3-23340-30-33-00

1
Out of stock

11

. SPRING, FRONT FORK

3Y1-23141-00-00

1
Out of stock

12

. SEAT, SPRING UPPER

583-23142-00-00

1
Out of stock

13

. SPACER

2W6-23118-00-00

1
Out of stock

14

GASKET

509-23158-L0-00

1

$14.34

In stock

15

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

16

. BOOT, FRONT FORK

3Y1-23191-00-00

1
Out of stock

17

BAND, BOOT

341-92090-60-00

—
Out of stock

18

RING, SNAP

3J2-23183-00-00

—

$4.20

In stock

19

. BOLT, CAP

3Y1-23111-00-00

1
Out of stock

21

. GUIDE, CABLE

3Y1-2331E-00-00

1
Out of stock

22

BOLT 2

2NX-23356-00-00

—
Out of stock

23

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

24

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

SCREW

509-23194-L0-00

—

$4.12

In stock

27

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

28

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

29

. HOLDER, CABLE

3Y1-23317-00-00

1
Out of stock

30

GUIDE, WIRE

1W1-23389-00-00

—

$24.12

In stock
