1981 Yamaha XT250H_1981 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1981 Yamaha XT250H_1981, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

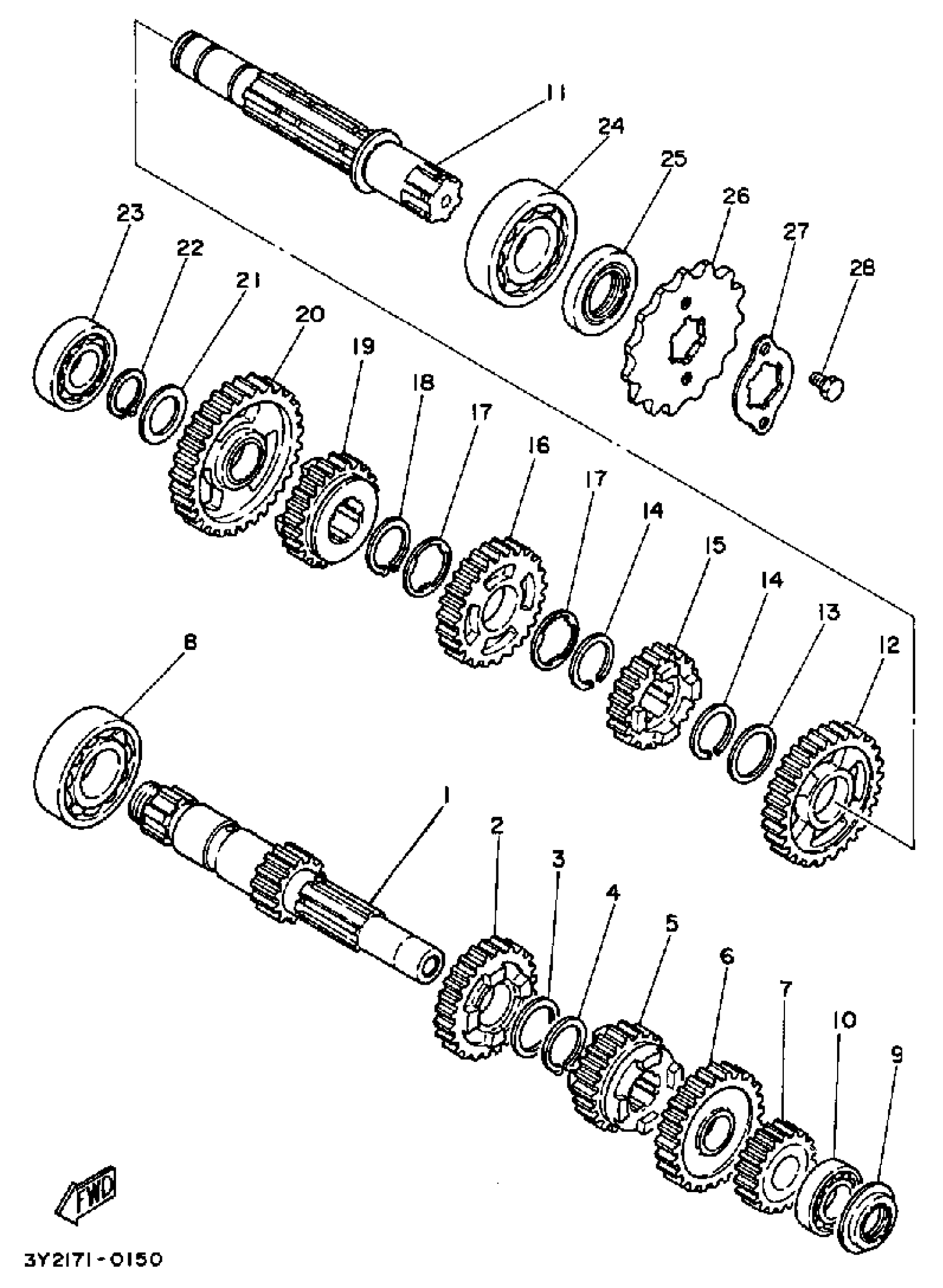

1981 Yamaha XT250H_1981 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

3Y1-17411-00-00

1
Out of stock

2

GEAR,4TH PINION

4DN-17141-00-00

1
Out of stock

3

WASHER, PLATE (3Y1)

90201-22793-00

1

$5.75

In stock

4

CIRCLIP (537)

93410-22039-00

1

$6.17

In stock

5

GEAR, 3RD PINION

3Y1-17131-01-00

—

$53.49

In stock

6

GEAR,5TH PINION

4DN-17151-00-00

1
Out of stock

7

GEAR, 2ND PINION (19T)

3Y1-17121-01-YX

—

$23.83

In stock

8

BEARING (3Y1)

93306-20541-00

1

$33.15

In stock

9

OIL SEAL (3Y1)

93101-17093-00

—

$12.68

In stock

10

BEARING(2JN)

93306-00315-00

1

$27.16

In stock

11

DRIVE AXLE ASSY

3Y1-17402-00-00

—

$182.02

In stock

12

GEAR, 2ND WHEEL

3Y1-17221-02-00

1

$52.58

In stock

13

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

14

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

15

GEAR, 5TH WHEEL

4DN-17251-00-00

—
Out of stock

16

GEAR, 3RD WHEEL

3Y1-17231-02-00

—

$66.03

In stock

17

WASHER (3J3)

90209-22191-00

—

$5.62

In stock

18

CIRCLIP(JF7)

99009-25400-00

—

$6.68

In stock

19

GEAR,4TH WHEEL

4DN-17241-00-00

1
Out of stock

20

GEAR, 1ST WHEEL

3Y1-17211-00-00

—

$56.34

In stock

21

WASHER PLATE 328171160000

90201-20276-00

—
Out of stock

22

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

23

BEARING (5Y1)

93306-00426-00

—

$35.60

In stock

24

BEARING (3Y1)

93306-30525-00

—
Out of stock

25

OIL SEAL (3Y1)

93102-25208-00

—

$11.54

In stock

26

SPROCKET,DRIVE 15T(3Y11746150)

93834-15078-00

1
Out of stock

27

HOLDER, SPROCKET

3Y1-17456-00-00

—

$6.38

In stock

28

BOLT(3JP)

97017-06010-00

—

$2.62

In stock
