SWING ARM

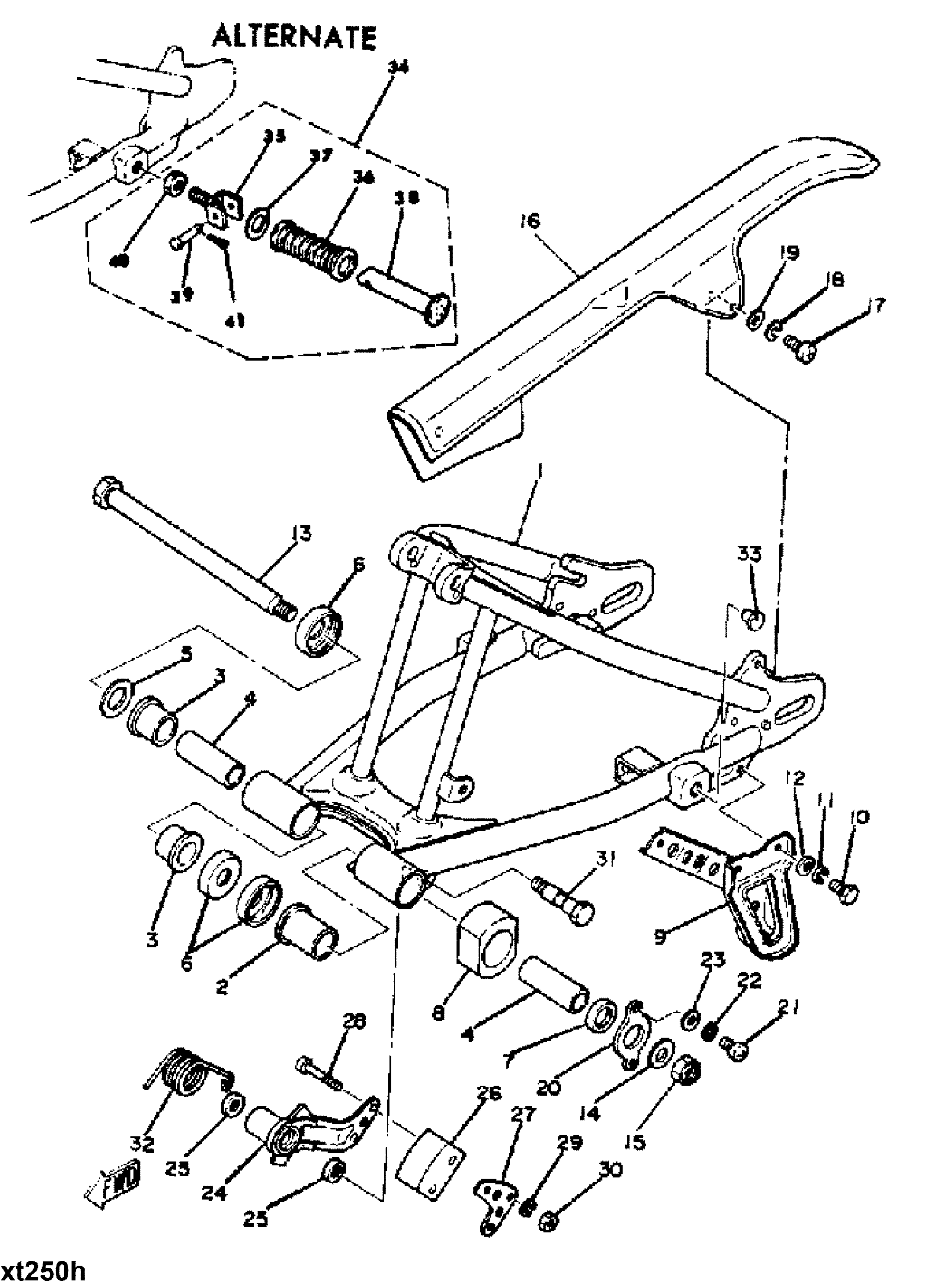

1981 Yamaha XT250H_1981 Swing ARM Diagram
Find the part on the Swing ARM diagram for your 1981 Yamaha XT250H_1981, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
REAR ARM
3Y1-22110-00-33
4
BUSH 2
3Y1-22124-01-00
6
COVER, THRUST
322-22128-01-00
7
OIL SEAL (20.9X28X4-1W1)
93109-22019-00
8
SEAL, GUARD
3Y1-22151-00-00
9
CHAIN, GUARD
3Y1-22318-00-00
16
CASE, CHAIN
3Y1-22311-00-00
19
WASHER, PLATE
90201-062AB-00
20
PLATE
3Y1-21329-00-00
24
ARM, TENSIONER
3Y1-22179-00-00
26
TENSIONER (2N0-22178-00-00)
ACC-11130-00-25
27
GUIDE, CHAIN
1W1-22187-00-00
29
YBS67-5 WASHER, SPRING
92990-05100-00
32
SPRING, TORSION (1J4)
90508-35350-00
35
. BRACKET 1
120-27432-02-00
37
WASHER, PLATE (888)
90201-20279-00
