1981 Yamaha XT250H_1981 Front Wheel Diagram

← All diagrams

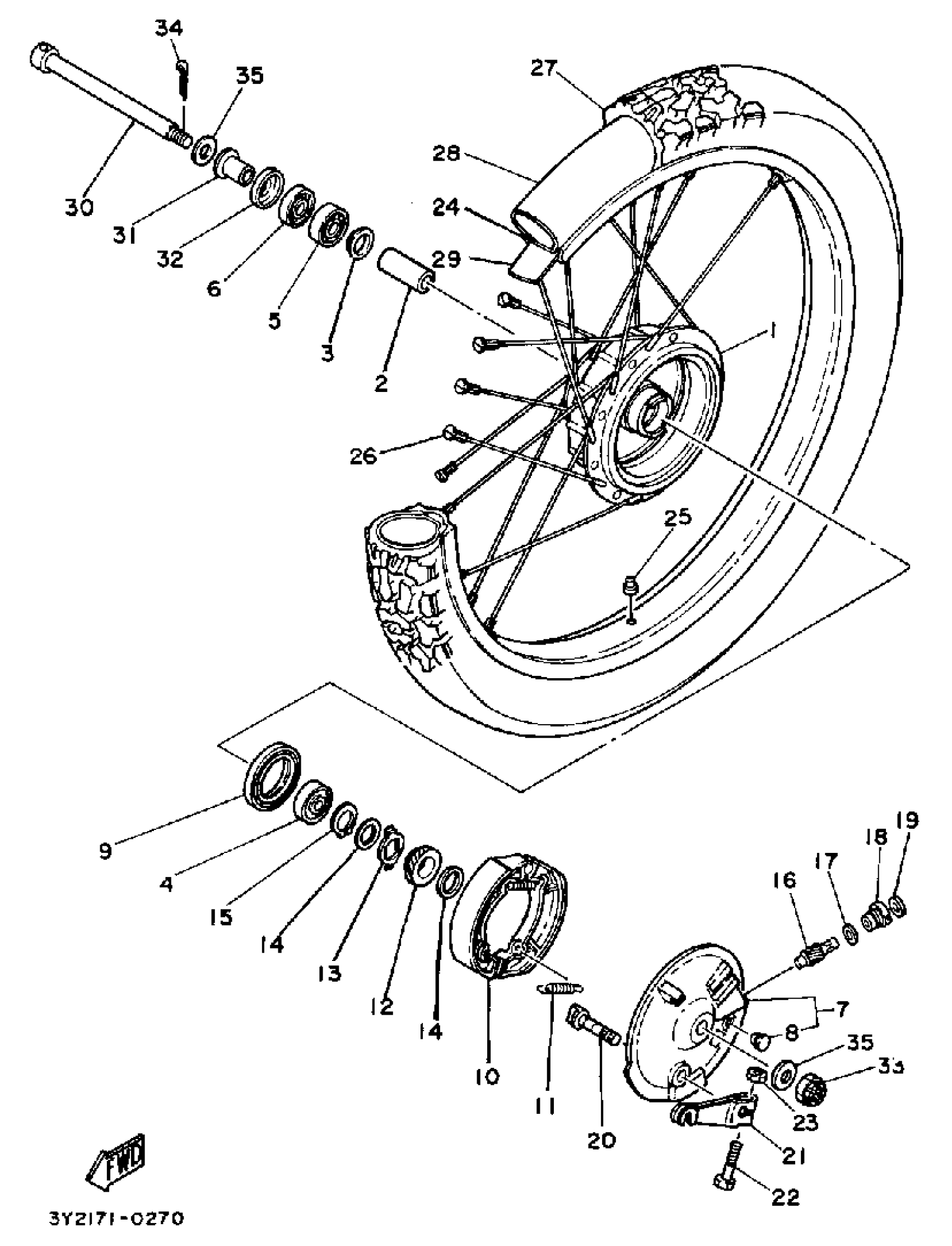

Find the part on the Front Wheel diagram for your 1981 Yamaha XT250H_1981, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT250H_1981 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

3Y1-25111-00-98

1
Out of stock

2

SPACER(1EE)

90560-15293-00

—
Out of stock

3

FLANGE, SPACER

146-25116-00-00

1
Out of stock

4

BEARING(3DL)

93306-20226-00

1

$33.15

In stock

5

BEARING

93306-20205-00

1

$32.63

In stock

6

OIL SEAL (20X35X7-136)

93102-20009-00

1

$9.10

In stock

7

BRAKE SHOE PLATE ASSEMBLY

99999-01734-00

1
Out of stock

8

. GROMMET

90480-10668-00

1
Out of stock

9

SEAL,OIL

93105-47007-00

1
Out of stock

10

BRAKE SHOE KIT

3KG-W253E-00-00

—
Out of stock

11

SPRING (5T9)

90506-17328-00

—

$9.32

In stock

12

GEAR, DRIVE

308-25135-00-00

1
Out of stock

13

CLUTCH, METER

214-25149-01-00

1

$6.68

In stock

14

WASHER PLATE 214251470000

90201-22283-00

1

$5.38

In stock

15

CIRCLIP(1EY)

99009-22400-00

1

$6.17

In stock

16

GEAR, METER

308-25138-00-00

1
Out of stock

17

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

18

BUSHING

109-25136-00-00

—

$8.78

In stock

19

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

20

CAMSHAFT

4GL-25351-00-00

—

$62.50

In stock

21

LEVER, CAMSHAFT 1

3Y1-25155-01-00

1
Out of stock

22

BOLT, HEXAGON (538)

90101-06278-00

—

$1.82

In stock

23

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

24

RIM 1.60X21

94416-21326-00

1
Out of stock

25

GROMMET (397)

90480-10068-00

—

$6.77

In stock

26

SPOKE SET, FRONT

3Y1-25104-00-00

1
Out of stock

27

TIRE 300X21BS TW11 4 PLY

94130-21416-00

1
Out of stock

28

TUBE, FRONT (2A6)

94227-21123-00

—

$43.59

In stock

29

BAND, RIM (2A6)

94330-21084-00

—

$13.89

In stock

30

AXLE, WHEEL

403-25381-01-00

1
Out of stock

31

COLLAR (1W1)

90387-15600-00

—

$15.34

In stock

32

COVER, HUB DUST

322-25118-00-00

—

$16.17

In stock

33

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

34

PIN, COTTER

91490-30030-00

—

$7.15

In stock

35

WASHER, PLATE (3Y2)

90201-15785-00

—
Out of stock
