1981 Yamaha XT250H Stand Footrest Diagram

← All diagrams

Find the part on the Stand Footrest diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

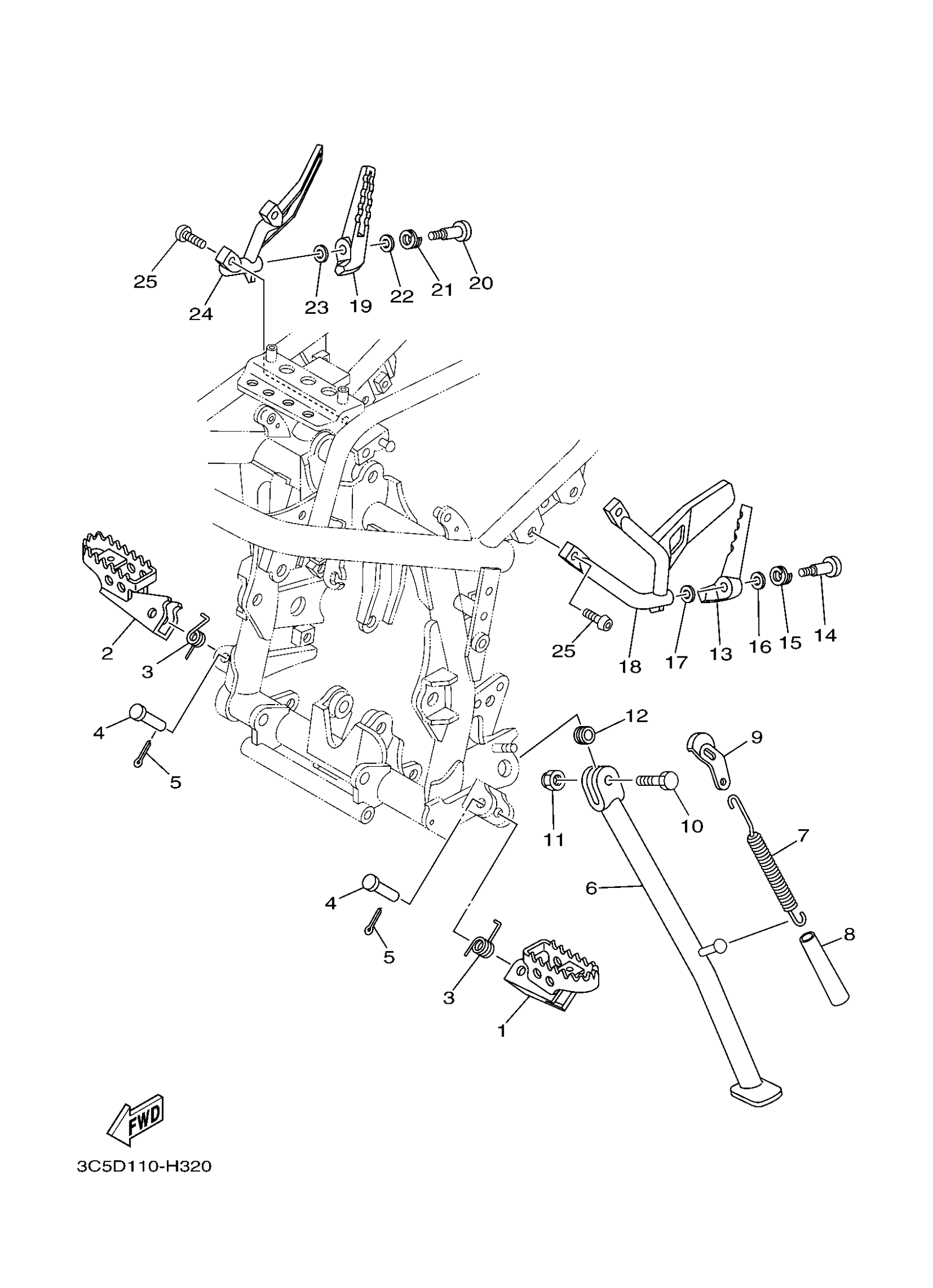

1981 Yamaha XT250H Stand Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST 1

3LD-27411-10-00

—
Out of stock

2

FOOTREST 2

3LD-27421-10-00

1

$43.46

In stock

3

SPRING, TORSION (23X)

90508-20583-00

1

$6.68

In stock

4

PIN, CLEVIS (23X)

90240-10101-00

1

$10.68

In stock

5

PIN, COTTER

91490-25020-00

1

$2.94

In stock

6

STAND, SIDE

3C5-27311-11-00

1
Out of stock

7

SPRING, TENSION(3XP)

90506-35473-00

1

$14.62

In stock

8

HOSE (L70)

90445-22327-00

1

$6.15

In stock

9

LINK, SIDE STAND

5XT-27315-01-00

1

$6.48

In stock

10

BOLT

90101-10013-00

—

$3.42

In stock

11

NUT, SELF-LOCKING

90185-10012-00

1

$2.98

In stock

12

COLLAR

90387-10003-00

1

$21.31

In stock

13

FOOTREST, REAR 1

3XP-27431-02-00

1

$31.77

In stock

14

BOLT(3XP)

90109-085F5-00

1

$4.63

In stock

15

SPRING, COMPRESSION (5L1)

90504-18031-00

1

$7.66

In stock

16

WASHER(6TA)

92907-10600-00

—
Out of stock

17

WASHER, PLATE(3XP)

90201-083P5-00

—
Out of stock

18

BRACKET 1

3C5-27432-00-00

—
Out of stock

19

FOOTREST, REAR 2

3XP-27441-02-00

—

$30.29

In stock

20

BOLT(3XP)

90109-085F5-00

1

$4.63

In stock

21

SPRING, COMPRESSION (5L1)

90504-18031-00

1

$7.66

In stock

22

WASHER(6TA)

92907-10600-00

—
Out of stock

23

WASHER, PLATE(3XP)

90201-083P5-00

—
Out of stock

24

BRACKET 2

3C5-27442-00-00

—

$65.38

In stock

25

BOLT, BUTTON HEAD

92012-08020-00

—
Out of stock
