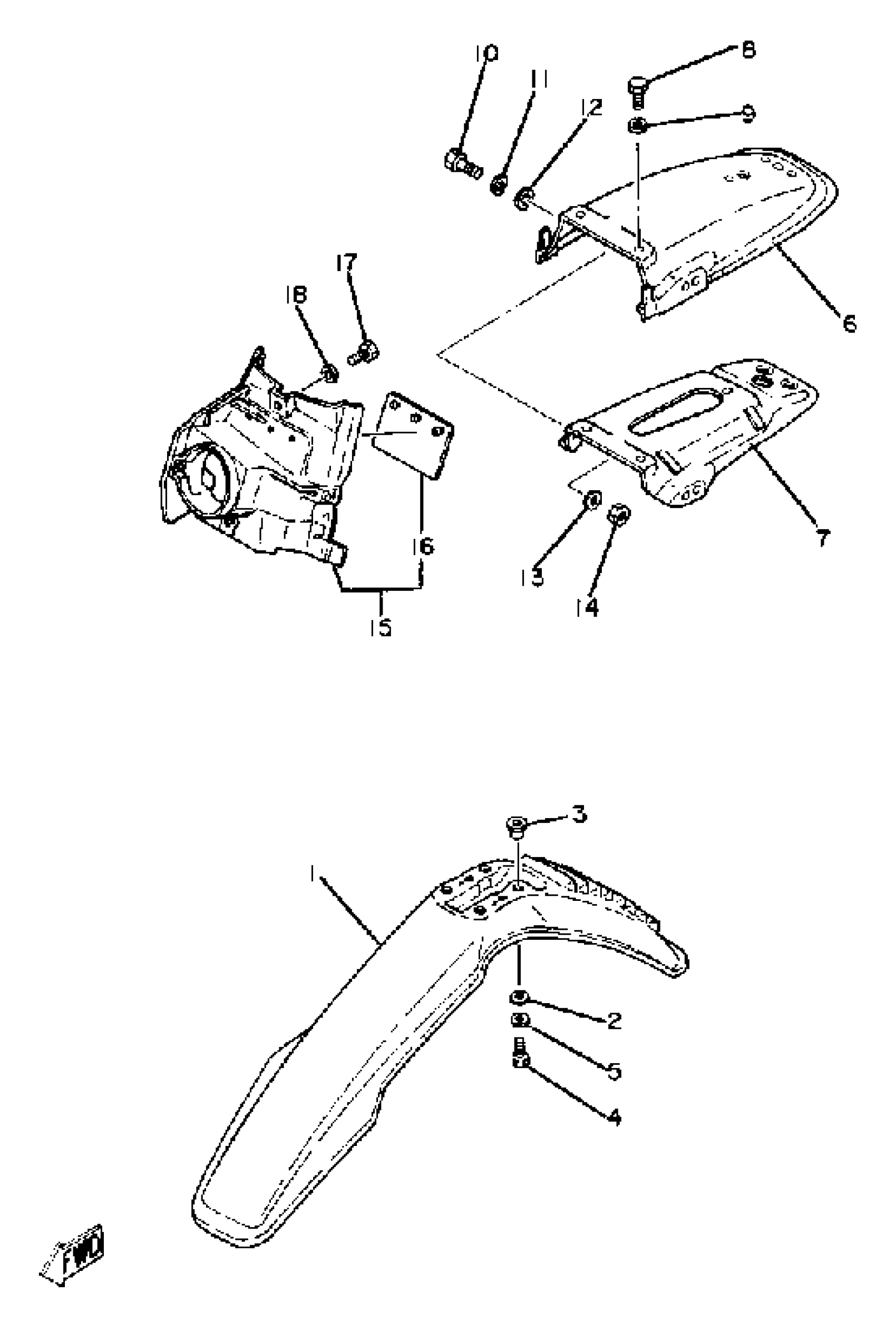

Yamaha XT250H 1981 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

3Y1-21511-01-00

Unavailable

2

WASHER, PLATE

90201-06380-00

$0.54

3

COLLAR (3Y2)

90387-07789-00

$5.66

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

5

WASHER, SPRING

92995-06100-00

$2.95

6

FENDER, REAR

3Y0-21611-00-00

$31.12

7

REINFORCEMENT

3Y1-21670-00-00

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

9

WASHER, SPRING

92995-06100-00

$2.95

10

BOLT, HEXAGON

97013-08030-00

$2.98

11

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

12

.. WASHER, PLATE

92990-08600-00

$2.17

13

WASHER, PLATE (397)

90201-08100-00

$5.75

14

NUT(6L2)

95333-08600-00

$2.98

15

MUD GUARD

3Y1-21620-00-00

Unavailable

16

FLAP

1M1-21621-00-00

Unavailable

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

18

WASHER, PLATE

90201-06380-00

$0.54
