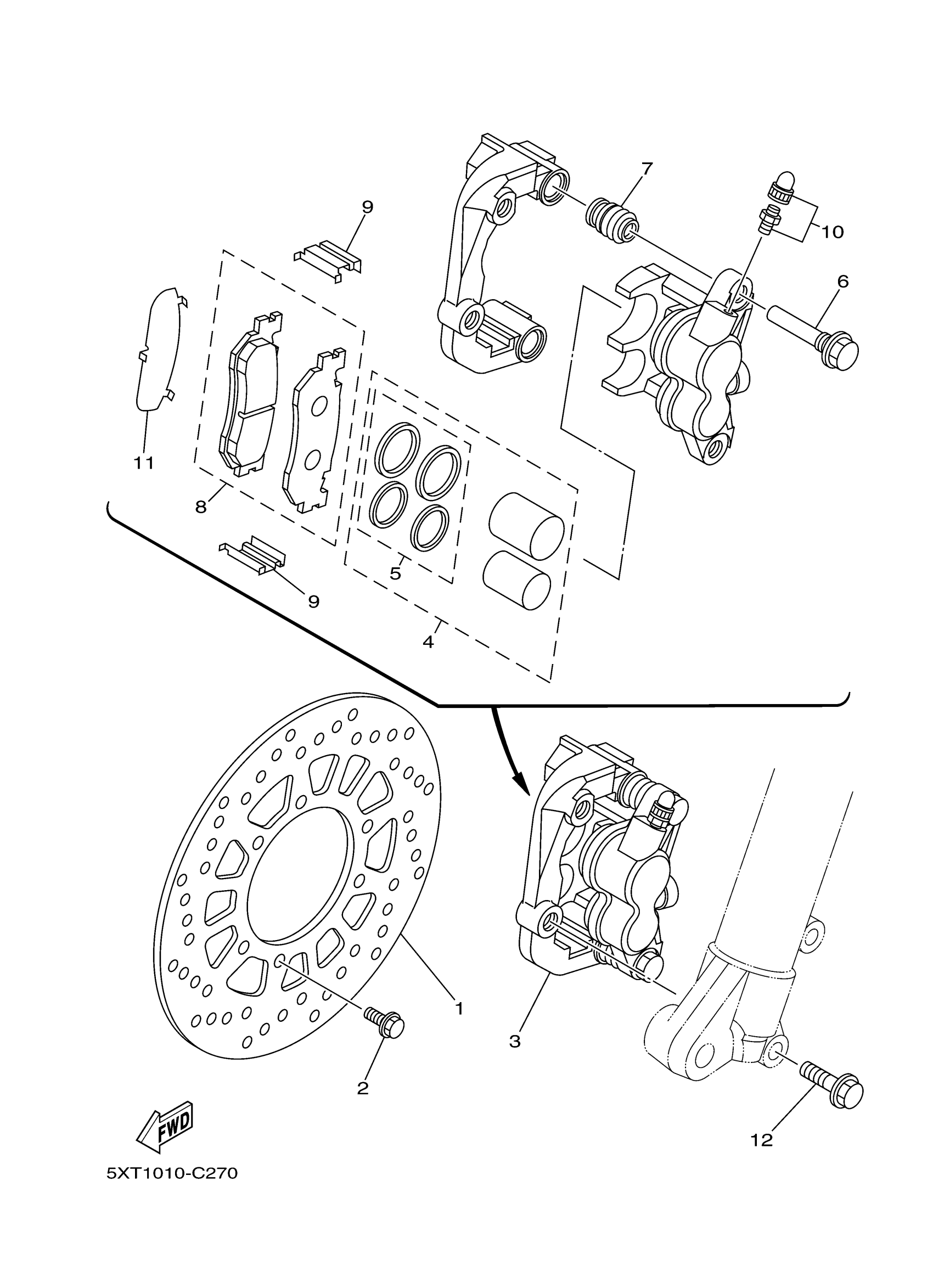

Find the part on the Front Brake Caliper diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT250H Front Brake Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC, BRAKE (LEFT)

3C5-2582T-00-00

1

$216.49

In stock

2

BOLT, FLANGE

90105-06109-00

1

$6.31

In stock

3

CALIPER ASSY (LEFT)

3C5-2580T-00-00

—

$349.02

In stock

4

PISTON ASSY, CALIPER

4JG-25802-00-00

1

$62.92

In stock

5

CALIPER SEAL KIT

4JG-25803-00-00

1

$16.69

In stock

6

PIN, SLIDE

5JW-25914-10-00

1

$19.20

In stock

7

BOOT 2

4TT-25937-00-00

1

$14.25

In stock

8

BRAKE PAD KIT

3C5-25805-00-00

1

$43.41

In stock

9

SUPPORT, PAD

4TT-25919-00-00

1

$9.32

In stock

10

BLEED SCREW KIT

15B-W0048-00-00

1

$18.09

In stock

11

SHIM, CALIPER

5XT-25828-00-00

—

$8.72

In stock

12

BOLT, WASHER BASED(3VD)

90105-10638-00

1

$6.22

In stock
