1981 Yamaha XT250H Rear Brake Caliper Diagram

← All diagrams

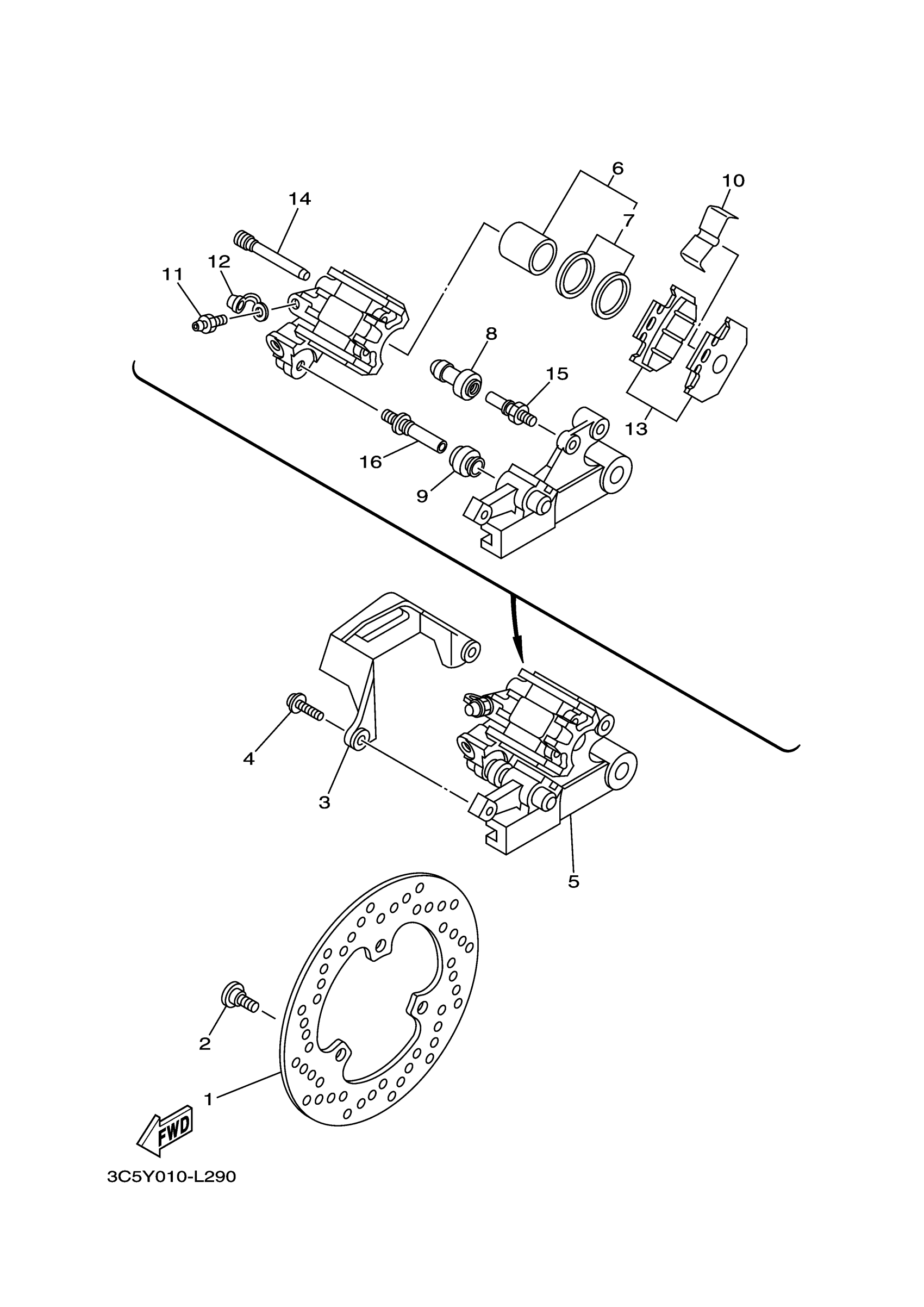

Find the part on the Rear Brake Caliper diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT250H Rear Brake Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISK, REAR BRAKE 2

5XT-2582W-00-00

1

$98.57

In stock

2

BOLT

90109-08087-00

1

$2.65

In stock

3

PROTECTOR

4GY-27491-00-00

1

$51.64

In stock

4

BOLT, BUTTON

92014-06016-00

1

$6.17

In stock

5

CALIPER ASSY, REAR 2

3C5-2580W-10-00

—

$354.51

In stock

6

PISTON ASSY, CALIPER

5XT-25802-50-00

1

$39.49

In stock

7

CALIPER SEAL KIT

3JD-25803-50-00

1

$14.37

In stock

8

BOOT 2

1UY-25937-51-00

1

$12.27

In stock

9

BOOT, CALIPER

3JD-25917-00-00

1

$7.51

In stock

10

SUPPORT, PAD

3SP-25919-51-00

—

$20.66

In stock

11

BLEED SCREW KIT

36Y-W0048-00-00

1

$8.51

In stock

12

BLEED SCREW KIT

36Y-W0048-00-00

1

$8.51

In stock

13

BRAKE PAD KIT 2

3C5-25806-00-00

1

$43.41

In stock

14

PIN, PAD

3FV-25924-00-00

1

$20.15

In stock

15

BOLT

3SP-25914-51-00

1
Out of stock

16

BOLT

3SP-25926-51-00

—
Out of stock
