1981 Yamaha XT250H Front Master Cylinder Diagram

← All diagrams

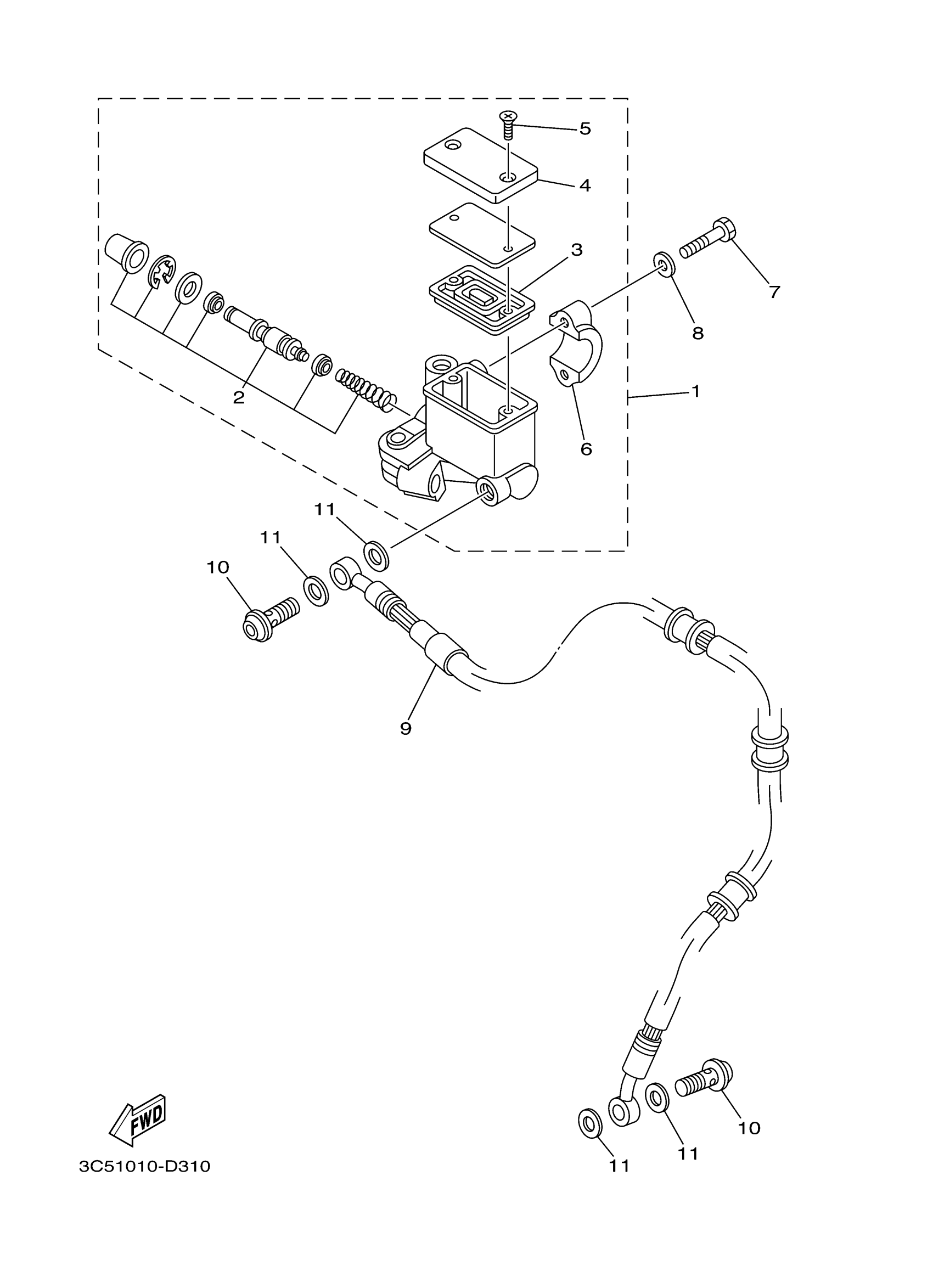

Find the part on the Front Master Cylinder diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT250H Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MASTER CYLINDER ASSY

5XT-2583T-00-00

1

$220.92

In stock

2

CYLINDER KIT, MASTER

5XT-W0041-00-00

1

$31.49

In stock

3

DIAPHRAGM, RESERVOIR

55U-25854-00-00

1

$21.68

In stock

4

CAP, RESERVOIR

3GM-25852-22-00

1
Out of stock

5

SCREW, FLAT

98707-04012-00

1

$1.43

In stock

6

BRACKET, MASTER CYLINDER

56A-25867-00-00

1
Out of stock

7

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

8

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

9

HOSE, BRAKE 1

3C5-25872-00-00

—

$66.06

In stock

10

BOLT, UNION

90401-10172-00

1

$3.72

In stock

11

GASKET

90430-10005-00

1

$7.06

In stock
