1981 Yamaha XT250H Headlight Diagram

← All diagrams

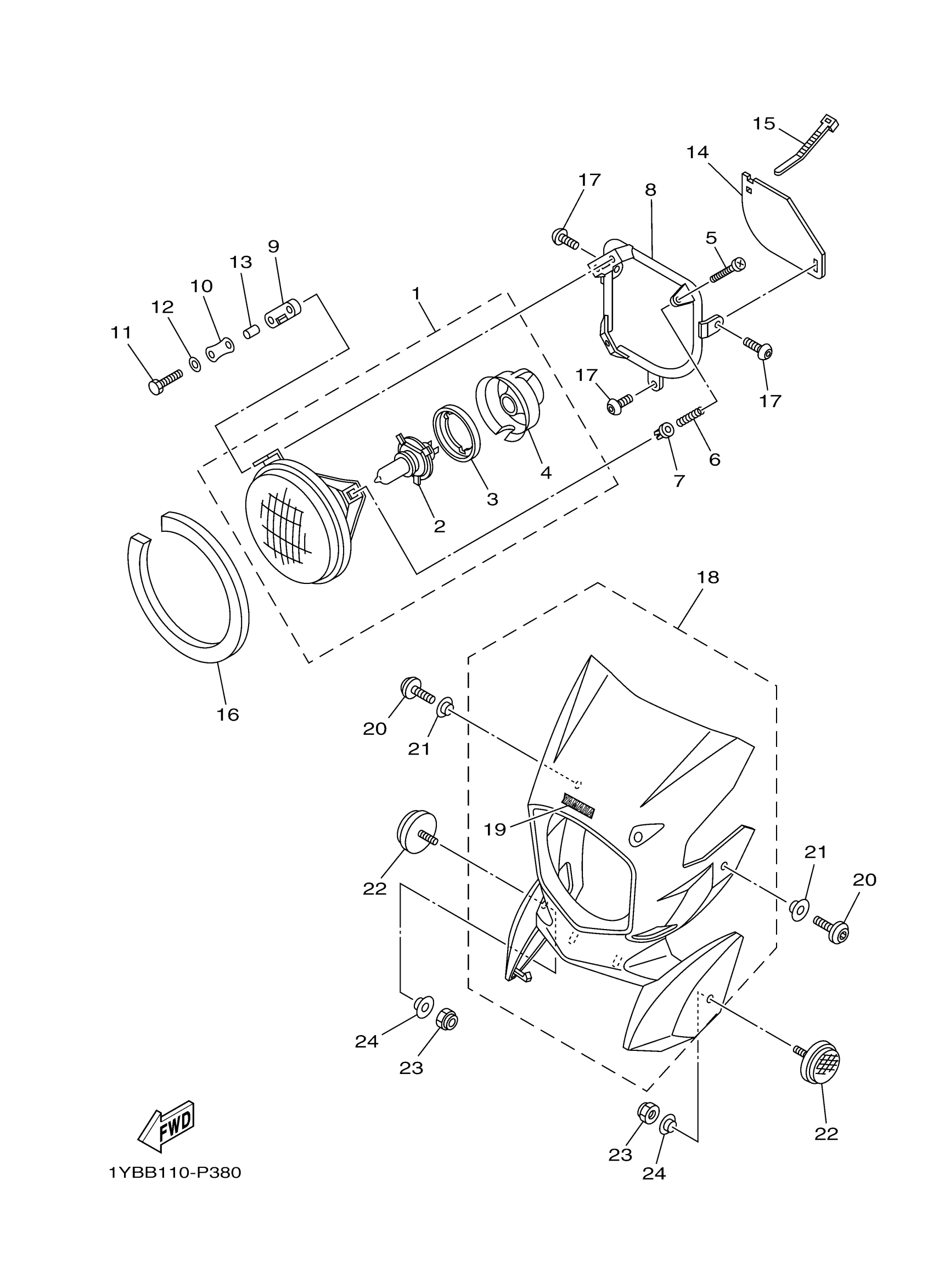

Find the part on the Headlight diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT250H Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LENS ASSY

3C5-84320-00-00

—

$330.31

In stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

SETTING PLATE, BULB

2F9-84375-00-00

—

$12.66

In stock

4

COVER, SOCKET

2F9-84397-01-00

1

$27.82

In stock

5

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

6

SPRING, ADJUST

341-84332-60-00

1

$8.54

In stock

7

NUT, ADJUSTING

4B4-84334-00-00

1

$4.03

In stock

8

RIM, HEADLIGHT

3C5-84315-00-00

—

$109.75

In stock

9

DAMPER, HEADLIGHT 1

3C5-84366-00-00

—

$23.25

In stock

10

WASHER, SPECIAL

3C5-84127-00-00

1

$5.74

In stock

11

BOLT(3JK)

97027-05020-00

1

$2.48

In stock

12

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

13

COLLAR 288839130000

90387-05383-00

1

$7.43

In stock

14

COVER, HEADLIGHT

3C5-84144-00-00

1

$7.25

In stock

15

CLAMP

90465-10098-00

1

$2.24

In stock

16

DAMPER

3C5-84559-00-00

—

$6.58

In stock

17

BOLT, BUTTON HEAD

92012-06010-00

—

$2.45

In stock

18

COVER COMP. ASSY

3C5-W8450-W0-00

—
Out of stock

19

EMBLEM, YAMAHA

3WF-2153E-61-00

—

$3.54

In stock

20

BOLT

90111-06038-00

—

$3.45

In stock

21

COLLAR(47X)

90387-061M0-00

—

$6.71

In stock

22

REFLECTOR, FRONT 1

2EK-85111-00-00

—

$23.42

In stock

23

NUT, U

95617-05100-00

—

$6.68

In stock

24

COLLAR

90387-05038-00

—

$18.74

In stock
