ELECTRICAL 1

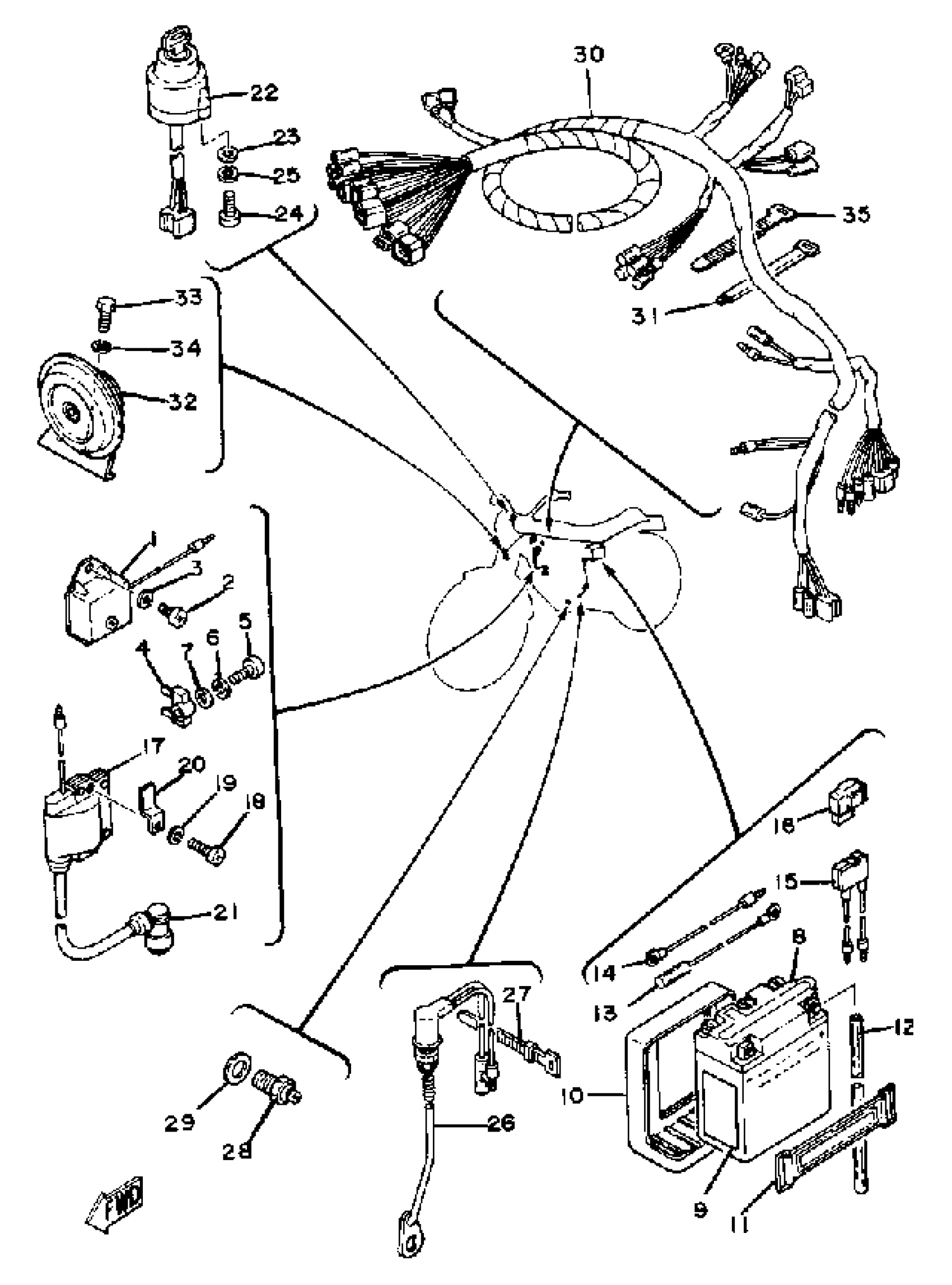

1981 Yamaha XT250H Electrical 1 Diagram
Find the part on the Electrical 1 diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
2
WIRE, MINUS LEAD
5XT-82116-00-00
15
FUSE (12V 30A)
1AE-82151-00-00
17
WIRE, PLUS LEAD
5XT-82115-00-00
20
WASHER, PLATE (8M6)
90201-047A2-00
21
BOLT
91312-04025-00
28
SWITCH, SIDE STAND
5XT-82566-01-00
32
CLAMP(4GY)
90464-05188-00
34
BAND
1UA-82591-00-00
36
BAND
1UA-82591-00-00
37
BAND
1UA-82591-00-00
40
BAND
1UA-82591-00-00
44
BAND
1UA-82591-00-00
45
BAND
1UA-82591-00-00
49
PROTECTER, WIRE HA
2D1-82589-02-00
52
BAND
1UA-82591-00-00
