1981 Yamaha XT250H CDI Magneto Diagram

← All diagrams

Find the part on the CDI Magneto diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

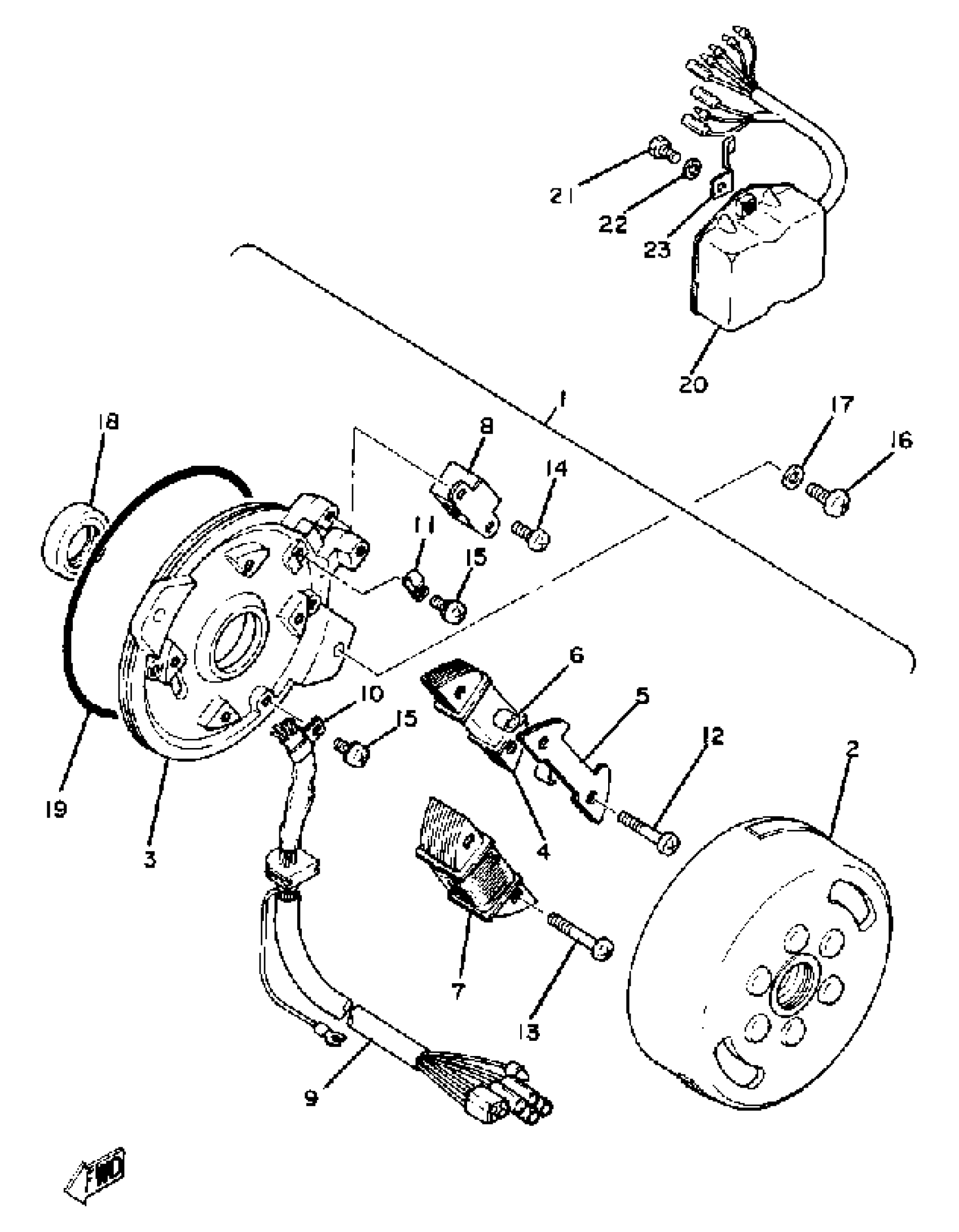

1981 Yamaha XT250H CDI Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CDI MAGNETO ASSEMBLY

(3Y1-85500-20-00)

1
Out of stock

2

ROTOR ASDSEMBLY

(3Y1-85550-20-00)

1
Out of stock

3

. BASE, MAGNETO

3Y1-85509-20-00

1
Out of stock

4

. COIL SOURCE 2

31G-85512-20-00

1
Out of stock

5

. SPACER

3Y1-85519-20-00

1
Out of stock

6

. COLLAR, COIL FITTING

3Y1-81343-20-00

1
Out of stock

7

. COIL, LIGHTING

3Y1-85513-20-00

1
Out of stock

8

. COIL, PULSER

3Y1-85580-20-00

1
Out of stock

9

. LEAD, WIRE ASSEMBLY

3Y1-85515-20-00

1
Out of stock

10

CLAMP, READ

445-81328-20-00

—

$5.35

In stock

11

CLAMP, LEAD

(3Y1-85528-20-00)

1
Out of stock

12

SCREW, PAN HEAD

98517-05030-00

1

$7.92

In stock

13

SCREW, PAN

98507-05035-00

1

$6.69

In stock

14

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

15

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

16

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

18

OIL SEAL (3Y1)

93102-25226-00

—

$12.31

In stock

19

O-RING (3Y2)

93211-19413-00

—

$14.22

In stock

20

CDI UNIT ASSEMBLY

3Y1-85540-20-00

1
Out of stock

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

CLAMP

(90462-08068-00)

1
Out of stock
