1981 Yamaha XT250H Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

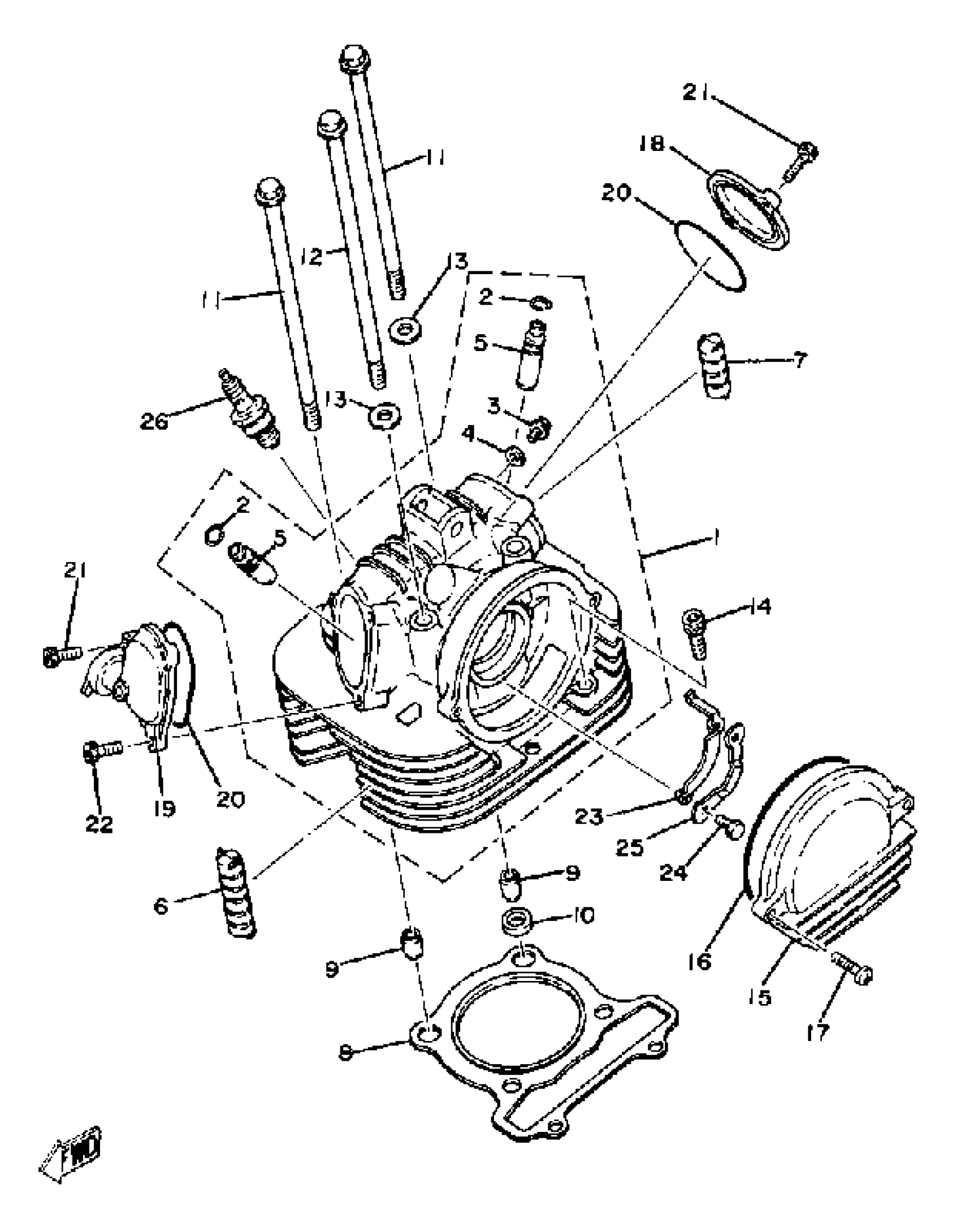

1981 Yamaha XT250H Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER HEAD ASSY

3Y1-11110-00-00

1
Out of stock

2

CIRCLIP (1L9)

93440-12052-00

1

$1.75

In stock

3

SCREW

90153-06029-00

1

$8.06

In stock

4

GASKET 256113960000

90430-06014-00

—

$7.23

In stock

5

GUIDE, INTAKE VALVE

3Y1-11133-11-00

1

$24.50

In stock

6

ABSORBER

583-11127-00-00

1

$6.72

In stock

7

ABSORBER

583-11127-00-00

1

$6.72

In stock

8

GASKET, CYLINDER HEAD

3Y1-11181-09-00

1

$44.05

In stock

9

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

10

GASKET (1L9)

90430-14131-00

1

$5.32

In stock

11

BOLT, FLANGE

90105-10213-00

1

$15.49

In stock

12

BOLT, WASHER BASED (3Y1)

90105-10139-00

1
Out of stock

13

WASHER PLATE 341839090000

90201-10128-00

1

$3.42

In stock

14

BOLT, SOCKET

91317-08050-00

1

$6.17

In stock

15

COVER, CYLINDER HEAD SIDE 1

3Y1-11185-00-00

1
Out of stock

16

O-RING (15A)

93211-06635-00

—

$12.42

In stock

17

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

18

COVER, CYLINDER HEAD SIDE 2

3Y1-11186-10-00

—
Out of stock

19

COVER, CYLINDER HEAD SIDE 3

3Y1-11187-00-00

1
Out of stock

20

O-RING

93210-57634-00

—

$12.58

In stock

21

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

22

BOLT

90109-06556-00

1
Out of stock

23

PLATE

3Y1-1111F-00-00

—

$6.72

In stock

24

BOLT (661)

97013-06012-00

—

$4.71

In stock

25

WASHER, LOCK (3Y1)

90215-06162-00

—

$7.43

In stock

26

BPR7ES NGK - 4/PACK

BPR-7ES00-40-00

1

$3.43

In stock
← Cylinder Head Exhaust →
