1981 Yamaha XT250H Crankshaft Piston Diagram

← All diagrams

Find the part on the Crankshaft Piston diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

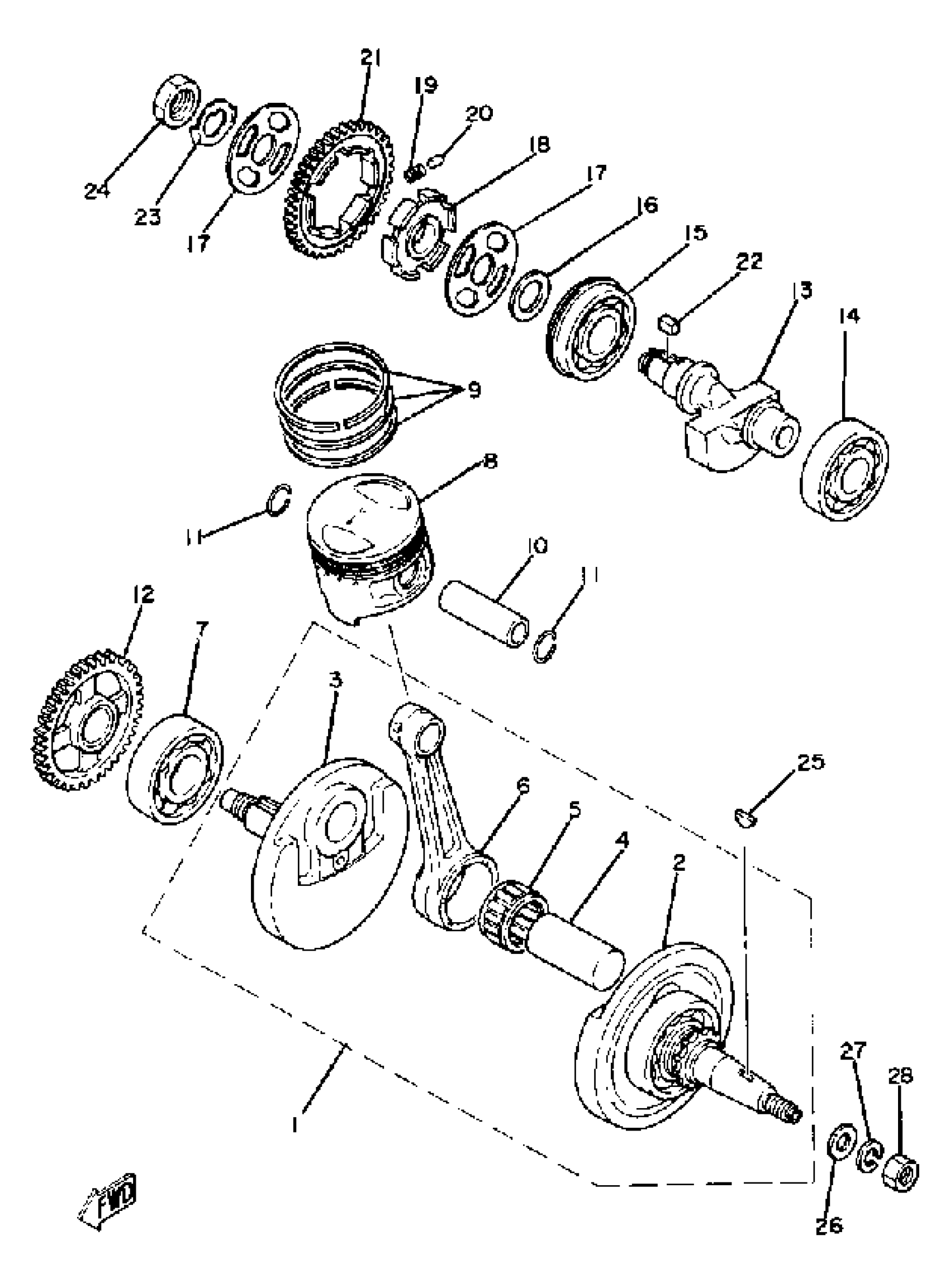

1981 Yamaha XT250H Crankshaft Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

3Y1-11400-00-00

1
Out of stock

2

CRANK SUB ASSY 1

3Y1-11401-09-00

1
Out of stock

3

. CRANK 2

3Y1-11422-01-00

1
Out of stock

4

. PIN, CRANK 1

3Y1-11681-00-00

1
Out of stock

5

. BEARING, CYLINDER #10

93310-831H1-00

1
Out of stock

6

. ROD, CONNECTING

3Y1-11651-02-00

1
Out of stock

7

BEARING(3KW)

93306-30630-00

1

$64.14

In stock

8

PISTON (STD)

3Y1-11631-00-A0

1
Out of stock

8

PISTON 1 O/S 0.25

3Y1-11635-00-00

1
Out of stock

8

PISTON 2 O/S 0.50

3Y1-11636-00-00

1
Out of stock

8

PISTON 3 O/S 0.75

3Y1-11637-00-00

1
Out of stock

8

PISTON 4 O/S 1.0

3Y1-11638-00-00

1
Out of stock

9

PISTON RING SET (STD)

447-11610-00-00

—

$94.08

In stock

9

PISTON RING SET (STD) 1ST O/S

447-11610-10-00

—
Out of stock

9

—

$54.08

In stock

9

PISTON RINGSET 3RD

447-11610-30-00

1
Out of stock

9

PISTON RINGSET 4TH

447-11610-40-00

1
Out of stock

10

PIN, PISTON

447-11633-00-00

—

$34.29

In stock

11

CIRCLIP 341116340000

93450-22027-00

—

$6.00

In stock

12

GEAR, DRIVE (43T)

3Y1-11536-00-00

1
Out of stock

13

WEIGHT 1

3Y1-11454-00-00

—

$63.78

In stock

14

BEARING (3Y1)

93306-30525-00

—
Out of stock

15

BEARING (5Y1)

93306-30540-00

—
Out of stock

16

WASHER, PLATE (3Y1)

90201-20792-00

—
Out of stock

17

WASHER, BEARING CVR

(3Y1-11565-00-00)

1
Out of stock

18

BOSS, BUFFER

3Y1-11496-00-00

—
Out of stock

19

—

$7.25

In stock

20

PIN, DOWEL

93605-10090-00

—

$5.41

In stock

21

GEAR, BALANCE WT

3Y1-11531-02-00

—

$58.26

In stock

22

KEY, STRAIGHT(34K)

90282-05065-00

—

$8.80

In stock

23

WASHER, LOCK (3Y1)

90215-20158-00

—
Out of stock

24

NUT,SPEC'L SHAPE

90179-16018-00

—

$11.26

In stock

25

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

26

WASHER, PLATE (583)

90201-12593-00

—

$6.82

In stock

27

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

28

NUT(55K)

90170-12347-00

—

$8.43

In stock
