1981 Yamaha XT250H Crankcase Diagram

← All diagrams

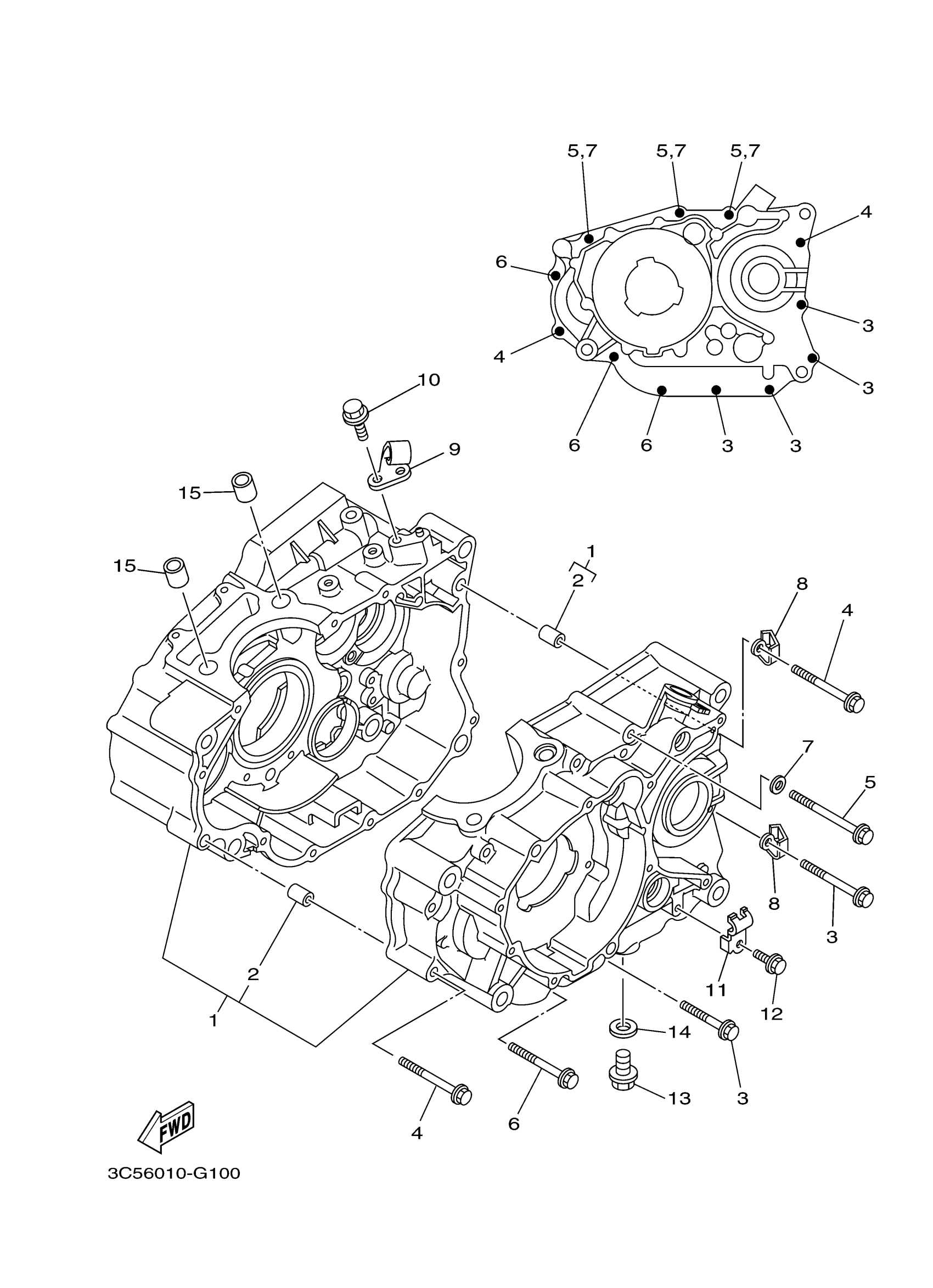

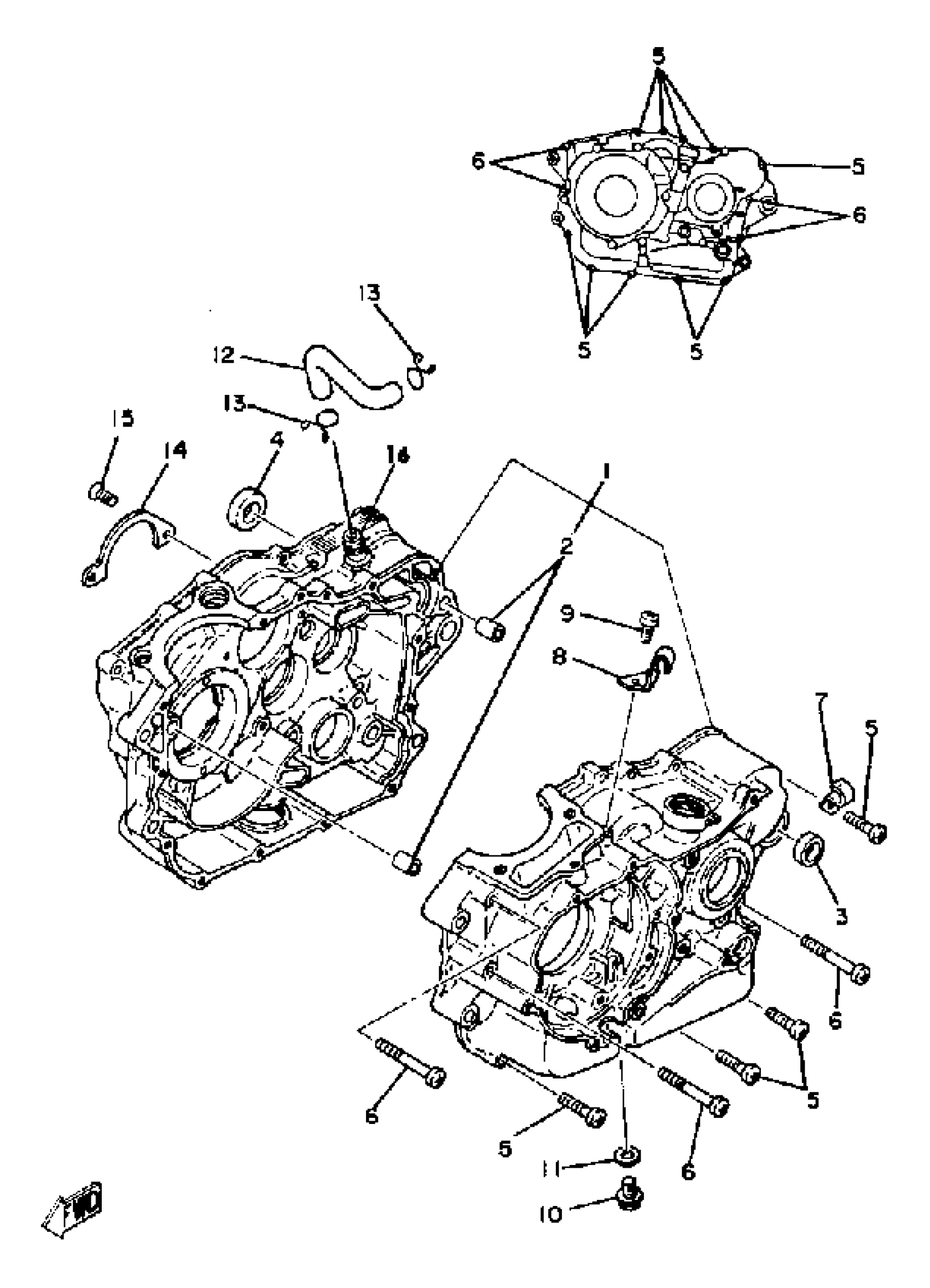

Find the part on the Crankcase diagram for your 1981 Yamaha XT250H, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XT250H Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

3Y1-15100-02-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

COLLAR

90387-17009-00

1
Out of stock

4

COLLAR (3Y1)

90387-16782-00

1

$4.65

In stock

5

SCREW, PAN

98517-06030-00

1
Out of stock

6

SCREW, PAN

98507-06060-00

1

$5.60

In stock

7

CLAMP(51Y)

90465-08277-00

—
Out of stock

8

HOLDER, CLUTCH CABLE (3Y1-15441-010

31G-15441-00-00

1
Out of stock

9

SCREW, PAN

98507-06014-00

1

$6.18

In stock

10

1

$8.44

In stock

11

WASHER, PLATE(481)

90201-10118-00

—

$2.91

In stock

12

PIPE, BREATHER 1

3Y1-11166-00-00

—

$20.75

In stock

13

CLIP (371)

90467-14015-00

1

$7.51

In stock

14

PLATE, BRNG COVER

(3Y1-15383-00-00)

1
Out of stock

15

SCREW, FLAT

98707-06014-00

1
Out of stock

16

PIPE, BREATHER 2

371-11167-01-00

—

$10.35

In stock
