1992 Yamaha Serow CA (XT225DC) Rear Wheel Diagram

← All diagrams

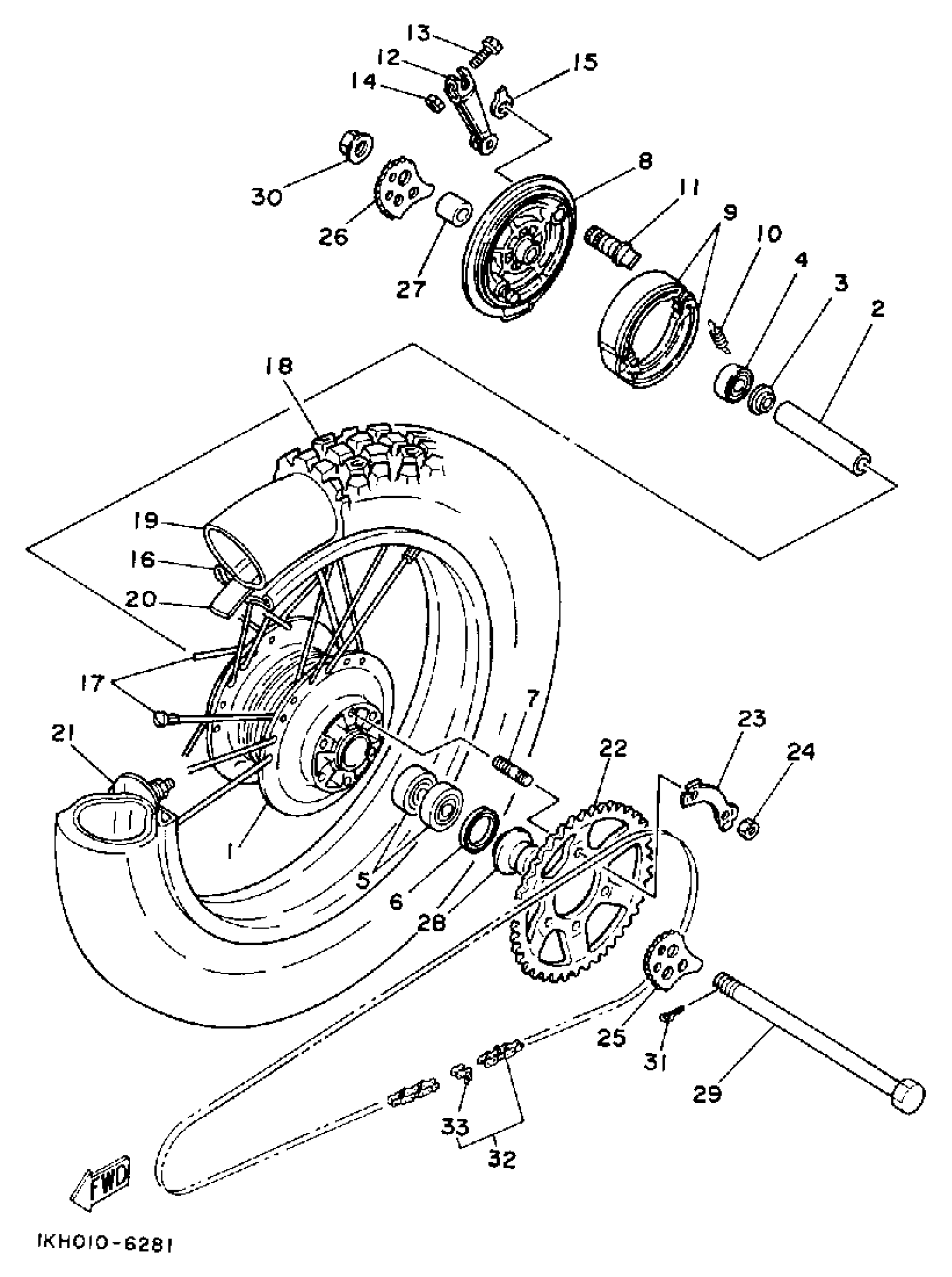

Find the part on the Rear Wheel diagram for your 1992 Yamaha Serow CA (XT225DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha Serow CA (XT225DC) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

15A-25311-00-98

1
Out of stock

2

SPACER

90560-15313-00

1

$39.77

In stock

3

FLANGE, SPACER

146-25116-00-00

1
Out of stock

4

BEARING(3DL)

93306-20226-00

1

$33.15

In stock

5

BEARING

93306-20205-00

1

$32.63

In stock

6

OIL SEAL (22X35X5)

93104-22018-00

1
Out of stock

7

BOLT, STUD (483)

90116-08218-00

1

$7.08

In stock

8

PLATE, BRAKE SHOE

15A-25321-04-98

1
Out of stock

9

BRAKE SHOE KIT

4BE-W253E-00-00

1

$22.27

In stock

10

SPRING, TENSION

90506-15260-00

1

$5.75

In stock

11

CAMSHAFT

4GL-25351-00-00

1

$62.50

In stock

12

LEVER, CAMSHAFT

5R0-25355-10-00

1
Out of stock

13

BOLT, HEXAGON (538)

90101-06278-00

1

$1.82

In stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

PLATE, INDICATOR

4H7-2533A-02-00

1
Out of stock

16

RIM (2.15-18)(1KH)

94421-18426-00

—
Out of stock

17

SPOKE SET, REAR

23J-25304-00-00

—
Out of stock

18

TIRE (120/80-18 M/C 62P TW30)

94112-182X1-00

1
Out of stock

19

TUBE (3R9)

94241-18153-00

—

$93.82

In stock

19

TUBE (3R9)

94241-18153-00

—

$93.82

In stock

20

BAND, RIM (2J4)

94340-18086-00

—

$16.00

In stock

20

BAND, RIM (2J4)

94340-18086-00

—

$16.00

In stock

21

SPACER, BEAD

3Y1-25394-00-00

—

$27.98

In stock

22

GEAR SPROCKET WHEEL (45T)

1KH-25445-00-00

—
Out of stock

23

WASHER, LOCK (3Y2)

90215-08160-00

—

$8.31

In stock

24

NUT (3Y2)

90170-08258-00

—
Out of stock

25

PULLER, CHAIN 1

5H0-25388-00-00

—
Out of stock

26

PULLER, CHAIN 2

5MP-25389-00-00

—
Out of stock

27

COLLAR(1KH)

90387-151R1-00

—

$18.69

In stock

28

COLLAR, WHEEL

1KH-25383-01-00

1
Out of stock

29

AXLE, WHEEL

99999-04097-00

—
Out of stock

30

NUT, CASTLE (4V7)

90171-14031-00

—
Out of stock

31

PIN, COTTER

91490-30030-00

—

$7.15

In stock

32

CHAIN (DID428-120L)

9Y581-33119-00

—
Out of stock

33

JOINT, CHAIN (DID428V2-FJ,1KH)

94681-33011-00

—
Out of stock
