1992 Yamaha Serow CA (XT225DC) Handlebar Cable Diagram

← All diagrams

Find the part on the Handlebar Cable diagram for your 1992 Yamaha Serow CA (XT225DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

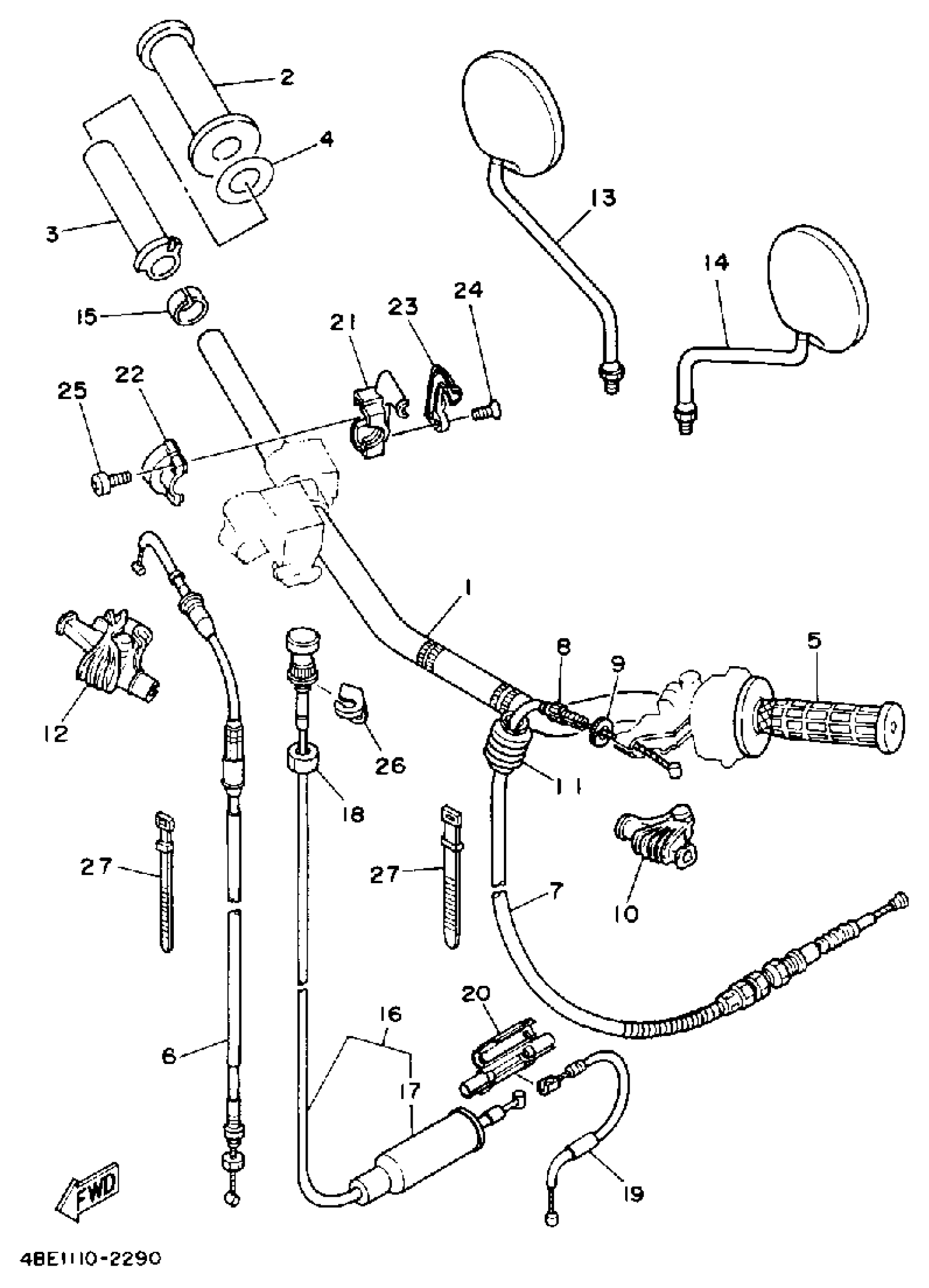

1992 Yamaha Serow CA (XT225DC) Handlebar Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

4BE-26111-01-00

—

$52.45

In stock

2

GRIP RH

33G-26242-01-00

—
Out of stock

3

TUBE, THROTTLE GUIDE

434-26243-12-00

1
Out of stock

4

RING, LEAF

1M1-26249-01-00

1
Out of stock

5

GRIP

33G-26241-01-00

—
Out of stock

6

CABLE, THROTTLE 1

3RW-26311-10-00

1

$68.17

In stock

7

CABLE, CLUTCH

5EK-26335-00-00

1

$40.09

In stock

8

BOLT

90123-08002-00

1

$8.93

In stock

9

NUT

90179-08030-00

1

$3.78

In stock

10

COVER, LEVER

1E6-26372-00-00

1

$19.91

In stock

11

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

12

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

1

$17.86

In stock

13

1

$45.60

In stock

14

MIRROR ASSY., 2

5Y1-26290-11-00

1
Out of stock

15

COLLAR (2H7)

90387-22660-00

1

$7.75

In stock

16

STARTER CABLE ASSY

2TY-F6330-00-00

1
Out of stock

17

CAP, RUBBER

1YU-26329-00-00

—
Out of stock

18

NUT

1VJ-26333-00-00

—

$6.43

In stock

19

CABLE, STARTER 2

3RW-26334-00-00

—

$28.22

In stock

20

CONNECTOR, CABLE

53L-26261-01-00

—
Out of stock

21

CAP, GRIP UPPER

38V-26281-00-98

—
Out of stock

22

CAP, GRIP UNDER (516)

493-26282-00-98

—
Out of stock

23

CAP, WIRE

38V-2628H-00-00

—
Out of stock

24

SCREW, FLAT

98707-04012-00

—

$1.43

In stock

25

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

26

HOLDER, WIRE

4BE-2637G-10-00

1
Out of stock

27

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock
