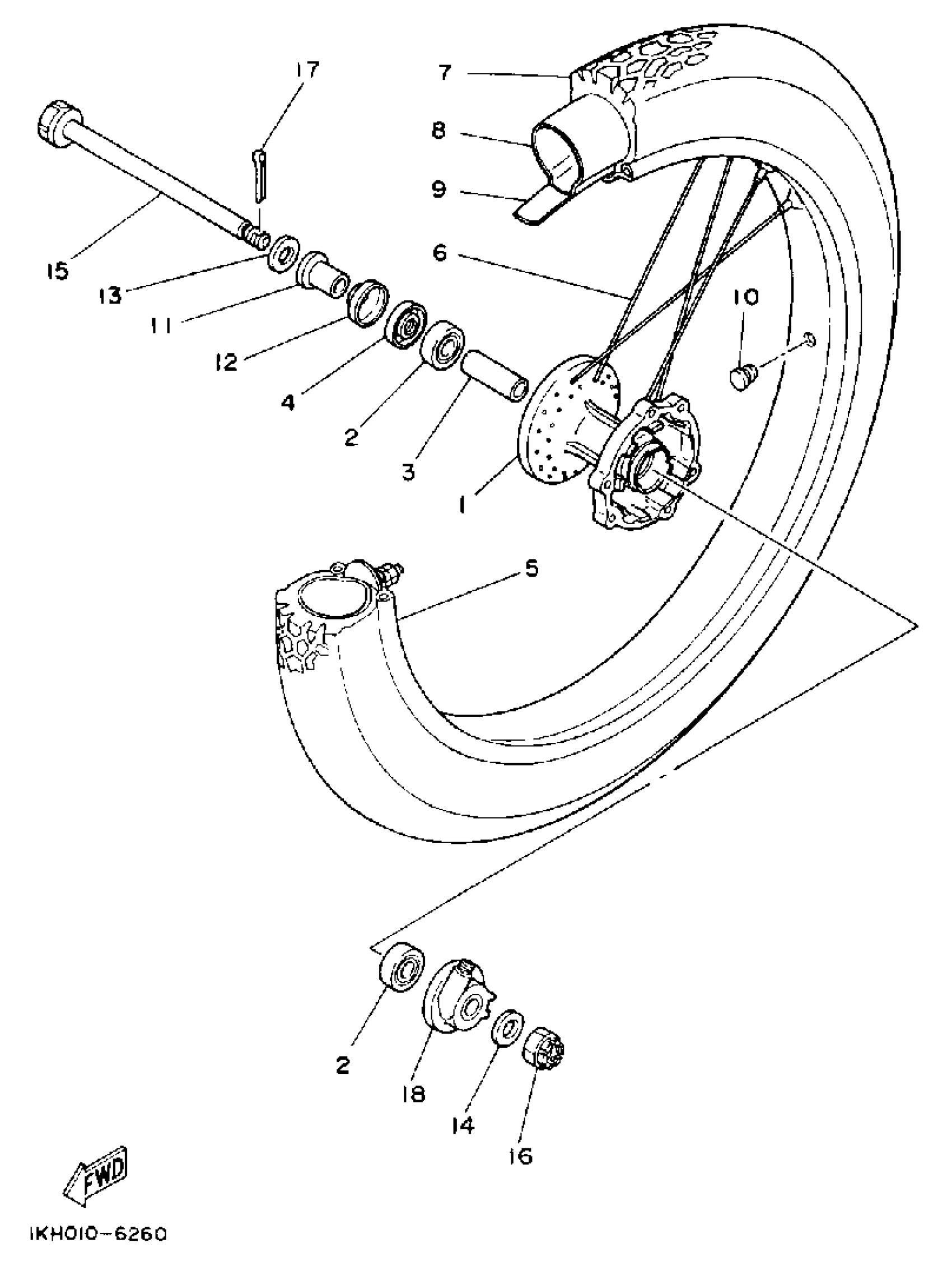

Yamaha XT225DC (SEROW CA) 1992 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

34X-25111-02-98

Unavailable

2

BEARING

93306-20205-00

$31.97

3

SPACER(1ET)

90560-15290-00

$17.06

4

OIL SEAL (23X)

93102-20281-00

$10.81

5

RIM (1.60-21)(2YY)

94416-21536-00

$445.67

6

SPOKE SET, FRONT

1KH-25104-00-00

$80.95

7

TIRE (MCS 2.75-21 4PR TW27)

94127-212X0-00

Unavailable

8

TUBE (2.75-21)(2YY)

94227-21293-00

$30.33

8

TUBE, FRONT (2A6)

94227-21123-00

$40.85

9

BAND, RIM (2A6)

94330-21084-00

$13.23

10

GROMMET (397)

90480-10068-00

$6.45

11

COLLAR (1W1)

90387-15600-00

$14.62

12

COVER, HUB DUST

322-25118-00-00

$15.27

13

WASHER, PLATE(33Y)

90201-164H4-00

$7.64

14

WASHER, PLATE (3Y2)

90201-15785-00

Unavailable

15

AXLE, WHEEL

34X-25181-00-00

Unavailable

16

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

17

PIN, COTTER

91490-30030-00

Unavailable

18

GEAR UNIT ASSY

34X-25190-01-00

Unavailable
