1992 Yamaha Serow CA (XT225DC) Rear Shocks Diagram

← All diagrams

Find the part on the Rear Shocks diagram for your 1992 Yamaha Serow CA (XT225DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

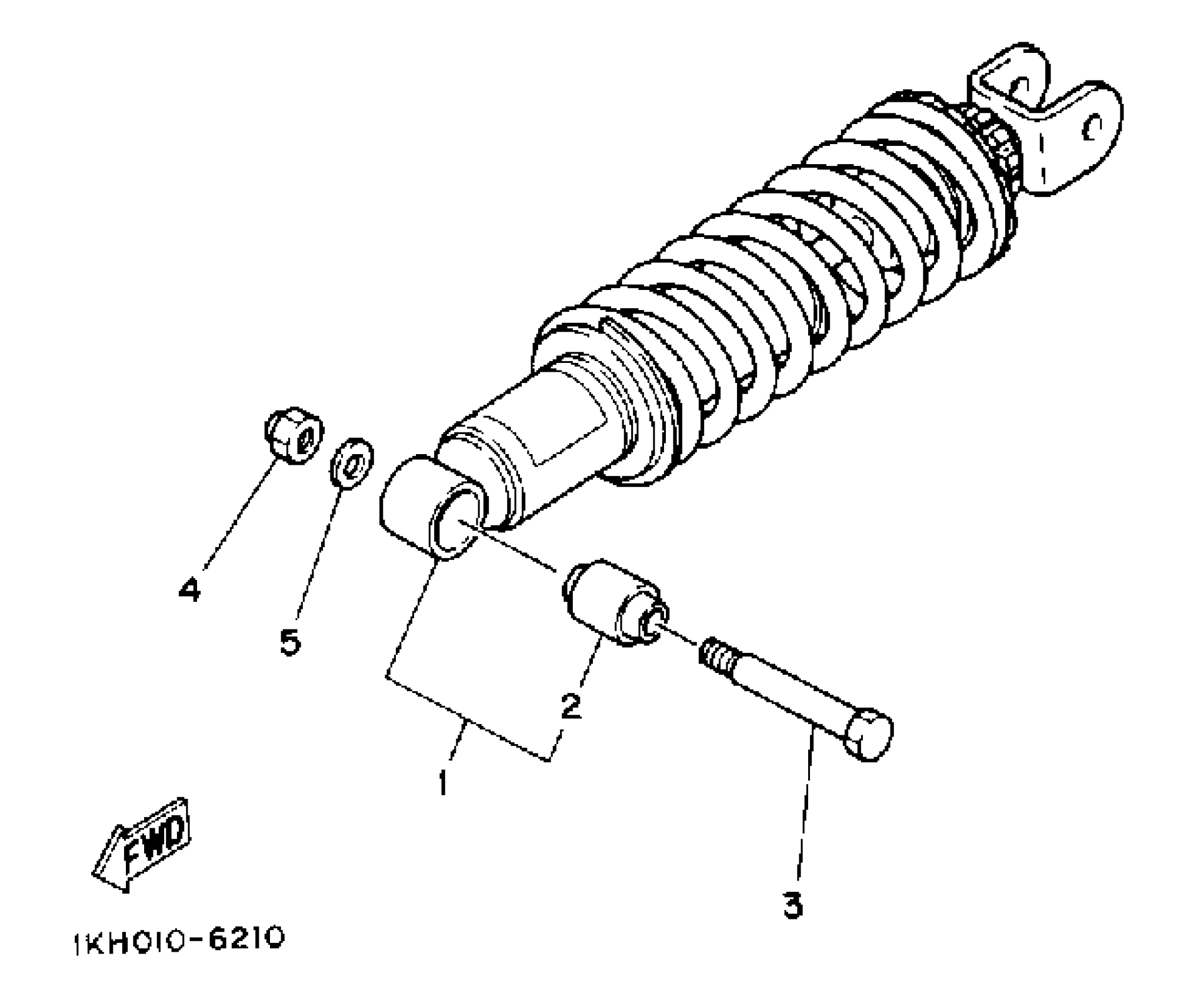

1992 Yamaha Serow CA (XT225DC) Rear Shocks Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHOCK ABSORBER ASSY, REAR

4BE-22210-10-P0

—
Out of stock

2

BUSH, REAR SHOCK ABSORBER

1YW-22216-00-00

—

$40.54

In stock

3

BOLT, WASHER BASED (26H)

90105-10250-00

—
Out of stock

4

NUT, U

95617-10100-00

1
Out of stock

5

WASHER, PLATE(6TC)

90201-10M05-00

1
Out of stock
