FRONT FORK

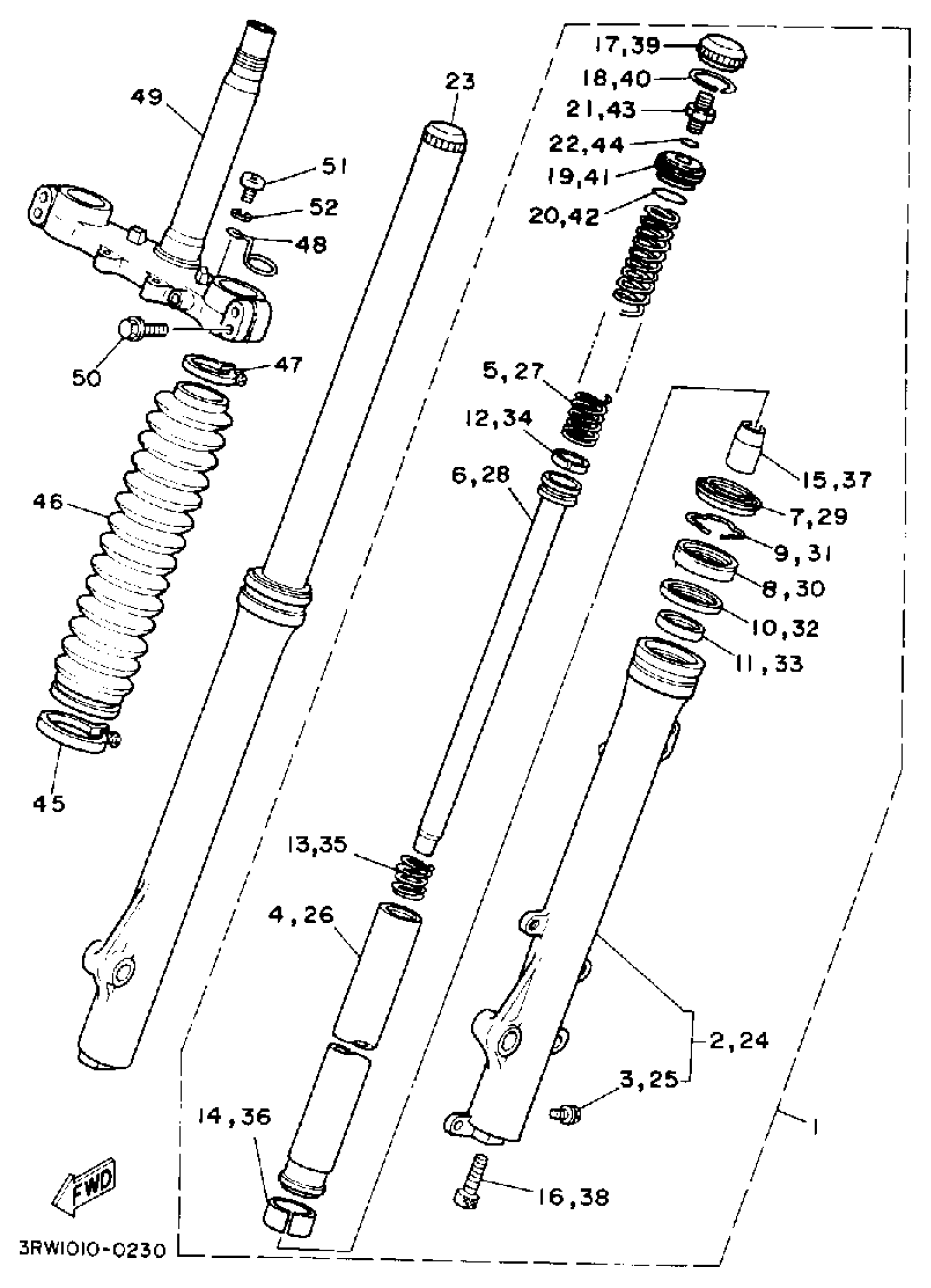

1992 Yamaha Serow CA (XT225DC) Front Fork Diagram
Find the part on the Front Fork diagram for your 1992 Yamaha Serow CA (XT225DC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FORK ASY L
3RW-23102-01-00
2
. TUBE, OUTER (LEFT)
34X-23126-00-38
4
. INNER TUBE COMP1
3RW-23110-00-00
5
. SPRING
3RW-23351-00-00
6
. PISTON, FRONT FORK
3RW-23171-00-00
15
. SPACER, OIL LOCK
1KH-23166-00-00
17
. CAP, FRONT FORK
1KH-23168-00-00
19
. BOLT, CAP
1KH-23111-00-00
20
O-RING(1HX)
93210-24709-00
21
. AIR VALVE
5K7-23190-00-00
23
FRONT FORK ASY R
3RW-23103-01-00
24
. TUBE, OUTER (RIGHT)
34X-23136-00-38
26
. INNER TUBE COMP1
3RW-23110-00-00
27
. SPRING
3RW-23351-00-00
28
. PISTON, FRONT FORK
3RW-23171-00-00
37
. SPACER, OIL LOCK
1KH-23166-00-00
39
. CAP, FRONT FORK
1KH-23168-00-00
41
. BOLT, CAP
1KH-23111-00-00
42
O-RING(1HX)
93210-24709-00
43
. AIR VALVE
5K7-23190-00-00
46
BOOT, FRONT FORK
4BE-23191-00-00
49
UNDER BRACKET COMP
1KH-23340-00-00
50
BOLT 1
10V-23346-00-00
51
WASHER, SPRING
92907-06100-00
