1982 Yamaha XT125 (XT125J) Turnsignal Diagram

← All diagrams

Find the part on the Turnsignal diagram for your 1982 Yamaha XT125 (XT125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

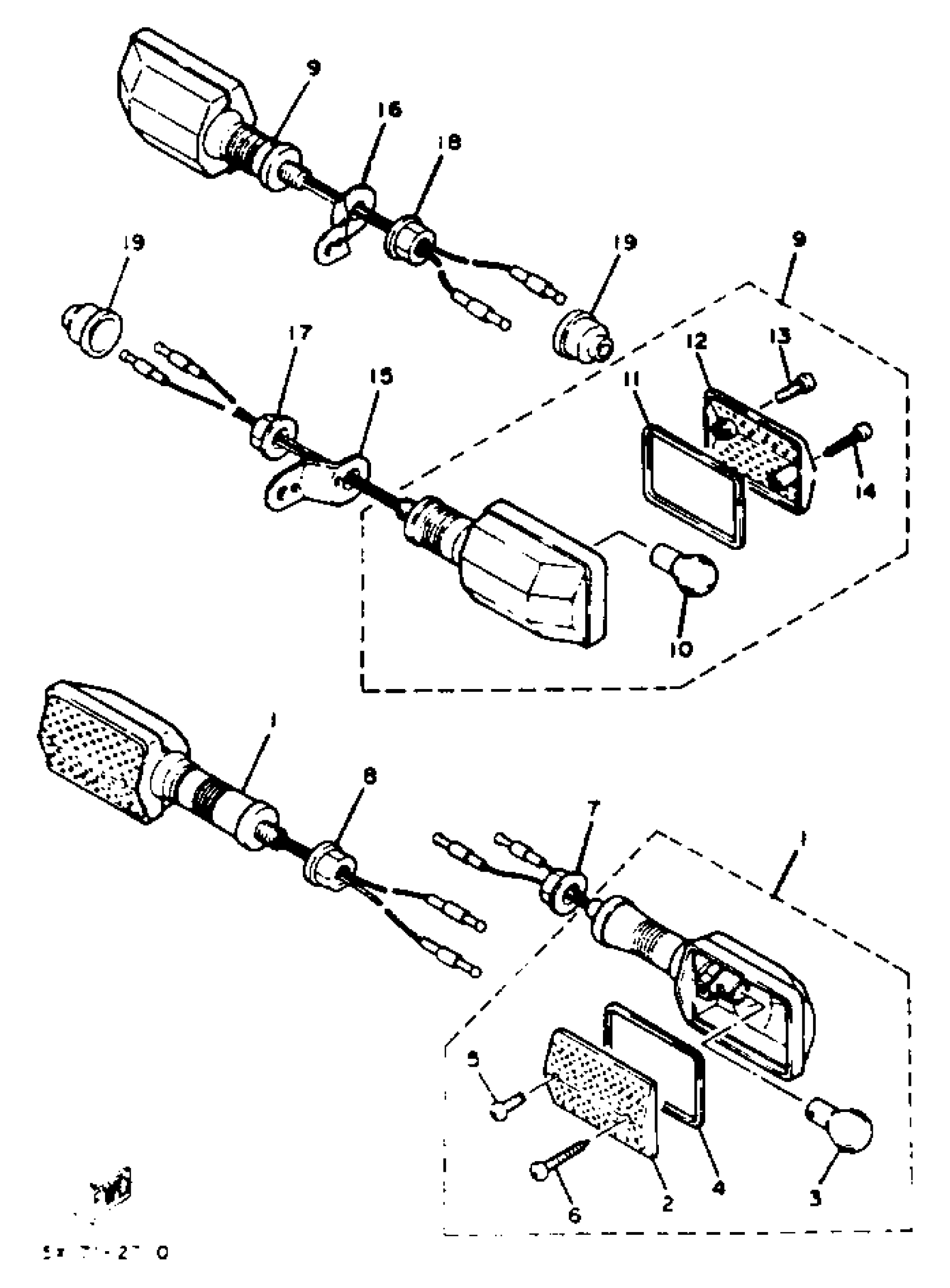

1982 Yamaha XT125 (XT125J) Turnsignal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR FLASHER LITE ASSEMBLYLIGHT ASSEMBLY 1

20G-83330-60-00

1
Out of stock

2

LENS FLASHER

5Y1-83312-00-00

1
Out of stock

3

BULB,FLASHER(6V18W)

115-83311-60-00

—

$9.05

In stock

4

GASKET, FLASHER LENS

5Y1-83313-00-00

—
Out of stock

5

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

6

SCREW, TAPPING(3AH)

97707-40630-00

1

$6.68

In stock

7

NUT(3GG)

90179-12588-00

1

$5.65

In stock

8

NUT(3GG)

90179-12588-00

1

$5.65

In stock

9

FRONT FLASHER LAMP ASSY

17F-83310-10-00

1
Out of stock

10

BULB,FLASHER(6V18W)

115-83311-60-00

—

$9.05

In stock

11

GASKET, FLASHER LENS

5Y1-83313-00-00

—
Out of stock

12

LENS FLASHER

5Y1-83312-00-00

1
Out of stock

13

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

14

SCREW, TAPPING(3AH)

97707-40630-00

1

$6.68

In stock

15

STAY, FLASHER

15A-83368-00-00

1
Out of stock

16

STAY, FLASHER

15A-83369-00-00

1
Out of stock

17

NUT(3GG)

90179-12588-00

1

$5.65

In stock

18

NUT(3GG)

90179-12588-00

1

$5.65

In stock

19

CAP

10V-83365-01-00

—

$2.83

In stock
