1982 Yamaha XT125 (XT125J) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1982 Yamaha XT125 (XT125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

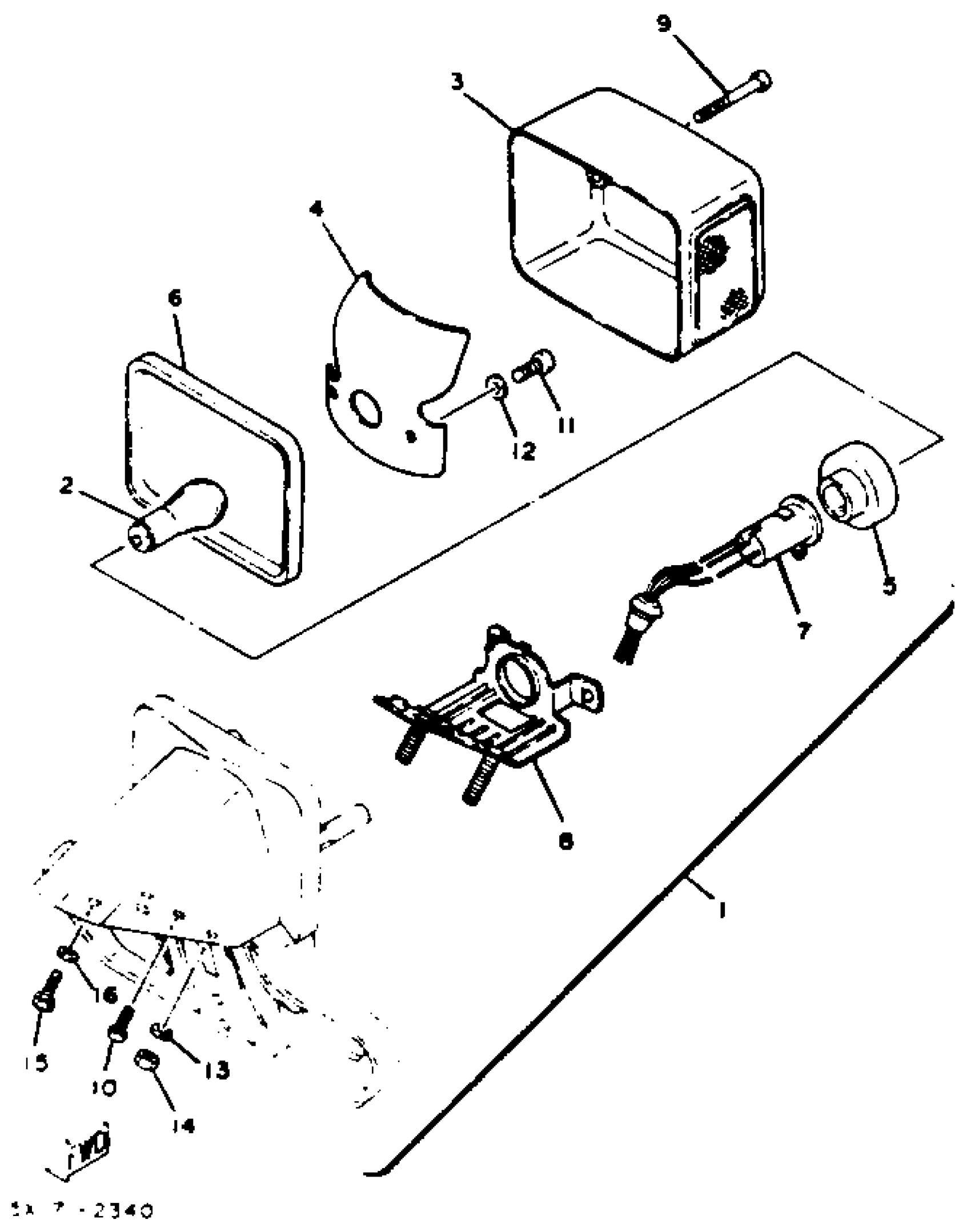

1982 Yamaha XT125 (XT125J) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT ASSEMBLY

15A-84500-60-00

1
Out of stock

2

. BULB

1M1-84514-60-00

1
Out of stock

3

LENS, TAIL LAMP

1M1-84521-60-00

1

$35.69

In stock

4

REFLECTER, TAIL LIGHT

3Y1-84531-00-00

—

$10.54

In stock

5

. DAMPER, TAIL

15A-84736-00-00

1
Out of stock

6

. GASKET, LENS

15A-84545-00-00

1
Out of stock

7

. SOCKET CORD ASSEMBLY

15A-84536-00-00

1
Out of stock

8

. BOLT, FITTING

15A-84552-00-00

1
Out of stock

9

SCREW, LENS FITTING

3Y1-84524-00-00

1
Out of stock

10

SCREW, BIND

98980-04008-00

1

$3.26

In stock

11

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

12

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
