1982 Yamaha XT125 (XT125J) Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 1982 Yamaha XT125 (XT125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

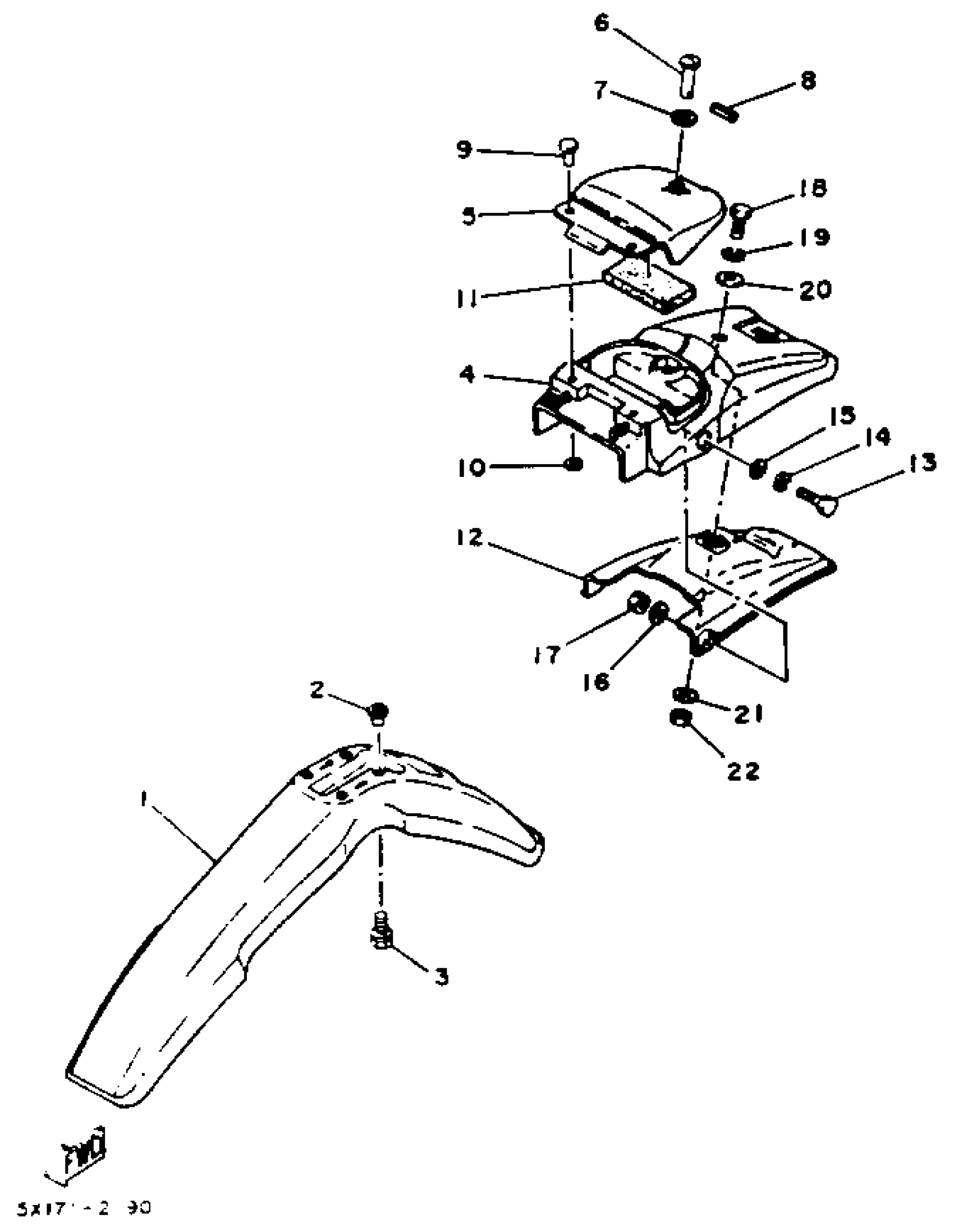

1982 Yamaha XT125 (XT125J) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

15A-21511-00-00

1
Out of stock

2

COLLAR (3Y2)

90387-07789-00

1
Out of stock

3

BOLT, WITH WASHER (10V)

90119-06063-00

1

$6.29

In stock

4

FENDER, REAR

15A-21611-00-00

1
Out of stock

5

BOX

15A-2160E-00-00

1
Out of stock

6

PIN, SPECIAL SHAPE

90249-06145-00

1
Out of stock

7

WASHER, WAVE(3RW)

90206-06090-00

1

$6.17

In stock

8

PIN, SPRING (583)

91609-25018-00

1

$5.89

In stock

9

RIVET,BLIND

90267-40080-00

1
Out of stock

10

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

11

DAMPER (2GU-21747-00-00)

15A-21649-00-00

1
Out of stock

12

REINFORCEMENT

15A-21670-00-00

1
Out of stock

13

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

16

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

17

NUT(6L2)

95333-08600-00

—

$3.20

In stock

18

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

21

WASHER, PLATE

90201-06M02-00

1

$2.23

In stock

22

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
