1982 Yamaha XT125 (XT125J) Handle Switch - Lever Diagram

← All diagrams

Find the part on the Handle Switch - Lever diagram for your 1982 Yamaha XT125 (XT125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

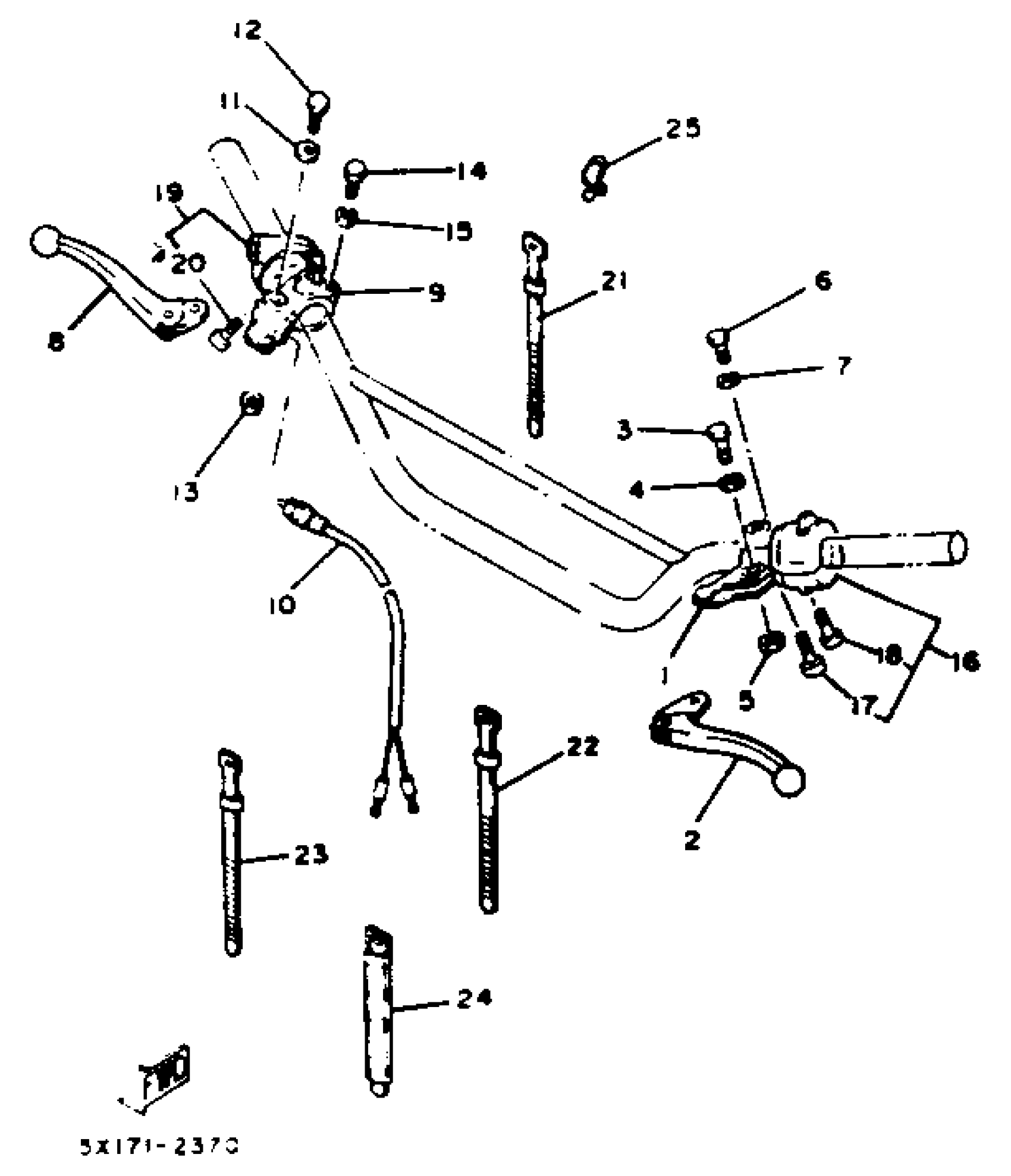

1982 Yamaha XT125 (XT125J) Handle Switch - Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, LEVER 1

3Y6-82911-00-00

1

$45.97

In stock

2

LEVER 1

3FY-83912-02-00

1
Out of stock

3

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

4

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

5

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

6

BOLT, HEXAGON

97007-06022-00

1
Out of stock

7

WASHER, SPRING

92907-06100-00

1
Out of stock

8

LEVER 2

5Y1-83922-11-00

—

$26.08

In stock

9

. LEVER HOLDER ASSEMBLY 2

361-82920-93-00

1
Out of stock

10

FRONT STOP SWITCH ASSY

395-83980-09-00

—

$34.84

In stock

11

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

12

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

13

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

14

BOLT, HEXAGON

97007-06022-00

1
Out of stock

15

WASHER, SPRING

92907-06100-00

1
Out of stock

16

SWITCH, HANDLE 3

15A-83973-00-00

1
Out of stock

17

SCREW, PAN HEAD

98517-05030-00

—

$7.92

In stock

18

SCREW, PAN HEAD(41N)

90157-05057-00

—

$2.23

In stock

19

SWITCH, HANDLE 1

15A-83976-00-00

1
Out of stock

20

SCREW, PAN HEAD(41N)

90157-05057-00

—

$2.23

In stock

21

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

22

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

23

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

24

BAND

341-26397-01-00

1
Out of stock

25

CLAMP (3Y2)

90464-16039-00

—
Out of stock
