1982 Yamaha XT125 (XT125J) Generator Diagram

← All diagrams

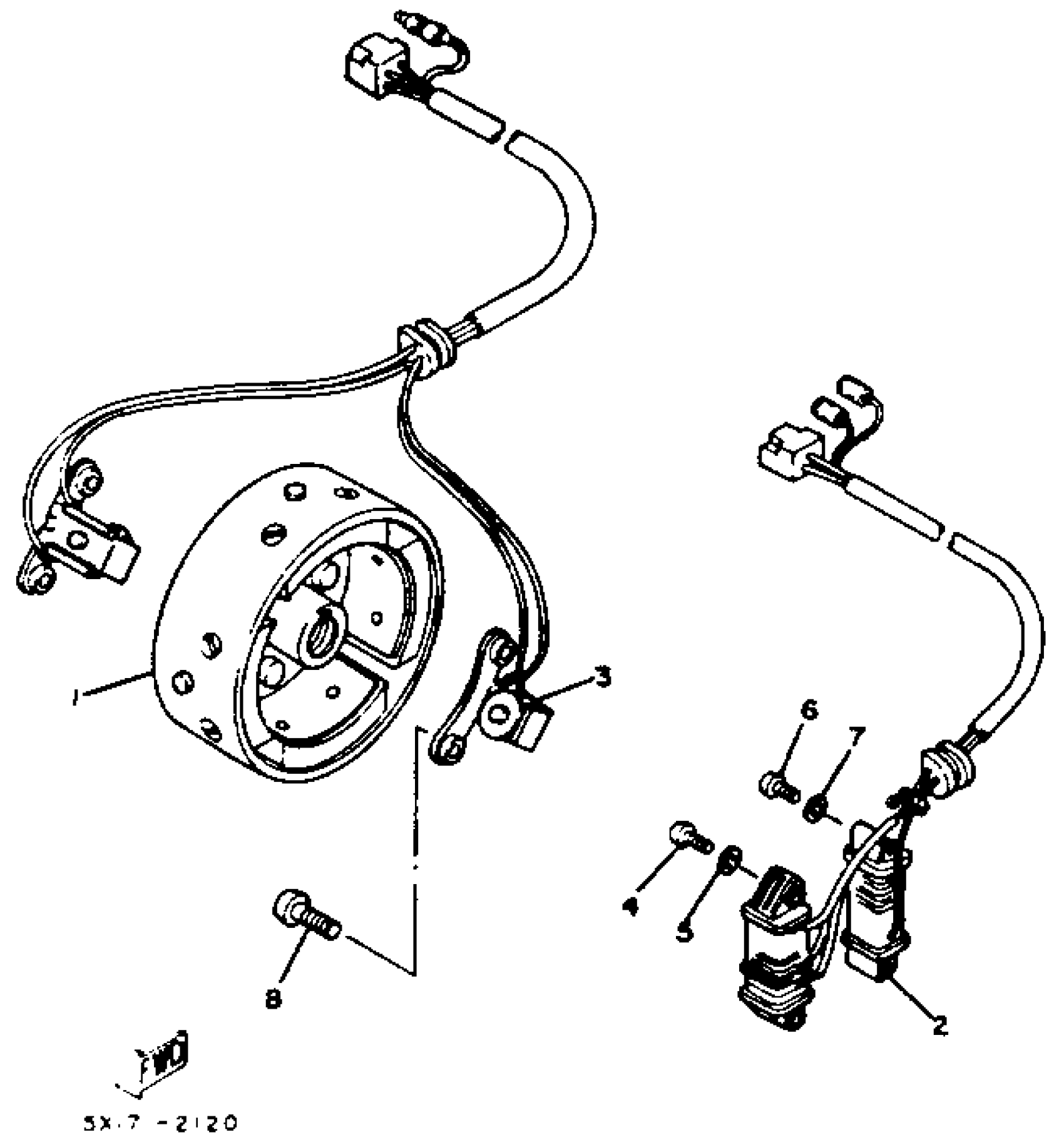

Find the part on the Generator diagram for your 1982 Yamaha XT125 (XT125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha XT125 (XT125J) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSY

15A-81350-M0-00

—

$289.83

In stock

2

STATOR ASSEMBLY

15A-81410-M0-00

1
Out of stock

3

COIL, PULSER

15A-85580-M0-00

1
Out of stock

4

SCREW, PAN

98507-05040-00

1

$6.68

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock
← Electrical 2 Handle Switch - Lever →
