1982 Yamaha XT125 (XT125J) Side Cover - Tool Diagram

← All diagrams

Find the part on the Side Cover - Tool diagram for your 1982 Yamaha XT125 (XT125J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

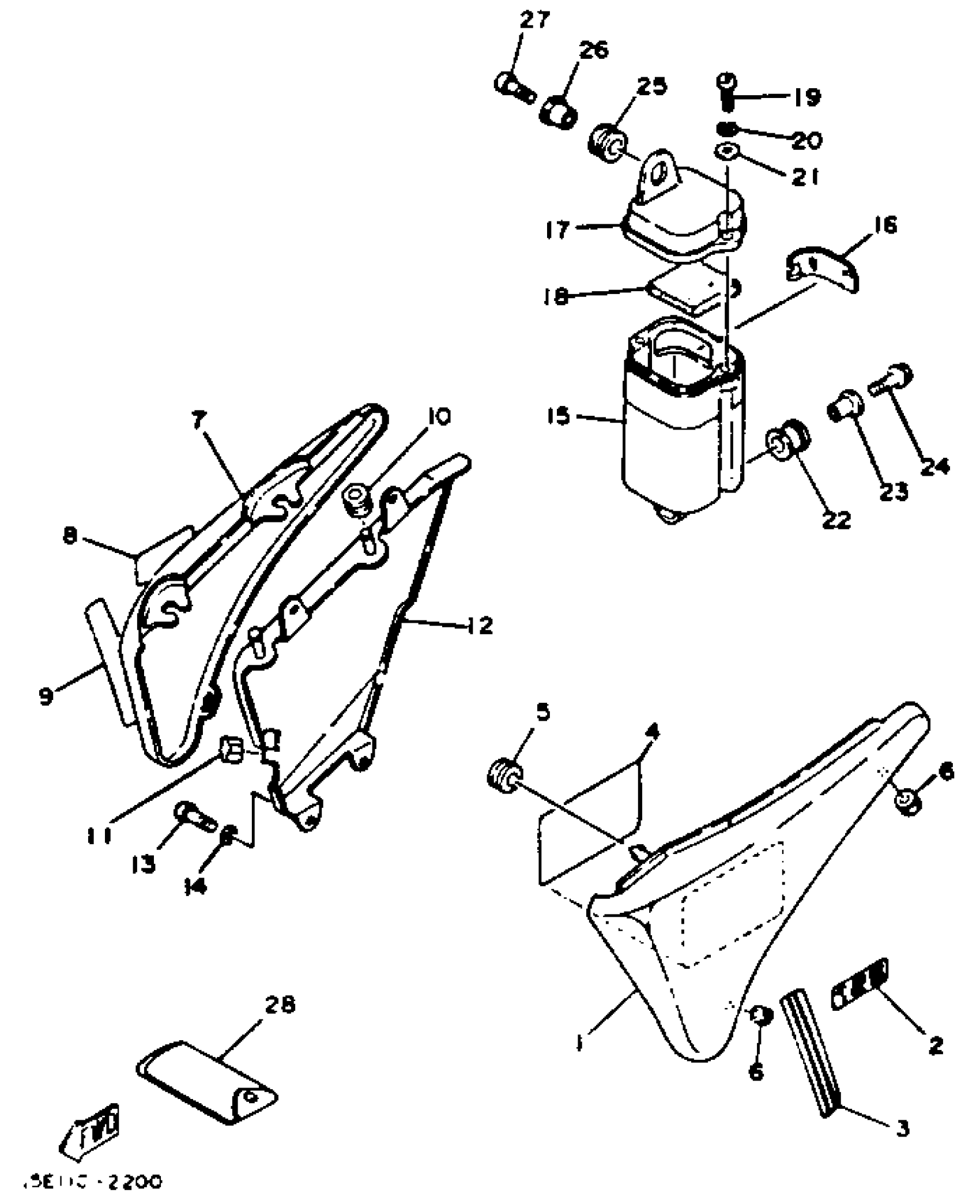

1982 Yamaha XT125 (XT125J) Side Cover - Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

15A-21711-00-E1

1
Out of stock

2

EMBLEM 1

15E-21781-00-00

1
Out of stock

3

GRAPHIC

15A-2173E-00-00

1
Out of stock

4

PLATE, SPEC

15E-21683-01-00

1
Out of stock

5

GROMMET

90480-13014-00

1

$6.85

In stock

6

GROMMET

90480-12320-00

1

$6.71

In stock

7

COVER, SIDE 2

15A-21721-00-E1

1
Out of stock

8

EMBLEM 1

15E-21781-00-00

1
Out of stock

9

GRAPHIC

15A-2173F-00-00

1
Out of stock

10

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

11

DAMPER, SIDE COVER

15A-21717-00-00

1
Out of stock

12

PROTECTOR, MUFFLER 1

15A-14718-01-00

1
Out of stock

13

SCREW, PAN

98517-06012-00

1

$3.14

In stock

14

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

15

BOX

15A-2177A-01-00

1
Out of stock

16

LID 2

15A-2177J-00-00

1
Out of stock

17

LID

15A-2177E-00-00

1
Out of stock

18

DAMPER

51L-28371-00-00

1

$7.49

In stock

19

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

20

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

21

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

22

DAMPER

15A-21746-00-00

1
Out of stock

23

COLLAR

90387-06166-00

—
Out of stock

24

BOLT, FLANGE

95817-06030-00

—

$3.91

In stock

25

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

26

COLLAR

90387-06158-00

—

$6.17

In stock

27

BOLT, FLANGE

95817-06025-00

—

$1.46

In stock

28

TOOL KIT

36X-W2810-00-00

—

$88.60

In stock
