1981 Yamaha XS650 (XS650H) Taillight Diagram

← All diagrams

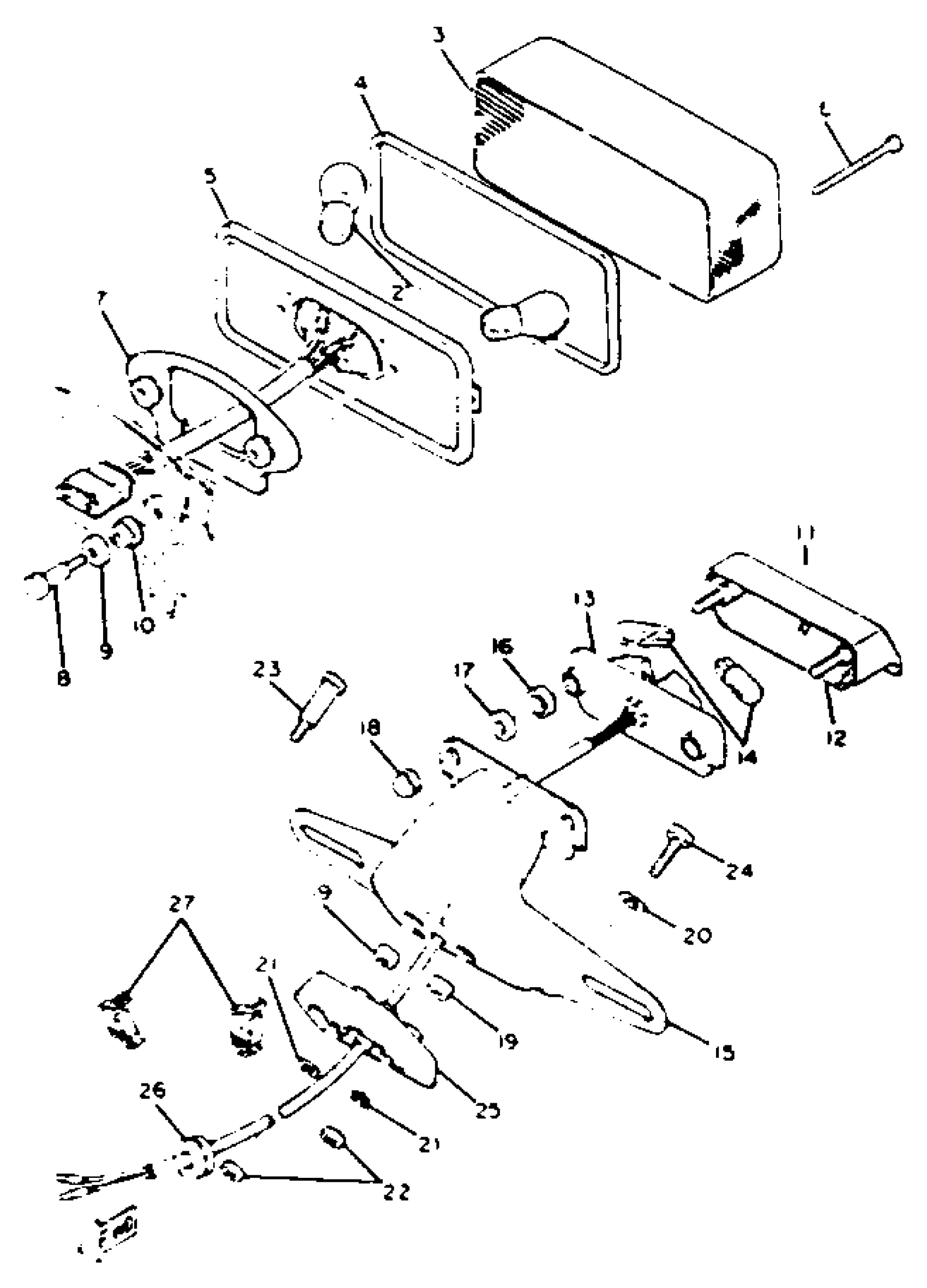

Find the part on the Taillight diagram for your 1981 Yamaha XS650 (XS650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XS650 (XS650H) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. TAILLIGHT UNIT ASSY

3G1-84710-60-00

1
Out of stock

2

1

$10.02

In stock

3

. LENS, TAILLIGHT

1A8-84721-61-00

1
Out of stock

4

. GASKET, TAIL LENS

1A0-84723-60-00

1
Out of stock

5

. TAILLIGHT UNIT ASSY

3G1-84710-60-00

1
Out of stock

6

SCREW, PANHEAD (4G7)

98580-04055-00

—

$7.02

In stock

7

SEAT, BASE

3G1-84712-00-00

1
Out of stock

8

SCREW

3G1-84726-00-00

1
Out of stock

9

WASHER, SPECIAL

2H7-84754-00-00

1
Out of stock

10

GROMMET

90480-16113-00

1
Out of stock

11

LICENSE LITE ASSY

1UF-84745-A0-00

1
Out of stock

12

. BODY, LICENCE LIGHT

3F9-84749-00-00

1
Out of stock

13

BASE, LICENSE LIGHT

(3G1-84741-00-00)

1
Out of stock

14

. BULB, METER 12V 38W

3F9-84744-00-XX

1
Out of stock

15

BRACKET, LICENSE

3G1-84751-00-93

1
Out of stock

16

DAMPER

3G1-84753-00-00

1
Out of stock

17

WASHER, SPECIAL

3F9-84754-00-00

—

$1.78

In stock

18

NUT (CROWN)

95303-05800-00

1
Out of stock

19

DAMPER

3G1-84753-60-00

1
Out of stock

20

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

23

BOLT

3G1-84761-00-00

1
Out of stock

24

BOLT

90109-06655-00

1
Out of stock

25

DAMPER

3G1-84753-00-00

1
Out of stock

26

GROMMET (438)

90480-15061-00

—

$6.68

In stock

27

CLAMP (1J7)

90464-16021-00

—

$10.86

In stock
