1981 Yamaha XS650 (XS650H) AC Generator Diagram

← All diagrams

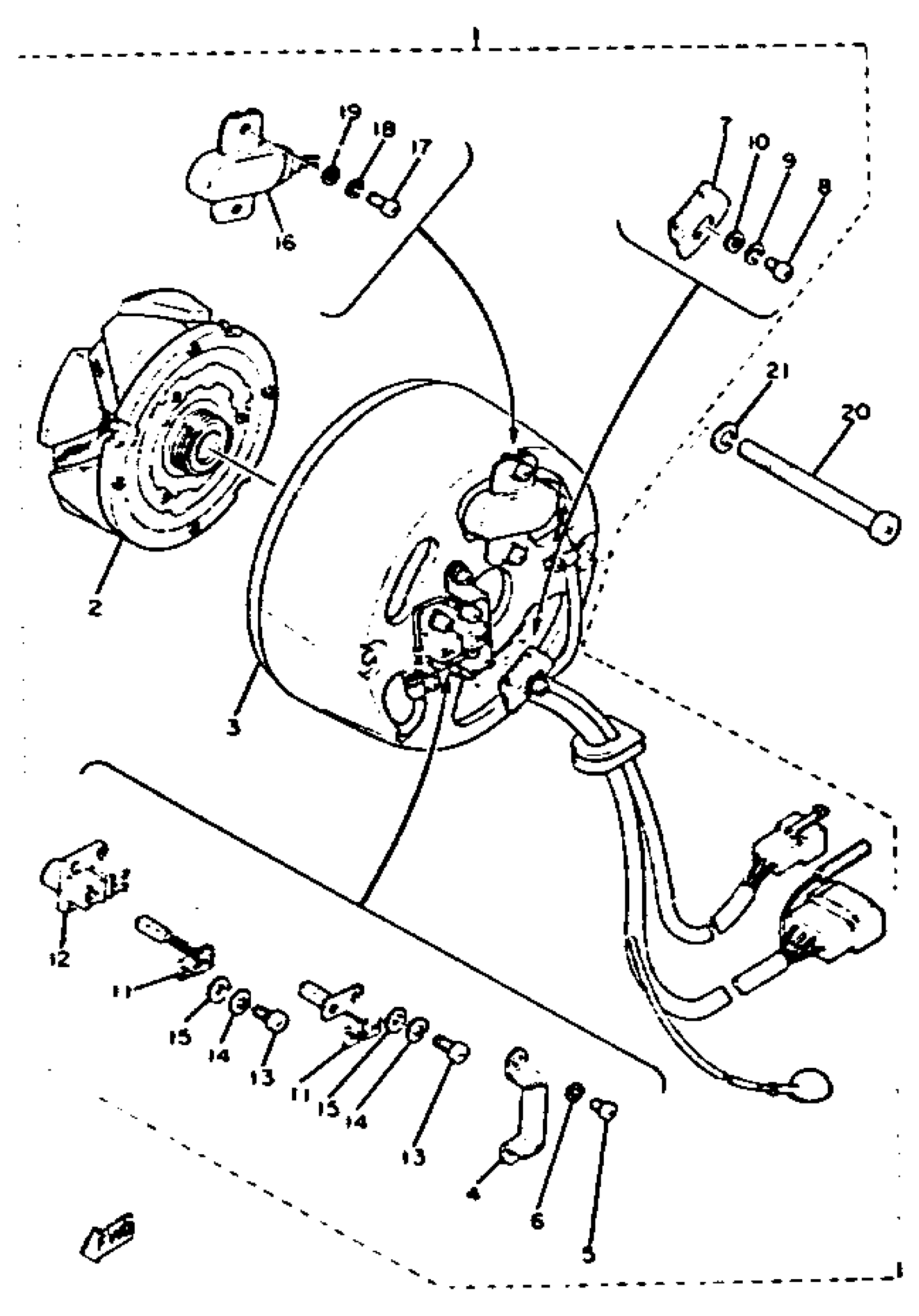

Find the part on the AC Generator diagram for your 1981 Yamaha XS650 (XS650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XS650 (XS650H) AC Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AC GENERATOR ASSEMBLY

(4M4-81600-10-00)

1
Out of stock

2

. ROTOR ASSEMBLY

3G1-81650-10-00

1
Out of stock

3

. STATOR ASSEMBLY

4M4-81610-10-00

1
Out of stock

4

PROTECTOR

(256-81614-10-00)

1
Out of stock

5

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

6

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

7

PLATE, TIMING

(4M4-81632-10-00)

1
Out of stock

8

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

9

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

10

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

11

.. BRUSH 1

256-81611-11-00

1
Out of stock

12

.. HOLDER, BRUSH

3G1-81613-10-00

1
Out of stock

13

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

14

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

15

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

16

.. PICK-UP ASSEMBLY

4M4-81670-10-00

1
Out of stock

17

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

18

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

19

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

20

SCREW PAN HEAD

98580-06575-00

—

$10.95

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
