1981 Yamaha XS650 (XS650H) Headlight Diagram

← All diagrams

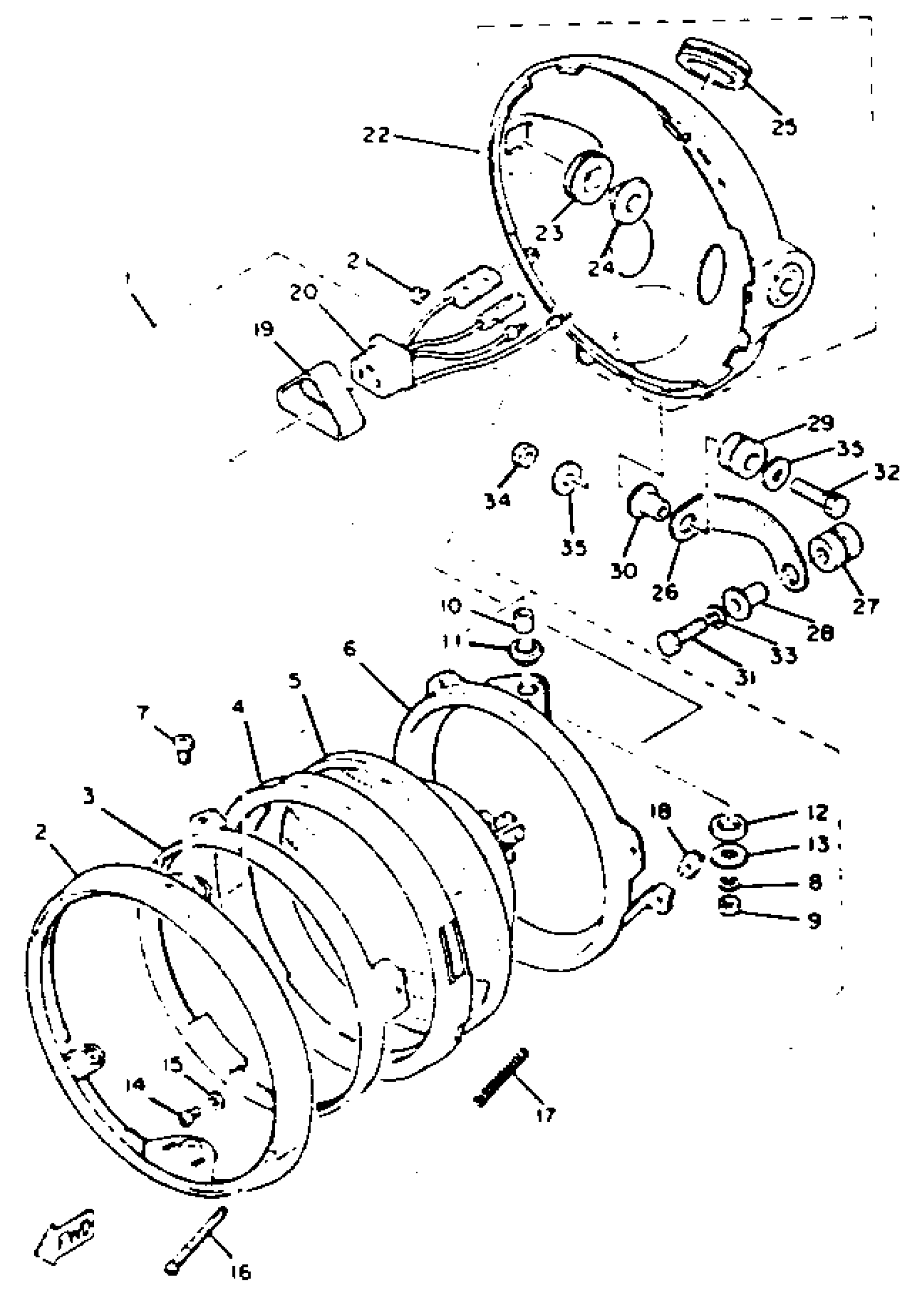

Find the part on the Headlight diagram for your 1981 Yamaha XS650 (XS650H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha XS650 (XS650H) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

584-84310-61-00

1
Out of stock

2

RIM, HEAD LAMP

341-84315-40-00

1
Out of stock

3

. RING, RETAINING

447-84395-60-00

1
Out of stock

4

. GASKET, LENS

447-84322-60-00

1
Out of stock

5

. LENS ASSEMBLY

341-84320-60-00

1
Out of stock

6

RING,MOUNTING

447-84394-69-00

1
Out of stock

7

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

10

. COLLAR 1

584-84392-60-00

1
Out of stock

11

. DAMPER

584-84393-60-00

1
Out of stock

12

. DAMPER, MNTNG RNG 1

584-84399-60-00

1
Out of stock

13

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

14

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

15

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

16

. SCREW, RIM ADJUSTING

447-84331-61-00

1
Out of stock

17

SPRING, COMPRESSION (ITALY)

447-84332-60-00

—

$9.22

In stock

18

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

19

. COVER, SOCKET

341-84397-61-00

1
Out of stock

20

SOCKET

371-84312-60-00

—

$26.52

In stock

21

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

22

BODY ASY

584-84330-61-33

1
Out of stock

23

DAMPER, HEAD LAMP

584-84345-60-00

—
Out of stock

24

COLLAR 2

584-84338-60-00

—
Out of stock

25

GROMMET, WIREHARNESS

214-84153-60-00

—
Out of stock

26

STAY, HEADLIGHT 1

2M0-84318-00-00

1
Out of stock

27

GROMMET

90480-14244-00

1
Out of stock

28

COLLAR

90387-07549-00

1
Out of stock

29

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

30

COLLAR

90387-06158-00

—

$6.17

In stock

31

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

32

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

33

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

34

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

35

WASHER, PLATE

90201-06380-00

—

$0.57

In stock
