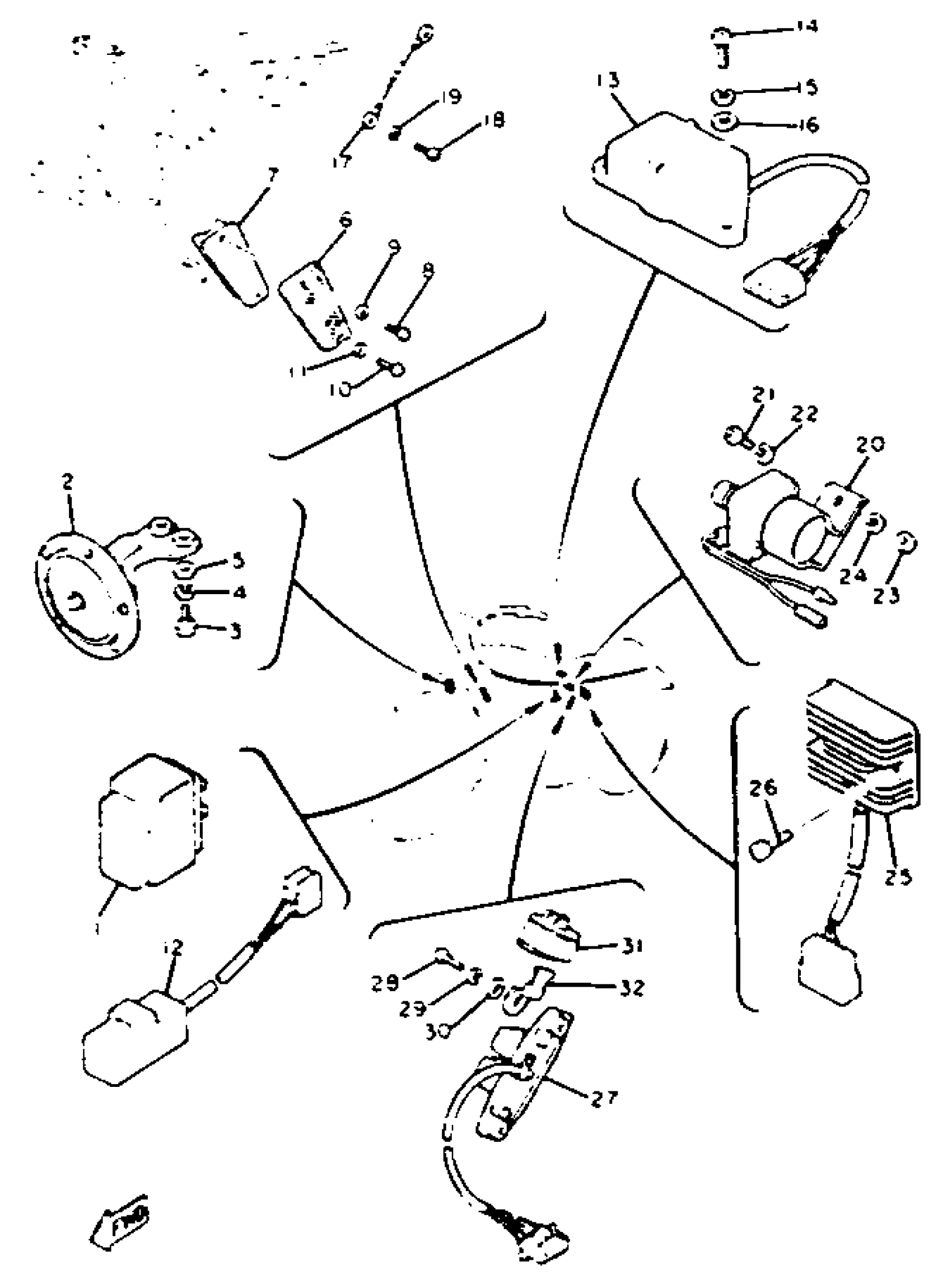

Yamaha XS650H (XS650) 1981 ELECTRICAL 2 Diagram

#

Description
Price

1

FLASHER RELAY ASSEMBLY

3G1-83350-70-00

Unavailable

2

HORN

3N0-83371-50-00

Unavailable

3

BOLT, HEXAGON

97017-08025-00

$6.95

4

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

5

WASHER, PLATE (4W3)

90201-086A3-00

$5.86

6

FRONT REFLECTOR ASSEMBLY

3G1-85110-00-00

Unavailable

7

BASE, REFLECTOR

3G1-85127-00-00

Unavailable

8

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.60

9

WASHER, PLAIN (646)

92990-04600-00

$0.91

10

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.60

11

WASHER, PLAIN (646)

92990-04600-00

$0.91

12

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable

13

RSRV LIGHTING UNIT ASSEMBLY

1T3-84308-00-00

Unavailable

14

SCREW, PAN HEAD(6E5)

97880-06018-00

$3.94

15

WASHER, SPRING

92995-06100-00

$2.95

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

17

WIRE, LEAD

256-81615-00-00

Unavailable

18

SCREW, PAN HEAD(6A3)

97885-06008-00

$1.07

19

WASHER, SPRING

92995-06100-00

$2.95

20

STARTER SWITCH ASSEMBLY

447-81940-10-00

Unavailable

21

SCREW, PAN

98507-06014-00

Unavailable

22

WASHER, SPRING

92995-06100-00

$2.95

23

NUT(650)

95380-06700-00

Unavailable

24

WASHER, SPRING

92995-06100-00

$2.95

25

RECTIFIER & REGULATOR ASSY

3G1-81960-A1-00

Unavailable

26

BOLT

(90109-06558-00)

Unavailable

27

RELAY ASSEMBLY

2F0-81950-50-00

Unavailable

28

SCREW, PAN HEAD(6E0)

97885-06030-00

$4.33

29

WASHER, SPRING

92995-06100-00

$2.95

30

WASHER, PLATE

90201-06M08-00

$2.16

31

RELAY ASSY

12R-81950-02-00

Unavailable

32

STAY, RELAY

4M4-81953-00-00

Unavailable
