1972 Yamaha XS2 (XS2) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

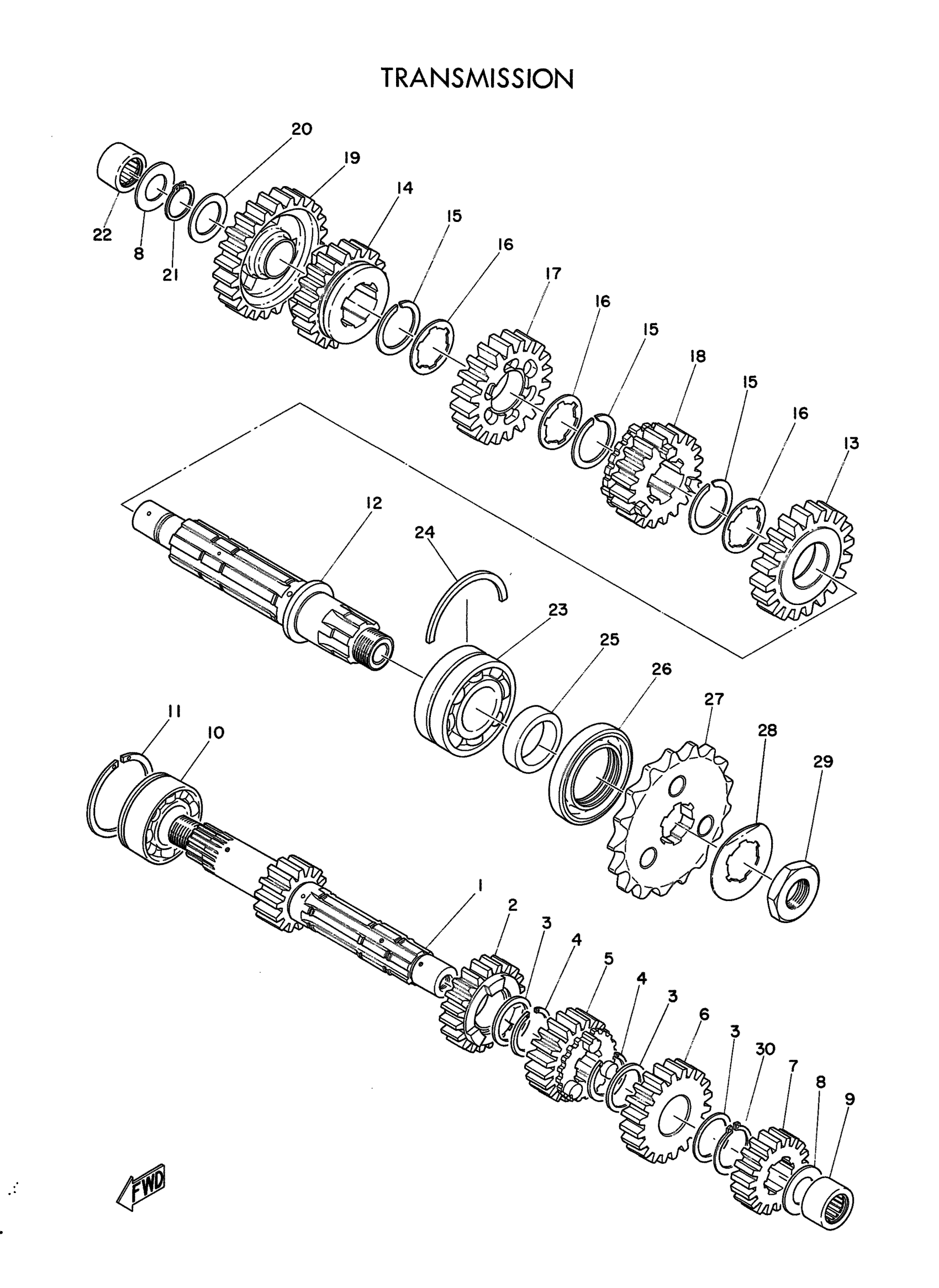

1972 Yamaha XS2 (XS2) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

(256-17411-00-00)

1
Out of stock

1

AXLE, MAIN

(306-17411-00-00)

1
Out of stock

2

GEAR, 4TH PINION

(256-17141-01-00)

1
Out of stock

3

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

3

WASHER, PLATE(59W)

90201-253K0-00

1

$6.18

In stock

4

CIRCLIP

93440-25020-00

1
Out of stock

5

GEAR, 3RD PINION

(256-17131-00-00)

1
Out of stock

6

GEAR, 3RD PINION

(256-17131-03-00)

1
Out of stock

6

GEAR, 5TH PINION

(341-17151-03-00)

1
Out of stock

6

GEAR 5TH PINION

(99999-00906-00)

1
Out of stock

7

GEAR, 2ND PINION

(256-17121-00-00)

1
Out of stock

8

SHIM 1

137-17427-00-06

1
Out of stock

8

SHIM 1

(137-17427-00-09)

1
Out of stock

9

BEARING, CYLINDER.#13

(93313-32006-00)

1
Out of stock

9

BEARING, CYLINDER.#13

93313-32007-00

1
Out of stock

10

BEARING(89A)

93305-20509-00

—

$102.63

In stock

11

CIRCLIP (256)

93440-52014-00

—

$8.94

In stock

12

AXLE, DRIVE

(256-17421-00-00)

1
Out of stock

13

. GEAR, 2ND WHEEL

256-17221-01-00

1
Out of stock

13

GEAR, 3RD WHEEL

(256-17231-03-00)

1
Out of stock

13

. GEAR, 5TH WHEEL

256-17251-03-00

1
Out of stock

13

3RD 4TH WHEEL GEAR

(99999-00977-00)

1
Out of stock

14

GEAR, 4TH WHEEL (23T)

256-17241-01-00

1
Out of stock

15

CIRCLIP, OUTER

93440-30015-00

1
Out of stock

16

WASHER, GEAR HOLD 3

256-17236-00-10

1
Out of stock

16

WASHER, GEAR HOLD 3

256-17236-00-12

1
Out of stock

17

. GEAR, 2ND WHEEL

256-17221-01-00

1
Out of stock

17

GEAR, 3RD WHEEL

(256-17231-03-00)

1
Out of stock

17

. GEAR, 5TH WHEEL

256-17251-03-00

1
Out of stock

17

3RD 4TH WHEEL GEAR

(99999-00977-00)

1
Out of stock

18

. GEAR, 2ND WHEEL

256-17221-01-00

1
Out of stock

18

GEAR, 3RD WHEEL

(256-17231-03-00)

1
Out of stock

18

. GEAR, 5TH WHEEL

256-17251-03-00

1
Out of stock

18

3RD 4TH WHEEL GEAR

(99999-00977-00)

1
Out of stock

19

GEAR, 1ST WHEEL

(256-17211-00-00)

1
Out of stock

19

GEAR, 1ST WHEEL

306-17211-00-00

1
Out of stock

20

WASHER PLATE 132172160000

90201-20266-00

—
Out of stock

21

CIRCLIP, S-TYPE

93410-20021-00

1
Out of stock

22

BEARING, CYLINDER.#13

93313-32005-00

1
Out of stock

23

BEARING

93305-20603-00

1
Out of stock

24

CIRCLIP 1

168-17424-00-00

1
Out of stock

25

COLLAR

90387-30200-00

1
Out of stock

26

OIL SEAL (40X62X9-447)

93105-40018-00

—

$18.77

In stock

27

SPROCKET, DRIVE

93855-17129-00

1
Out of stock

28

WASHER, LOCK

90215-26024-00

1
Out of stock

29

NUT, SPEC''L SHAPE

90179-22022-00

1
Out of stock

30

CIRCLIP (256)

93410-25017-00

—
Out of stock

30

CIRCLIP

93440-25020-00

1
Out of stock
