1972 Yamaha XS2 (XS2) Master - Cylinder Diagram

← All diagrams

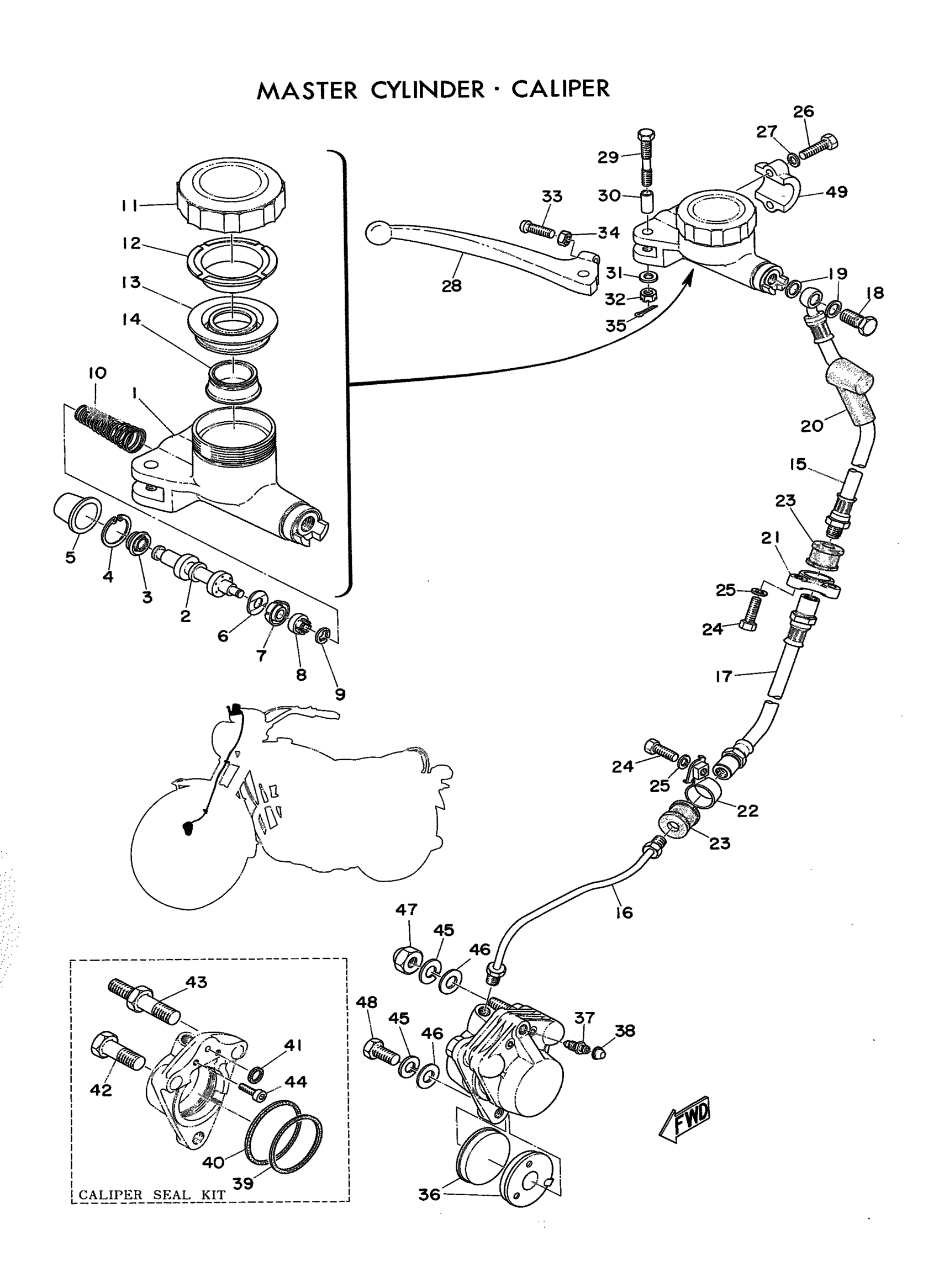

Find the part on the Master - Cylinder diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha XS2 (XS2) Master - Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MSTR CYLINDER ASSEMBLY

(366-25850-02-00)

1
Out of stock

2

CYLINDER KIT, MASTER

1A0-W0041-00-00

—
Out of stock

3

CUP KIT

(306-20000-20-00)

1
Out of stock

3

CUP KIT

(360-20000-20-00)

1
Out of stock

4

RESERVER KIT

(306-20000-30-00)

1
Out of stock

5

CALIPER ASSEMBLY (306-25810-09)

306-25810-0A-00

1
Out of stock

6

. CALIPER SEAL KIT

306-20000-51-00

1
Out of stock

11

.. CAP, RESERVOIR

306-25852-00-00

1
Out of stock

11

.. CAP, RESERVOIR

360-25852-00-00

1
Out of stock

12

BUSH,DIAPHRAGM

2GU-25855-00-00

1
Out of stock

12

BUSH, DIAPHRAGM

(306-25855-00-00)

1
Out of stock

13

DIAPHRAGM RESERVOR

(306-25854-00-00)

1
Out of stock

13

DIAPHRAGM, RESERVER

360-25854-01-00

1
Out of stock

14

FLOAT, RESERVOIR

(306-25853-00-00)

1
Out of stock

14

.. FLOAT, RESERVOIR

360-25853-00-00

1
Out of stock

15

HOSE, BRAKE 1

306-25872-06-00

1
Out of stock

16

PIPE, BRAKE

306-25871-00-00

1
Out of stock

17

HOSE, BRAKE 2 (306-25873-04)

306-25873-05-00

1
Out of stock

18

BOLT, UNION(3GM)

90401-10159-00

—

$8.85

In stock

19

WASHER, PLATE(481)

90201-10118-00

—

$2.91

In stock

20

BOOT, MASTER CYLINDER

306-25862-00-00

—

$42.71

In stock

21

HOLDER, BRKE HOSE 1

(306-25875-00-00)

1
Out of stock

22

HOLDER, BRKE HOSE 2

(306-25876-00-00)

1
Out of stock

23

PROTC, BRAKE HOSE

306-25881-00-00

1
Out of stock

24

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

24

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

LEVER R

306-83922-01-00

1
Out of stock

29

BOLT (306-83925-00)

90109-06103-00

1
Out of stock

30

NUT, SPEC''L SHAPE

(90179-06171-00)

1
Out of stock

31

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

32

NUT, SLTED

95307-05900-00

1
Out of stock

33

SCREW

90146-06005-00

1
Out of stock

34

NUT HEXAGON 306839270000

90170-06010-00

—

$6.17

In stock

34

NUT(650)

95380-06700-00

—

$6.17

In stock

35

. PIN, COTTER

91401-12018-00

1
Out of stock

36

. BRAKE PAD KIT, FRNT

1A1-W0045-00-00

1
Out of stock

36

. BRAKE PAD KIT, FRNT

1A1-W0045-00-00

1
Out of stock

37

. SCREW, BLEED

306-25824-00-00

1
Out of stock

38

CAP

306-25825-01-00

—

$8.70

In stock

44

. BOLT 3

306-25826-01-00

1
Out of stock

45

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

46

—

$3.00

In stock

47

NUT, CROWN (650)

95380-10800-00

1

$14.70

In stock

48

BOLT

(90109-10041-00)

1
Out of stock

49

BRACKET, MASTER

1J3-25867-00-00

1
Out of stock

50

—

$6.17

In stock
