1972 Yamaha XS2 (XS2) Gear Train Diagram

← All diagrams

Find the part on the Gear Train diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

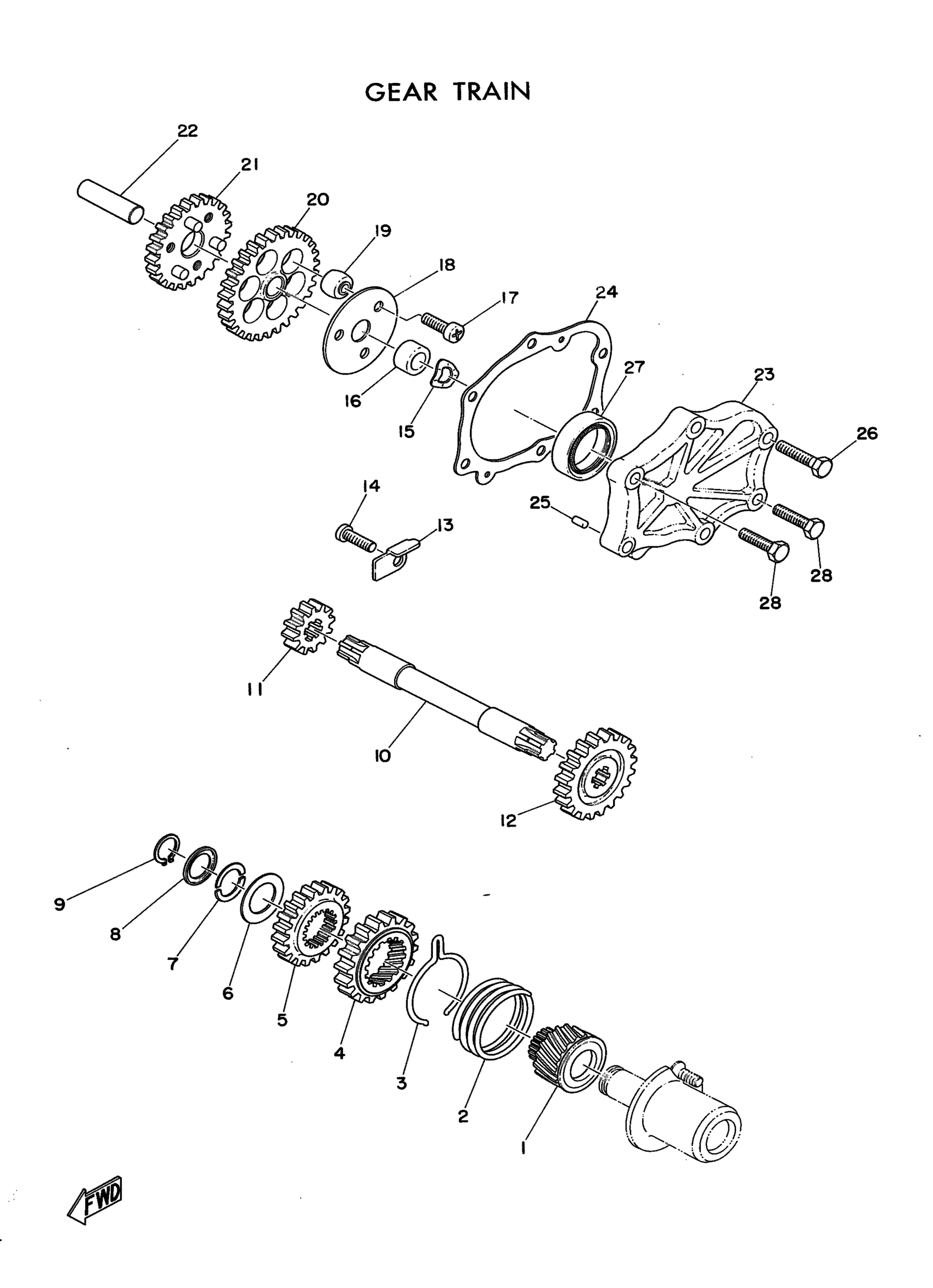

1972 Yamaha XS2 (XS2) Gear Train Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL STARTER

306-Y1554-00-00

1
Out of stock

2

SPRING, COMPRESSION

90501-15409-00

1
Out of stock

3

. CLIP

90468-29062-00

1
Out of stock

4

. GEAR 4

447-15516-00-00

1
Out of stock

4

. CLIP

90468-29062-00

1
Out of stock

4

SPRING, COMPRESSION

90501-15409-00

1
Out of stock

4

GEAR 4 (25T) (306-15516-00)

99999-00959-00

1
Out of stock

5

GEAR 3

306-15515-00-00

1
Out of stock

6

WASHER PLATE 306155610000

90201-17257-00

1

$6.42

In stock

7

CLIP

306-15562-00-00

1
Out of stock

8

HOLDER, CLIP

306-15563-00-00

1
Out of stock

9

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

10

SHAFT 2

306-15522-00-00

1
Out of stock

11

GEAR 2

306-15514-00-00

1
Out of stock

12

GEAR 1

306-15513-00-00

1
Out of stock

13

PLATE, STOPPER

447-15531-00-00

1
Out of stock

14

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

15

WASHER, WAVE (17W)

90206-12074-00

—

$6.98

In stock

16

COLLAR

90387-12093-00

1
Out of stock

17

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

18

PLATE, IDLE GEAR

306-15532-00-00

1
Out of stock

19

ABSORBER

306-15571-00-00

1
Out of stock

20

GEAR, IDLER 1

(306-15512-00-00)

1
Out of stock

21

GEAR, IDLER 2

306-15517-00-00

1
Out of stock

22

SHAFT 1

1AE-15521-00-00

1
Out of stock

23

COVER, CRANKCASE 3

(306-15431-00-00)

1
Out of stock

24

GASKET,GR CRNK CVR

306-15452-10-00

1
Out of stock

25

PIN, DOWEL (278)

93604-08071-00

—

$6.17

In stock

26

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

27

OIL SEAL (34X46X10.5-306)

93102-34095-00

—

$20.34

In stock

28

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock
