1972 Yamaha XS2 (XS2) Clutch Diagram

← All diagrams

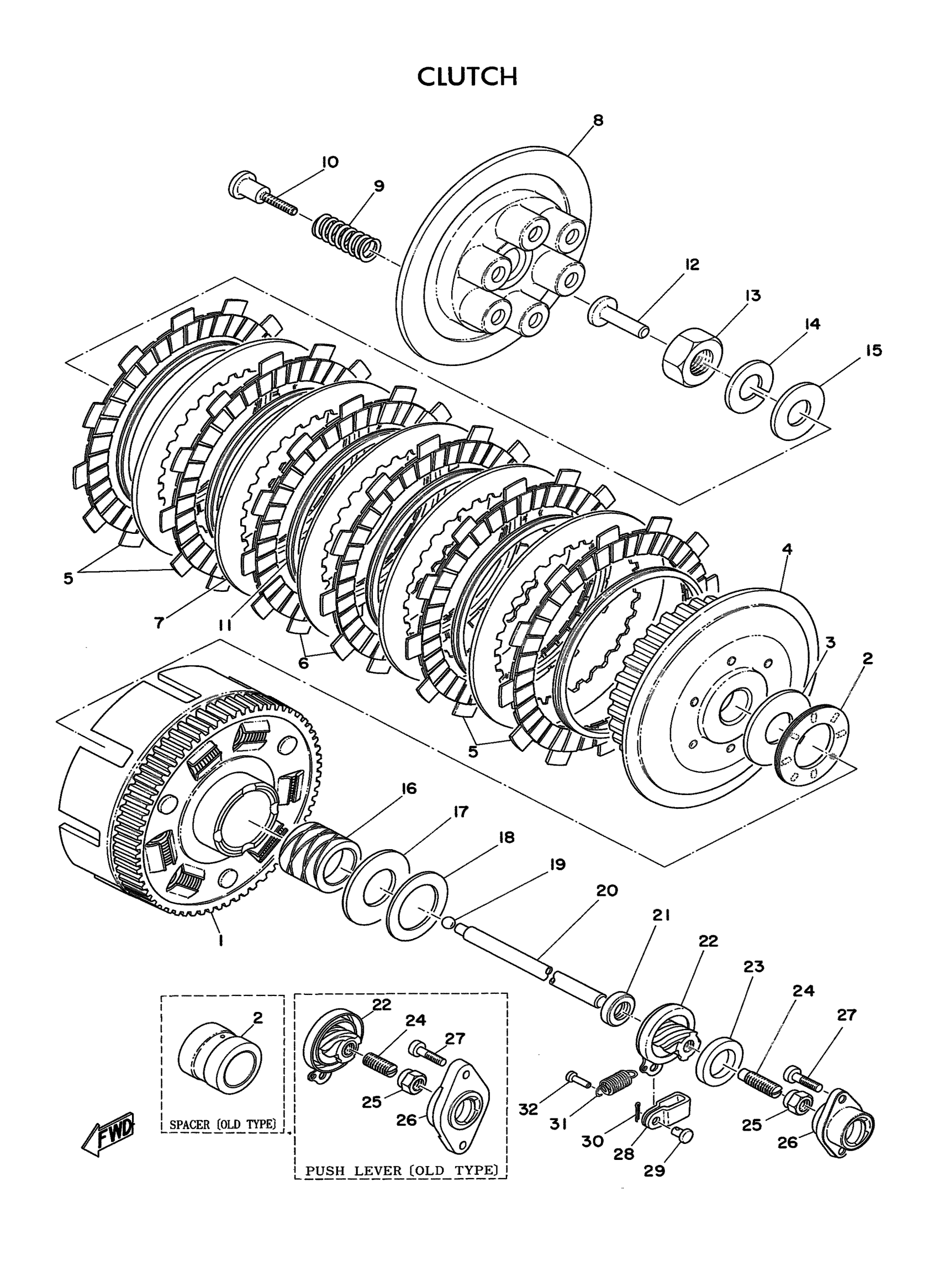

Find the part on the Clutch diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha XS2 (XS2) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRVN GEAR

(256-16150-02-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(256-16301-60-00)

1
Out of stock

2

BEARING, FLAT #41

93341-23504-00

1
Out of stock

3

PLATE, THRUST (2)

170-16164-00-00

1
Out of stock

4

. BOSS, CLUTCH

(256-16371-09-00)

1
Out of stock

5

PLATE, FRICTION

341-16321-09-00

1
Out of stock

6

PLATE, FRICTION

341-16321-09-00

1
Out of stock

7

.. PLATE, CLUTCH 2

256-16325-00-00

1
Out of stock

8

. PLATE, PRESSURE 1

(256-16351-00-00)

1
Out of stock

9

1

$3.88

In stock

10

SCREW (584)

90149-06102-00

—

$8.14

In stock

11

. RING, CUSHION

256-16367-00-00

1
Out of stock

12

ROD, PUSH 1

256-16356-00-00

1
Out of stock

13

NUT

90170-18089-00

1
Out of stock

14

WASHER(N15)

92907-18100-00

1

$7.09

In stock

15

WASHER (6E5)

92990-18200-00

1

$2.23

In stock

16

SPACER

90560-25131-00

1
Out of stock

17

PLATE, THRUST (2)

170-16164-00-00

1
Out of stock

18

WASHER, PLATE(1FK)

90201-256K6-00

—

$3.49

In stock

19

BALL

93505-16006-00

—

$2.22

In stock

20

ROD, PUSH 2

256-16357-00-00

1
Out of stock

21

OIL SEAL (3G1)

93102-08206-00

—

$10.03

In stock

21

OIL SEAL (3G1)

93102-08206-00

—

$10.03

In stock

22

PUSH LEVER ASSEMBLY

1T3-16340-00-00

1
Out of stock

22

PUSH LEVER ASSEMBLY

(256-16340-09-00)

1
Out of stock

23

SEAL, DUST

214-16347-01-00

1
Out of stock

24

BOLT SET 256163430100

90113-08021-00

—
Out of stock

25

NUT

90179-08179-00

—
Out of stock

26

HOUSING, PUSH SCREW

371-16396-00-00

1
Out of stock

27

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

28

JOINT

214-16389-00-00

—
Out of stock

29

PIN W/HOLE 214163790000

90240-06005-00

—

$10.66

In stock

30

. PIN, COTTER

91401-10015-00

1
Out of stock

31

SPRING, TENSION

90506-10023-00

1
Out of stock

32

HOOK, SPRING

132-16346-00-00

—
Out of stock
