1972 Yamaha XS2 (XS2) Shifter A Diagram

← All diagrams

Find the part on the Shifter A diagram for your 1972 Yamaha XS2 (XS2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

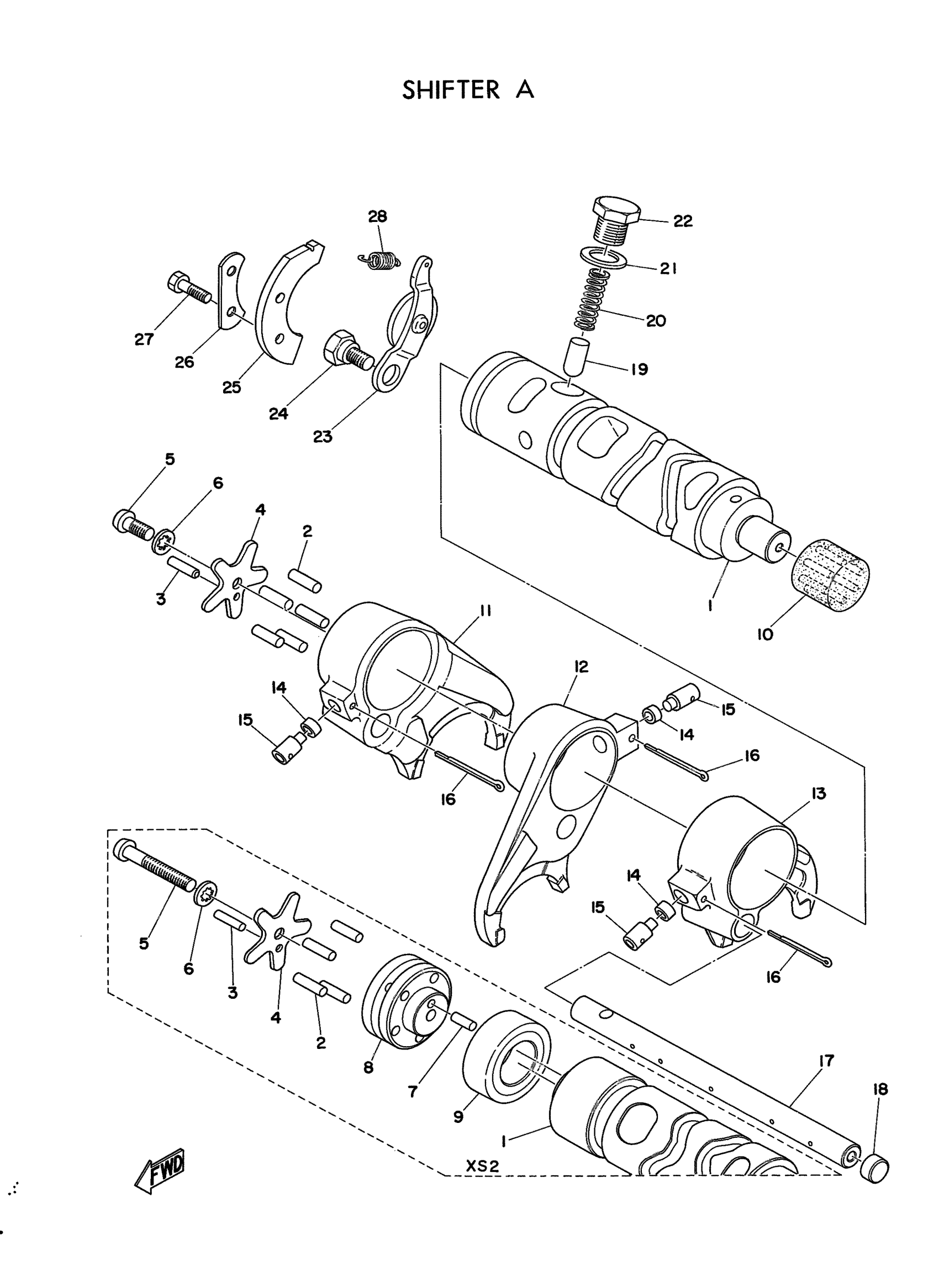

1972 Yamaha XS2 (XS2) Shifter A Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

(256-18540-00-00)

1
Out of stock

1

SHIFT CAM ASSEMBLY

306-18540-00-00

1
Out of stock

1

SPROCKET

NOTAVAILABLE

1
Out of stock

2

PIN,DOWEL (137)

93604-14012-00

1

$1.88

In stock

2

PIN,DOWEL (137)

93604-14012-00

1

$1.88

In stock

3

PIN, DOWEL

93603-14026-00

1
Out of stock

4

SCREW, STPPR PLATE

(168-18563-01-00)

1
Out of stock

5

SCREW, PAN

98507-05035-00

1

$6.69

In stock

5

SCREW, PAN HEAD

98580-05545-00

1

$5.86

In stock

5

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

6

WASHER, TOOTH

92990-05300-00

—
Out of stock

7

PIN,DOWEL (603)

93604-10011-00

1

$5.10

In stock

8

. CAM, SHIFT 2

(306-18546-00-00)

1
Out of stock

9

. BEARING, CYLINDER#18

(93318-32003-00)

1
Out of stock

10

BEARING, CYLINDER.#20

93320-31501-00

1
Out of stock

11

FORK, SHIFT 3

256-18513-00-00

1
Out of stock

12

FORK, SHIFT 2

256-18512-00-00

1
Out of stock

13

FORK, SHIFT 1

256-18511-00-00

1
Out of stock

14

PIN,SPEC'L SHAPE

90249-05035-00

1
Out of stock

15

PIN, COTTER

(168-18553-00-00)

1
Out of stock

15

PIN, SPEC''L SHAPE

(90249-05041-00)

1
Out of stock

15

PIN, SPEC''L SHAPE (256-18552-00) 003

90249-08001-00

1
Out of stock

15

PIN, COTTER(6L5)

91490-25030-00

—

$2.85

In stock

17

BAR, SHIF FRK GDE 1

256-18531-00-00

1
Out of stock

18

PLUG, BLIND

90334-10006-00

1
Out of stock

18

PLUG, STRAIGHT (256-15439-00)

90334-10007-00

1
Out of stock

19

STOPPER, CAM

137-18547-00-00

1
Out of stock

20

SPRING, COMPRESSION

(90501-09051-00)

1
Out of stock

20

SPRING, COMPRESSION

90501-10068-00

1
Out of stock

21

GASKET

90430-16047-00

1
Out of stock

22

BOLT

90109-16392-00

1
Out of stock

23

STOPPER LEVER ASSEMBLY

341-18140-00-00

1
Out of stock

24

BOLT

90109-06181-00

1
Out of stock

25

PLATE, STOPPER 2

256-18562-00-00

1
Out of stock

26

PLATE, LOCK SCREW

256-18565-00-00

1
Out of stock

27

BOLT

90101-06091-00

1
Out of stock

28

SPRING, TENSION

90506-10022-00

1
Out of stock
