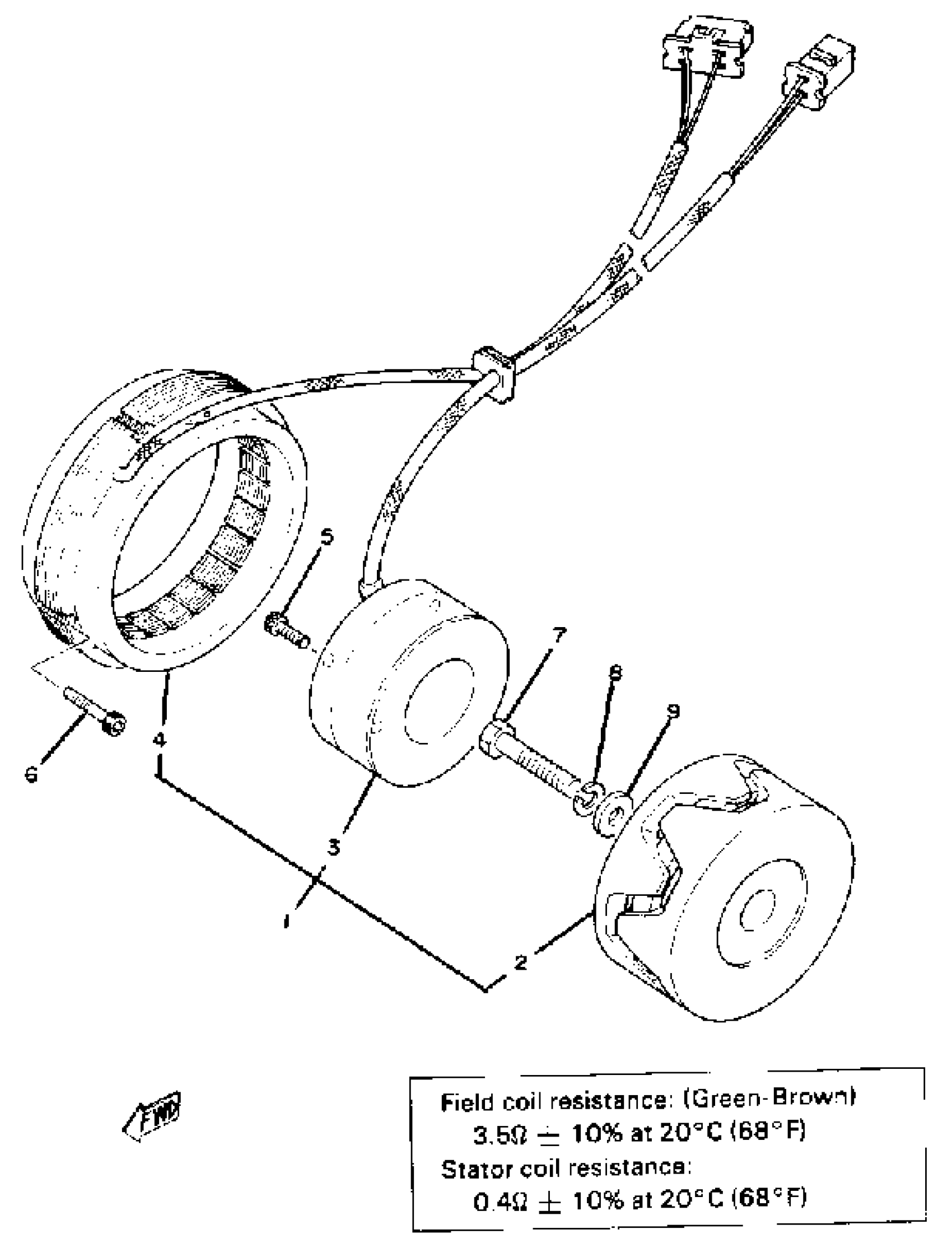

Yamaha XS1100E (XS1100) 1978 A - C - GENERATOR Diagram

#

Description

Price

1

AC GENERATOR ASSEMBLY

2H7-81600-10-00

Unavailable

2

ROTOR ASSEMBLY

(2H7-81650-10-00)

Unavailable

3

. FIELD COIL ASSEMBLY

2H7-81660-10-00

Unavailable

4

. STATOR ASSEMBLY

2H7-81610-10-00

Unavailable

5

BOLT, SOCKET

91314-06016-00

$5.75

6

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

7

BOLT (341)

90101-10188-00

$7.61

8

YBS67-10 WASHER, SPRING

92990-10100-00

$2.45

9

WASHER, PLATE(52H)

90201-102J5-00

Unavailable
