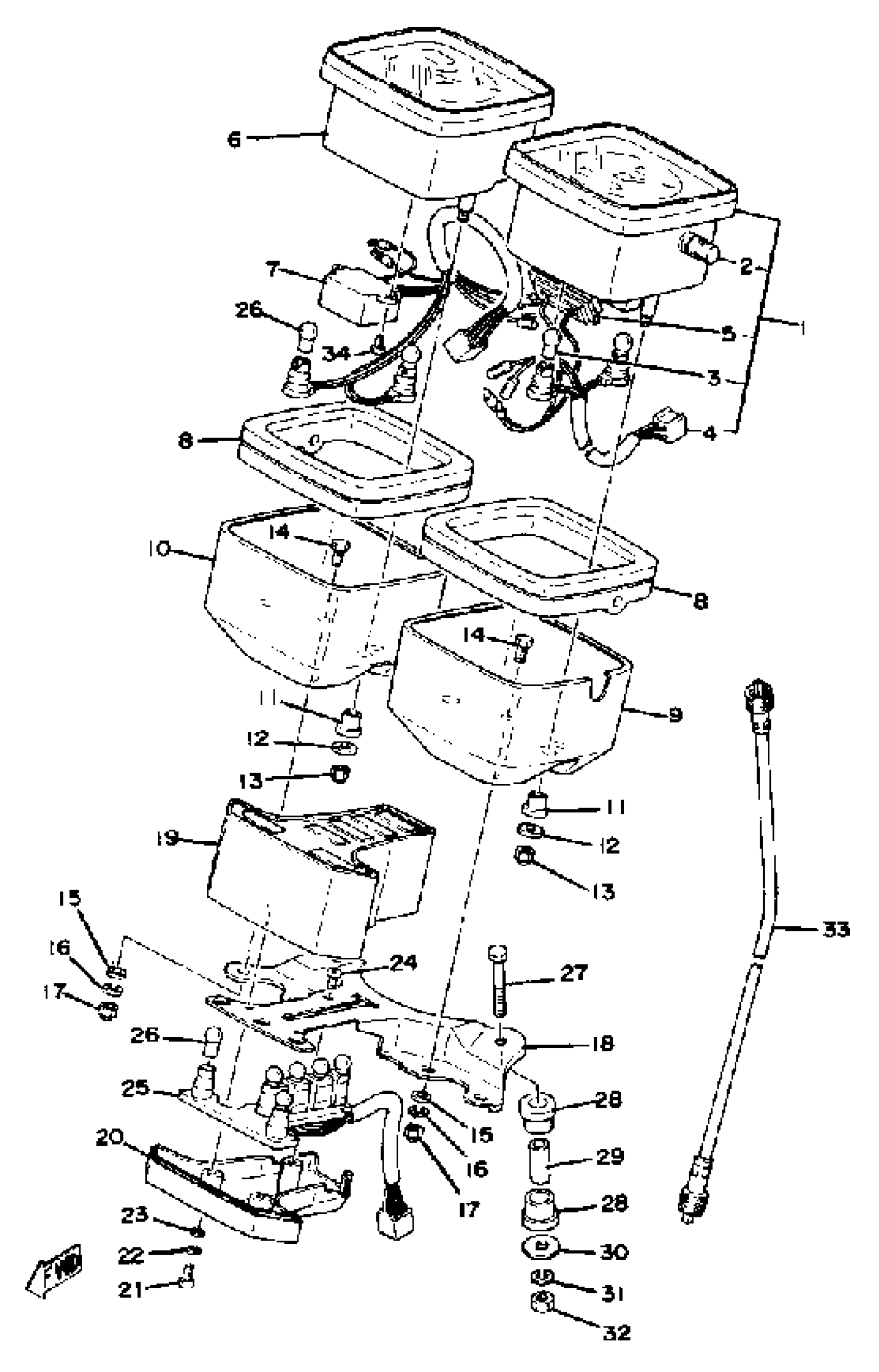

Find the part on the Speedometer-Tachometer diagram for your 1978 Yamaha XS1100 (XS1100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha XS1100 (XS1100E) Speedometer-Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

2H7-83570-A0-00

1
Out of stock

2

. KNOB, TRIP METER

1E6-83578-60-00

1
Out of stock

3

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

4

SOCKET, METER

(2H7-83536-00-00)

1
Out of stock

5

. SENDER

2H7-83556-00-00

1
Out of stock

6

TACHOMETER ASSEMBLY

2H7-83540-01-00

1
Out of stock

7

REGULATOR, FL METER

2H7-85755-01-00

1
Out of stock

8

DAMPER

2H7-83513-01-00

1
Out of stock

9

COVER, SPEEDOMETER

2H7-83507-00-00

1
Out of stock

10

COVER, TACHOMETER

2H7-83508-00-00

1
Out of stock

11

DAMPER, METER COVER FITTING

584-83523-00-00

—
Out of stock

12

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

13

NUT (CROWN)

95303-05800-00

1
Out of stock

14

BOLT

584-83546-00-00

1
Out of stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

NUT (J17)

95380-06800-00

—

$6.74

In stock

18

BRACKET, METER

2H7-83519-00-00

1
Out of stock

19

PILOT BOX, UPPER

2H9-83568-00-00

1
Out of stock

20

PILOT BOX, LOWER

(2H7-83569-00-00)

1
Out of stock

21

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

22

WASHER(6TA)

92907-04100-00

—

$5.98

In stock

23

WASHER(JF2)

92907-04600-00

—

$1.23

In stock

24

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

25

SOCKET CORD ASSEMBLY

2H7-83509-01-00

1
Out of stock

26

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

27

BOLT(8BC)

97017-06040-00

—
Out of stock

28

DAMPER, METER BRACKET

584-83541-00-00

—
Out of stock

29

COLLAR (877)

90387-06249-00

—
Out of stock

30

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

31

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

32

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

33

SPEEDOMETER CABLE ASSY

16M-83550-01-00

—
Out of stock

34

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock
