1978 Yamaha XS1100 (XS1100E) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1978 Yamaha XS1100 (XS1100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

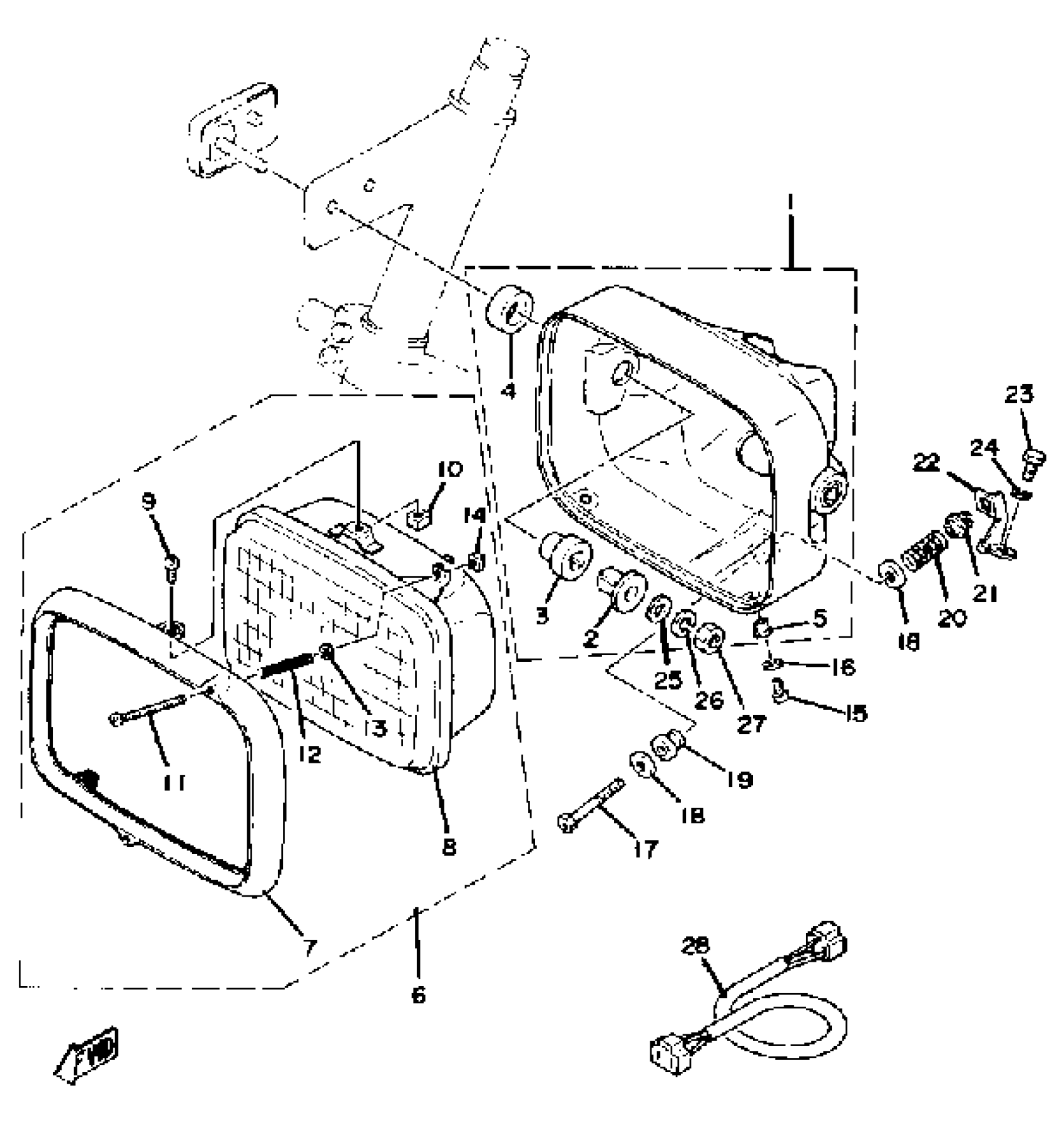

1978 Yamaha XS1100 (XS1100E) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY

2H7-84330-00-98

1
Out of stock

2

. COLLAR, BODY FTNG

2H7-84338-00-00

1
Out of stock

3

. DAMPER, HEADLIGHT 1

2H7-84366-00-00

1
Out of stock

4

. DAMPER, HEADLIGHT 2

2H7-84367-00-00

1
Out of stock

5

. SPACER

1L9-84327-60-00

1
Out of stock

6

TOOL

UNA-VAILA-BL-EI

1
Out of stock

7

. RIM, HEADLIGHT

2H7-84315-00-00

1
Out of stock

8

. LENS ASSEMBLY

2H7-84320-60-00

1
Out of stock

9

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

10

. NUT

2H7-84317-00-00

1
Out of stock

11

SCREW, RIM ADJUSTING

4KG-84331-00-00

1
Out of stock

12

SPRING,SCREW

1U4-84332-40-00

1
Out of stock

13

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

14

NUT, ADJUSTING

5PX-84334-00-00

1

$6.38

In stock

15

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

16

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

17

BOLT, SPECIAL

2H7-84337-00-00

1
Out of stock

18

WASHER, SPECIAL

2H7-84327-00-00

1
Out of stock

19

GROMMET

2H7-84354-00-00

1
Out of stock

20

SPRING,SCREW

1U4-84332-40-00

1
Out of stock

21

NUT, ADJUSTING

2H7-84334-00-00

1
Out of stock

22

STAY, HEADLIGHT 1

2H7-84318-00-00

1
Out of stock

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

26

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

27

NUT(6L2)

95333-08600-00

—

$3.20

In stock

28

CORD, HEADLIGHT

2H7-84359-00-00

1
Out of stock
