1978 Yamaha XS1100 (XS1100E) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1978 Yamaha XS1100 (XS1100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

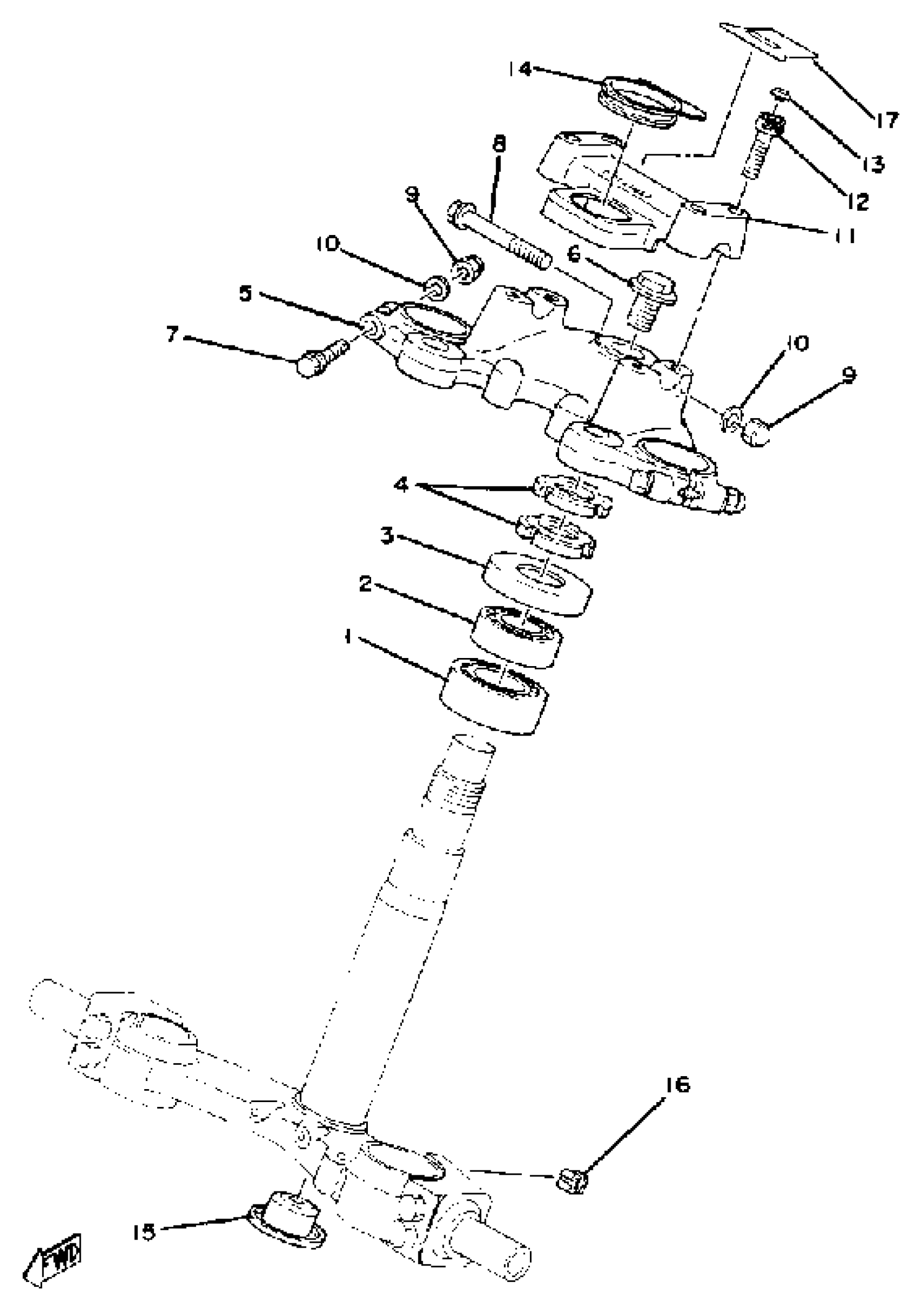

1978 Yamaha XS1100 (XS1100E) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$60.13

In stock

2

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

3

COVER, BALL RACE 1

1J7-23415-00-00

1

$6.43

In stock

4

NUT

90179-25004-00

1

$20.78

In stock

5

CROWN, HANDLE

2H7-23435-00-98

1
Out of stock

6

BOLT (2A2)

90105-14102-00

1

$5.14

In stock

7

BOLT, FLANGE

95817-08050-00

1

$3.15

In stock

8

BOLT, FLANGE

95814-08065-00

1

$3.54

In stock

9

NUT, CROWN

95303-08800-00

1

$7.52

In stock

10

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

11

HOLDER, HANDLE UPR

2H7-23441-00-98

1
Out of stock

12

BOLT, SOCKET

91317-08030-00

1

$6.17

In stock

13

CAP, BOLT (371,447)

341-23469-00-00

1

$8.55

In stock

14

GROMMET

(90480-34225-00)

1
Out of stock

15

PLUG, SPEC''L SHAPE

(90338-25074-00)

1
Out of stock

16

GROMMET

(2H7-23497-00-00)

1
Out of stock

17

EMBLEM

2H7-23395-00-00

1
Out of stock
