1978 Yamaha XS1100 (XS1100E) Handle-Wire Diagram

← All diagrams

Find the part on the Handle-Wire diagram for your 1978 Yamaha XS1100 (XS1100E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

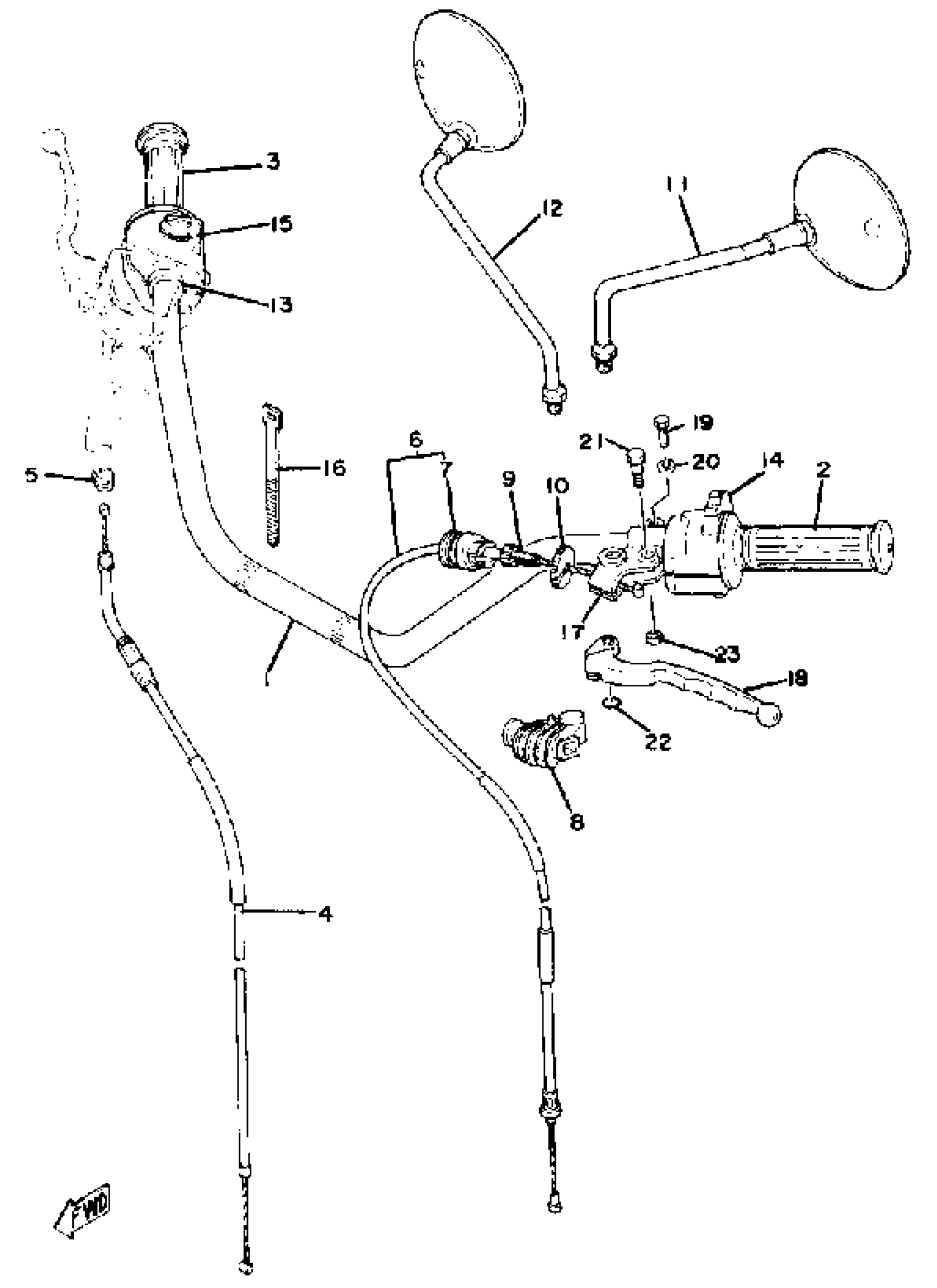

1978 Yamaha XS1100 (XS1100E) Handle-Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

4H9-26111-00-00

1
Out of stock

2

GRIP LH

2H7-26241-01-00

1
Out of stock

3

GRIP ASSY

2H7-26240-01-00

1
Out of stock

4

CABLE, THROTTLE 1

2H7-26311-01-00

1
Out of stock

5

HOLDER,

584-26393-02-00

—

$6.02

In stock

6

CABLE, CLUTCH

3H3-26335-00-00

1
Out of stock

7

BOOT, WIRE

1E6-26342-00-00

1

$26.82

In stock

8

COVER, LEVER

1E6-26372-00-00

1

$19.91

In stock

9

BOLT

90123-08002-00

1

$8.93

In stock

10

NUT

90179-08030-00

1

$3.78

In stock

11

MIRROR ASSEMBLY LH

4G0-26290-10-00

1
Out of stock

12

MIRROR ASSEMBLY RH

2H7-26290-00-00

1
Out of stock

13

COLLAR (2H7)

90387-22660-00

1

$7.75

In stock

14

SWITCH, HANDLE 3

3H3-83973-00-98

1
Out of stock

15

SWITCH, HANDLE 3

1T5-83963-01-98

1
Out of stock

16

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

17

—

$24.57

In stock

18

LEVER L

2H0-83912-31-00

—

$26.37

In stock

19

BOLT, HEXAGON

97013-06022-00

—

$1.20

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

BOLT(1FG)

90109-06798-00

—
Out of stock

22

O-RING (2H7)

93210-11368-00

—

$4.80

In stock

23

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock
