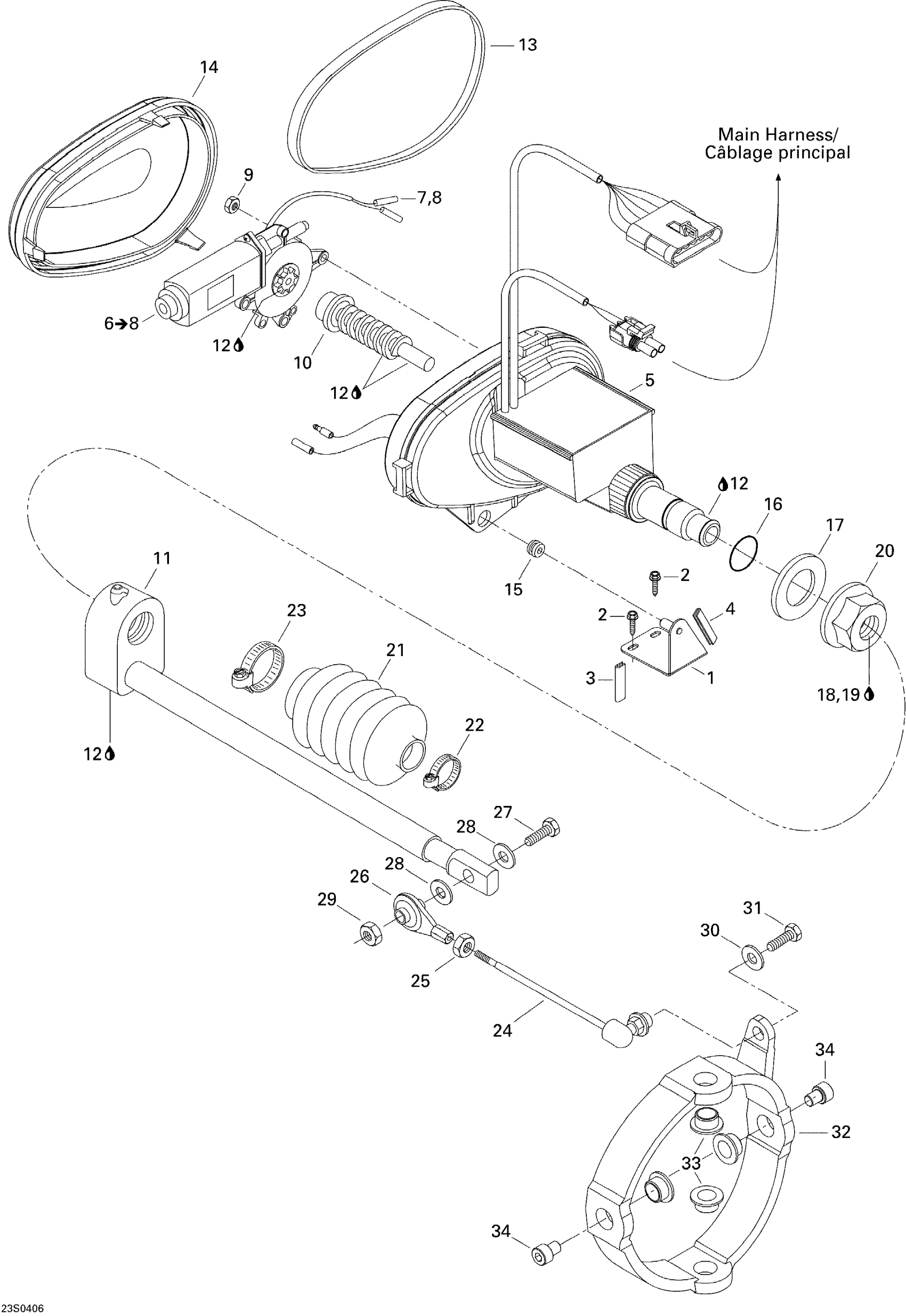

Sea-doo XP DI, 2004 Trim, Electrical Diagram

#

Description
Price

1

V.T.S. SUPPORT ASSY - Call your local BRP dealership

292000250

Unavailable

2

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

3

Was 271000110 Protection Trim

219704353

Unavailable

4

Was 271000110 Protection Trim

219704353

Unavailable

5

V.T.S. HOUSING ASSY - Call your local BRP dealership | Includes 27 to 36

278001606

Unavailable

6

Windshield Motor

278002579

Unavailable

7

Insulation Sheath

278000231

Unavailable

8

Male Terminal

278000230

Unavailable

9

Hex. Elastic Stop Nut M6

232561600

Unavailable

10

Worm Screw

278000428

Unavailable

11

Sliding Block Ass’y

278001698

Unavailable

12

Synthetic Grease, 400 G

293550010

Unavailable

13

GASKET - Call your local BRP dealership

293200027

Unavailable

14

V.T.S. COVER - Call your local BRP dealership

278000595

Unavailable

15

GROMMET - Call your local BRP dealership

293720015

Unavailable

16

O-Ring

293300044

Unavailable

17

SEAL WASHER - Call your local BRP dealership

293830027

Unavailable

18

Was 293800041 Loctite Primer 7649

219704458

Unavailable

19

Loctite 243, 10 ml

293800060

Unavailable

20

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

21

Protector Hose

271000459

Unavailable

22

Clamp

293650082

Unavailable

23

CLAMP - Call your local BRP dealership

293650083

Unavailable

24

ROD - Call your local BRP dealership

271001134

Unavailable

25

HEX. NUT 12-28 - Call your local BRP dealership

250100015

Unavailable

26

BALL JOINT - Call your local BRP dealership

277000918

Unavailable

27

Hex. Screw M6 X 35

207063560

Unavailable

28

Stainless Flat Washer M6

234061600

Unavailable

29

Hex. Elastic Stop Nut M6

232561600

Unavailable

30

Flat Washer 5 mm, Stainless

234052600

Unavailable

31

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

32

Trim Ring, Black

266000013

Unavailable

33

Venturi Bushing

293900007

Unavailable

34

Socket Head Screw M8 X 10, Scotch Grip

211000127

Unavailable
