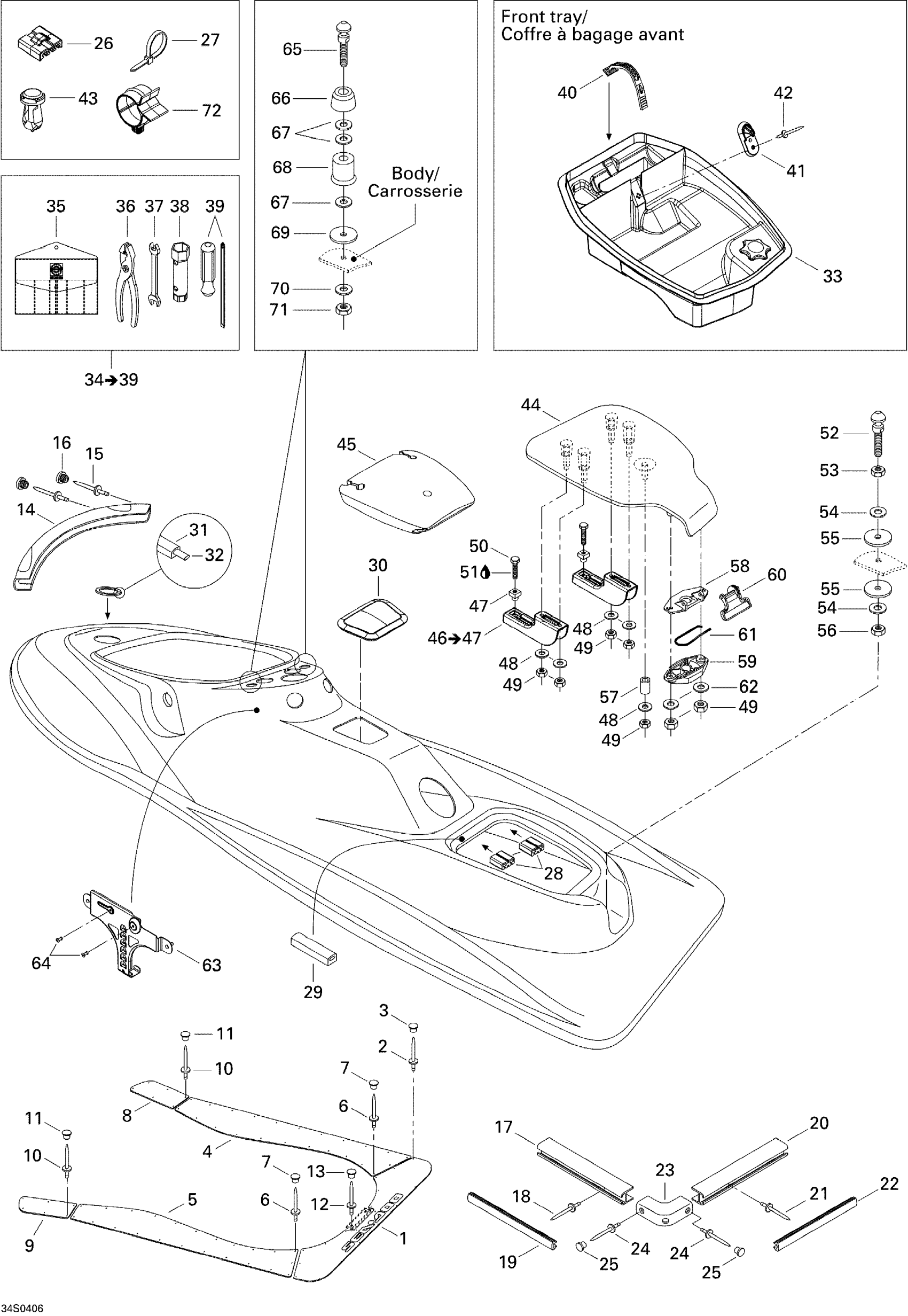

Sea-doo XP DI, 2004 Body Diagram
#
1
Rear Carpet
291001009
Unavailable
2
Rivet 1/8"
293150016
Unavailable
3
Black, Snap Cap
293000014
Unavailable
4
RH Center Carpet
291001254
Unavailable
5
LH Center Carpet
291001255
Unavailable
6
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
7
Black, Snap Cap
293000014
Unavailable
8
RH Front Carpet
291001005
Unavailable
9
LH Front Carpet
291001006
Unavailable
10
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
11
Black, Snap Cap
293000014
Unavailable
12
Rivet 1/8"
293150016
Unavailable
13
Black, Snap Cap
293000014
Unavailable
14
BUMPER NOSE - Call your local BRP dealership
291000801
Unavailable
15
Pop Rivet 3/16"
293150014
Unavailable
16
Bumper Plug, Black
291000339
Unavailable
17
Black, Side Bumper
204050270
Unavailable
18
Pop Rivet 3/16"
293150005
Unavailable
19
Side Bumper Trim, Viper Red
291001979
Unavailable
20
REAR BUMPER, BLACK - Call your local BRP dealership
291002242
Unavailable
21
Pop Rivet 3/16"
293150005
Unavailable
22
Rear Bumper Trim, Viper Red
291001980
Unavailable
23
Bumper Corner
291002244
Unavailable
24
Pop Rivet 3/16"
293150013
Unavailable
25
Bumper Plug, Black
291000339
Unavailable
26
Tie-Rap Mount
293750025
Unavailable
27
Tie Wrap 368 mm
293750008
Unavailable
28
Spacer
291000723
Unavailable
29
Was 293200017 Neoprene Seal
219704365
Unavailable
30
Hull Plug
292000926
Unavailable
31
Was 293200017 Neoprene Seal
219704365
Unavailable
32
Vinyl Tubing, Low Temp 3000Mm Long
219704424
Unavailable
33
Front Tray
269501245
Unavailable
34
Owner Tool Kit Ass'y | Includes 68 to 72
294000680
Unavailable
35
Not Available As Spare Part - Friction Washer
Unavailable
36
Not Available As Spare Part - Friction Washer
Unavailable
37
FORK WRENCH - Call your local BRP dealership
529017300
Unavailable
38
Not Available As Spare Part - Friction Washer
Unavailable
39
DRIVER SCREW - Call your local BRP dealership
529019200
Unavailable
40
Strap
269502417
Unavailable
41
Hook
269500521
Unavailable
42
Avdel Rivet
293150027
Unavailable
43
Tuflok Plastic Rivet
293150230
Unavailable
44
REAR ACCESS COVER - Call your local BRP dealership
269501153
Unavailable
45
Float
269500417
Unavailable
46
Base Keeper | Includes 46 to 47
269500575
Unavailable
47
Square Nut M8
211100033
Unavailable
48
Flat Washer M6, Stainless
234062600
Unavailable
49
Hex. Elastic Stop Nut M6
232561600
Unavailable
50
SCREW-SPECIAL M8 - Call your local BRP dealership
211000047
Unavailable
51
Loctite 243, 10 ml
293800060
Unavailable
52
LATCH STUD - Call your local BRP dealership
291000690
Unavailable
53
Hex. Jam Nut M10
232100600
Unavailable
54
Flat Washer 10 mm, Stainless
234002600
Unavailable
55
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
56
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
57
SPACER - Call your local BRP dealership
291000177
Unavailable
58
Latch Ass'y
269700109
Unavailable
59
Latch Ass'y
269700109
Unavailable
60
Latch Ass'y
269700109
Unavailable
61
Latch Spring
269700017
Unavailable
62
Stainless Flat Washer M6
234061600
Unavailable
63
Module Support Ass’Y
291001927
Unavailable
64
Pop Rivet 3/16"
293150043
Unavailable
65
Latch Stud
291001021
Unavailable
66
Rubber Pad
293830025
Unavailable
67
Flat Washer 10 mm, Stainless
234002600
Unavailable
68
Spacer Ring
291001089
Unavailable
69
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
70
Flat Washer 10 mm, Stainless
234002600
Unavailable
71
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
72
Retainer
275500590
Unavailable
